Wholesale Original 27 Inch Lcd Screen DV270FHB-P20 Resolution 1920x1080 Brightness LVDS Interface LCD Module
Wholesale Original 27 Inch Lcd Screen DV270FHB-P20 Resolution 1920x1080 Brightness LVDS Interface LCD Module
Wholesale Original 27 Inch Lcd Screen DV270FHB-P20 Resolution 1920x1080 Brightness LVDS Interface LCD Module
Wholesale Original 27 Inch Lcd Screen DV270FHB-P20 Resolution 1920x1080 Brightness LVDS Interface LCD Module
Wholesale Original 27 Inch Lcd Screen DV270FHB-P20 Resolution 1920x1080 Brightness LVDS Interface LCD Module
Wholesale Original 27 Inch Lcd Screen DV270FHB-P20 Resolution 1920x1080 Brightness LVDS Interface LCD Module
Wholesale Original 27 Inch Lcd Screen DV270FHB-P20 Resolution 1920x1080 Brightness LVDS Interface LCD Module
Wholesale Original 27 Inch Lcd Screen DV270FHB-P20 Resolution 1920x1080 Brightness LVDS Interface LCD Module
Specifications
Model Number :
DV270FHB-P20

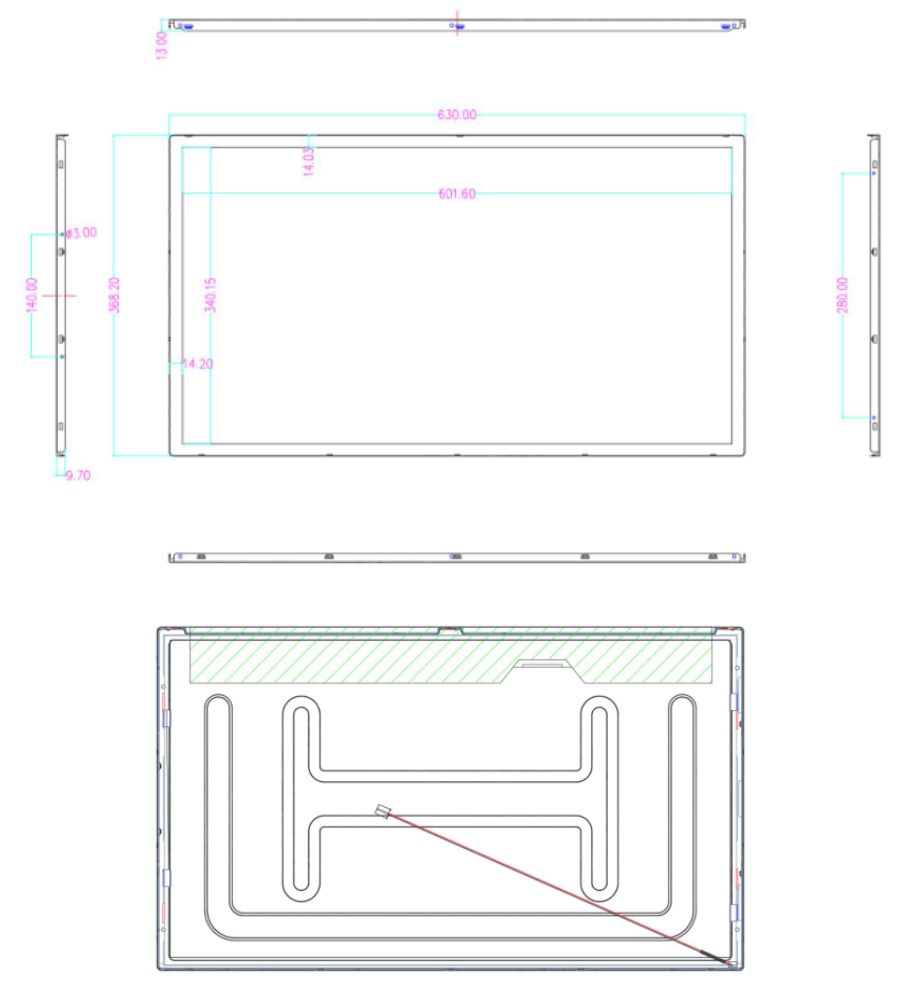

Dimensional outline :
607.048(H)x346.642(V)x1.32(Depth) mm
MOQ :
1 piece
Packaging Details :
50 cm * 40 cm * 16 cm and above
interface :
LVDS
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P
Display Colors :
16.7M
Active area :
597.888(H)x336.312(V) mm
Brand Name :
BOE
Size (inch) :
27 inch
Surface Treatment :
Haze 25%, 3H
Place of Origin :
Shenzhen, China
Price :
Please contact us for latest price
Viewing angle :
89/89/89/89°IPS
Certification :
RoHS
Delivery Time :
5-8 working days
Resolution :
1920x1080
Description

Parameter:

Product name:

27 inch Color TFT LCD Module

Model:

DV270FHB-P20

Number of pixels

1920(H)x1080 (V)

Interface

LVDS

Display Colors

16.7M

Dimensional outline

607.048(H)x346.642(V)x1.32(Depth) mm

Weight

656.5g

Active area

597.888(H)x336.312(V) mm

Pixel pitch

0.3114 (H)x0.3114(V) mm

Pixel arrangement

RGB Vertical stripe

Display mode

Normally Black

Possible Display Type

Landscape and Portrait Enable

Open Cell Transmittance

5.1 (typ.)%

Power Consumption

3.2 W

Surface Treatment

Haze 25%, 3H

Viewing angle:

89/89/89/89°IPS

Storage conditions:

Temperature: 18°C–24°C; Humidity: 50%–70% RH

Features

1. LVDS Interface with 2 pixel / clock

2. 8-bit (6-bit+FRC) color depth, display 16.7M colors

3. Color Gamut 72%@NTSC(CIE 1931)

4. High luminance and contrast ratio, low reflection and wide viewing angle

5. DE (Data Enable) only

6. RoHS/Halogen Free

7. Gamma Correction

8. Reverse type
