Specifications
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P

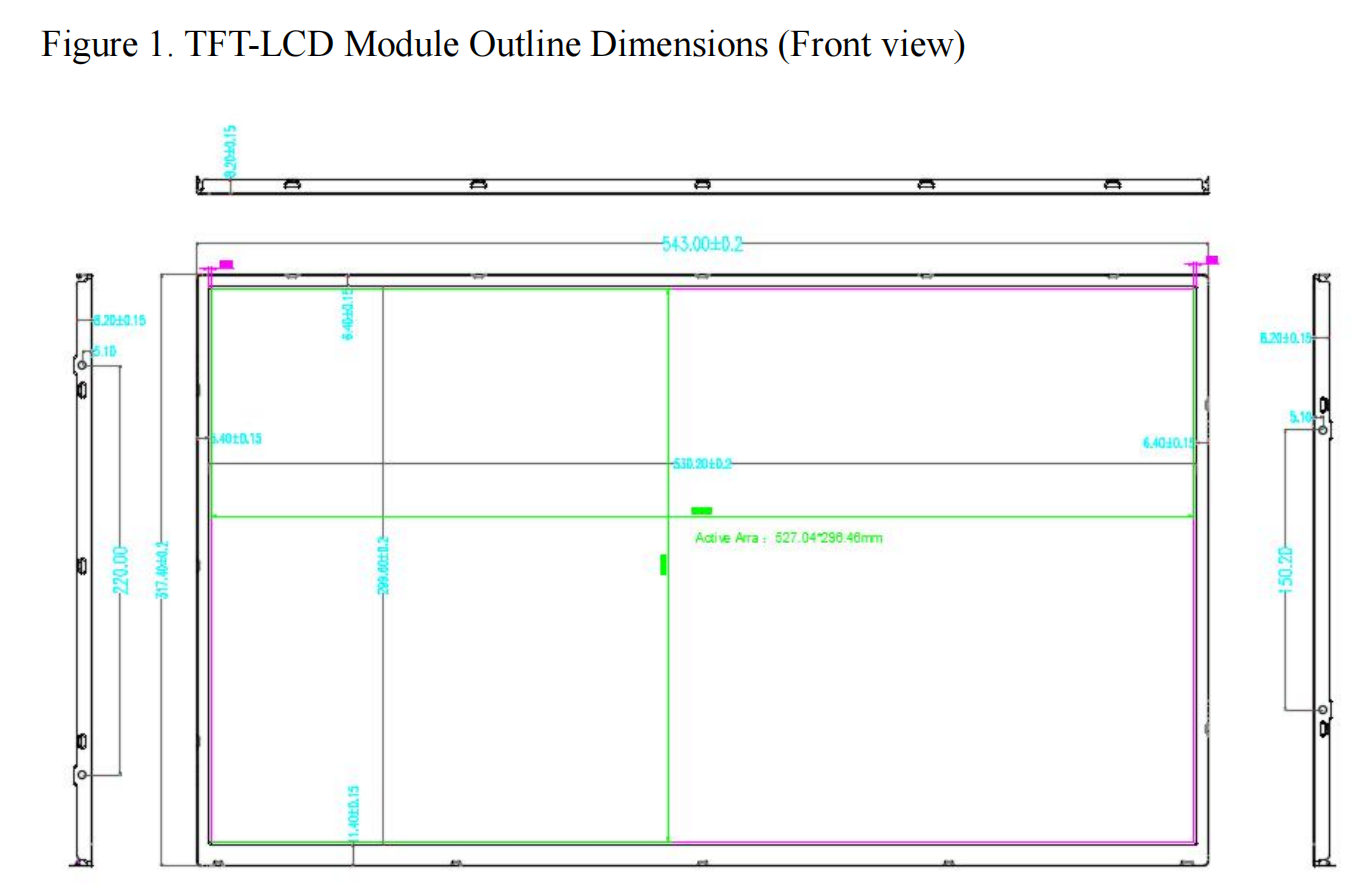

Dimensional outline :
543.08(H)x316.72(V)x10.2(Depth) mm
Brand Name :
BOE
Size (inch) :
23.8 inch
Model Number :
MV238FHB-N63
Resolution :
1920x1080
MOQ :
1 piece
Packaging Details :
50 cm * 40 cm * 16 cm and above
brightness (cd/㎡) :
250-300 nit
Place of Origin :
Shenzhen, China
Active area :
527.04x296.46mm
Price :
Please contact us for latest price
interface :
LVDS
Delivery Time :
5-8 working days
Certification :
RoHS
Display Colors :
16.7M
Description

Parameter:

Product name:

23.8 inch TFT LCD Module

Model:

MV238FHB-N63

Number of pixels

1920(H)x1080 (V)

Interface

LVDS

Active area

527.04x296.46mm

Display Colors

16.7M

BLU Brightncs

250-300nit

Dimensional outline

543.08(H)x316.72(V)x10.2(Depth) mm

Back-light

1-LED Lighting Bar type

Pixel pitch

0.2745(H)x0.2745(V) mm

Pixel arrangement

RGB Vertical stripe

Display mode

Transmissive Mode, Normally Black

Surface Treatment

SR16, 3H hard coating, Haze : 25

Viewing angle:

89/89/89/89°IPS

Storage conditions:

Temperature: 18°C–24°C; Humidity: 50%–70% RH

Features

1. LVDS Interface with 2 pixel / clock

2. 6-bit (Hi-FRC) color depth, display 16.7M colors

3. Color Gamut 72%@NTSC(CIE 1931)

4. High luminance and contrast ratio, low reflection and wide viewing angle

5. DE (Data Enable) only

6. RoHS/Halogen Free

7. Gamma Correction

8. Reverse type

Application

1. Desktop Type of PC & Workstation Use

2. Slim-Size Display for Stand-alone Monitor

3. Display Terminals for Control System

4. Monitors for Process Controller
