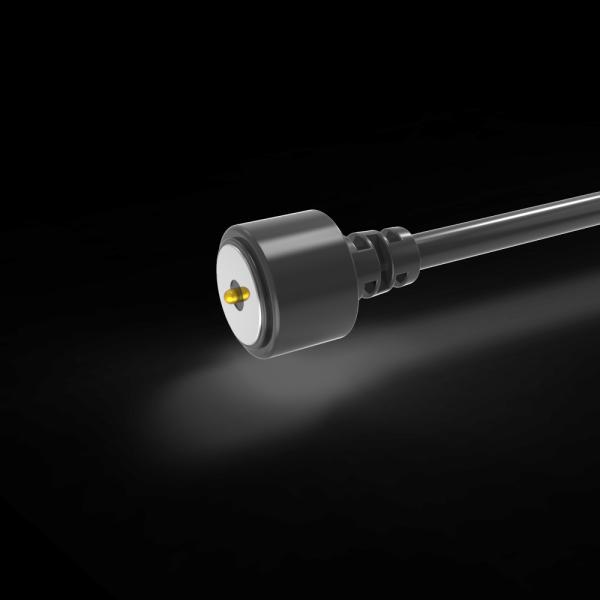

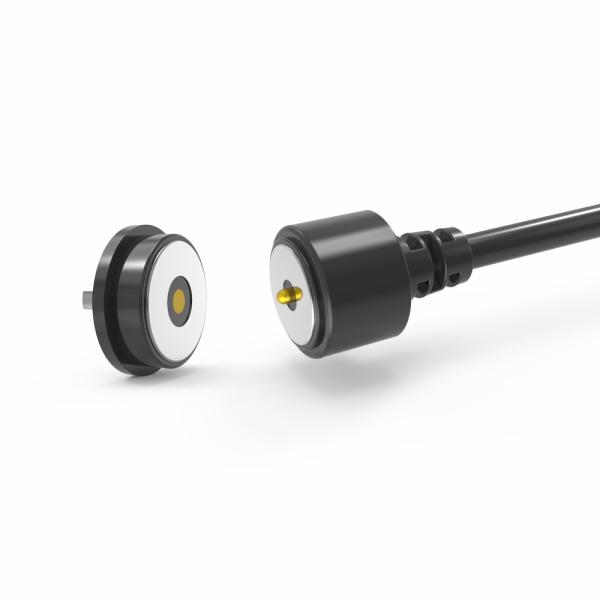

Round wmagnetic power cable connectors for guard tour patrol device, magnetic cable connector have the advantage of automatic adsorption, easy to operation. The pogo pin have a good electric conductivity, not easily corroded in a severe environment.

UPE is a professional manufacturer of customized magnetic connector, our design always meet different needs of customers, the magnetic connector is widely used for Medical equipment, wireless equipment,Smart device and smart home,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment and so on.

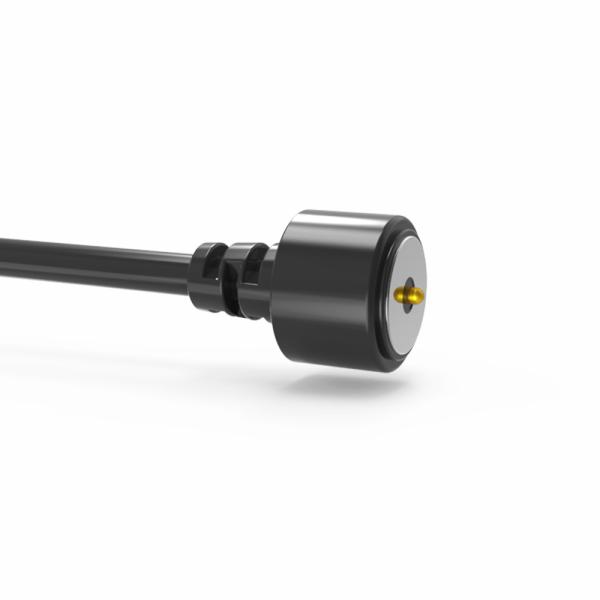

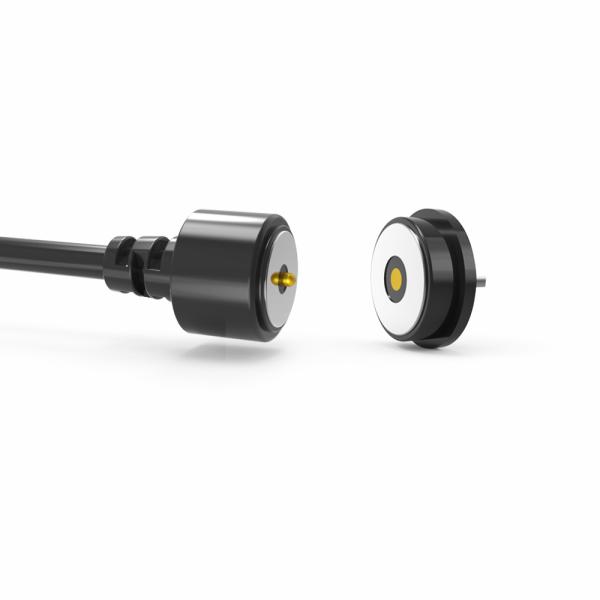

Male magnetic cable connector:

...Materials:
Pogo Pin: Brass(Plunger&Barrel plating 5U" Min Au over 60~100U"Ni);
Housing: black HTN+30%GF UL94 V-0;
Magnet:NdFeB N52 Plating Ni;
Cable:black OD 3.5*2C(TC65*0.08),
Wire Jacket: black TPE 80A .
Connector Jacket: black TPE 80A..
...Mechanical:
Spring force: 70g±20g,at 1.0mm working storke.
Full storke:1.2mm.
Mechanical life:10000cycle Min..
...Electrical:
Voltage:12 V.
Current: 3A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test: 48 H.

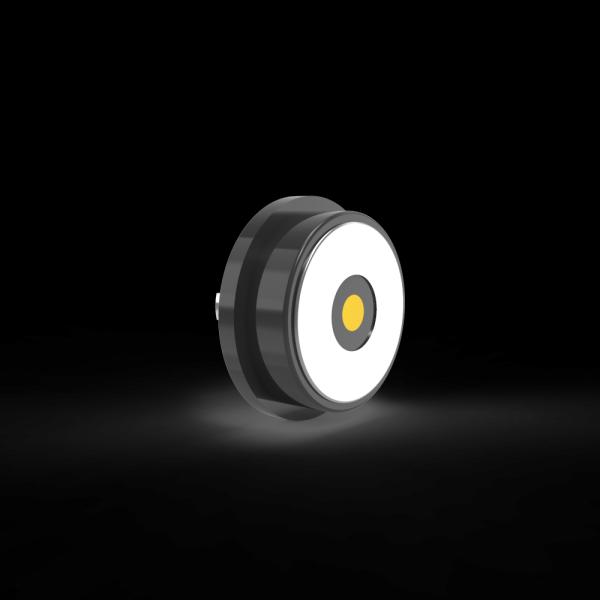

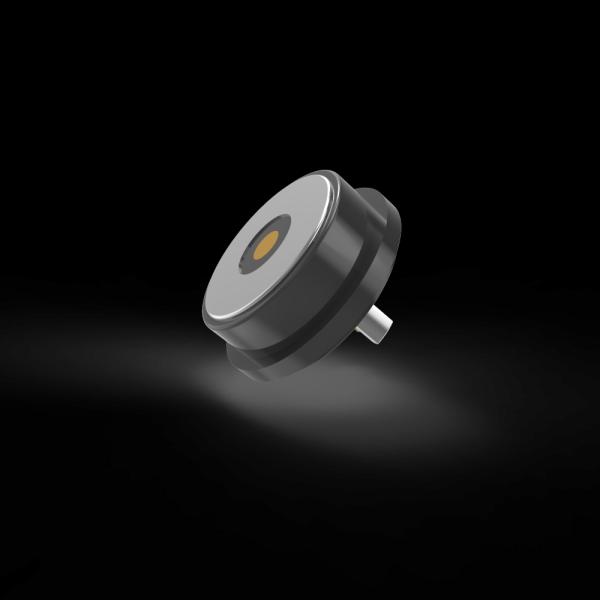

Female magnetic connector:

..Materials :
PINr:Lead-free C6801,plating 5U" Min Au over 60~100U"Ni;
Housing: Black HTN+30%GF UL94 V-0 ;
Shell: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
....Electrical:
Voltage:12.0 V.
Current: 3.0A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACHcompliant product.
...Salt spray test:48H.
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.

Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature,broken,same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection

How Magnetic Connectors Work?

.Both sides magnetically connect when placed in proximity to each other
.Light at the back of plug indicates power is flowing
.When the sides are pulled apart, power flow stops immediately
.They avoid short circuits as the connectors repel each other, and if they attract it is on the insulated parts (as both connectors free the same magnetic pole)

Circular 2Pin Magnetic Cable Connectors Parameter:

Circular 2Pin Male Magnetic Cable Connector Technical Drawing

Circular 2Pin Female Magnetic Connector Technical Drawing

Recommended pcb layout

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

7)Shape customized to meet with product shape matching, improve product selling point;

8)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish the direction( It is user-oriented and user-friendly)

9)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

10)Development time is short, low-cost mold for customization;

11)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Product application areas are:

Our Advantages:
1)Customized Solutions – Our expert engineering team specializes in POGO PIN connectors, magnetic charging connectors, and industrial waterproof connectors, offering fast design support and short development cycles.
2)Rapid Prototyping – Quick sample turnaround to meet urgent demands.
3)Stable Quality & Reliability – Consistent performance for secure and dependable products.
4)Cost-Effective & Excellent Service – High-value solutions tailored to customer needs.
5)We are committed to providing safe, trustworthy, and high-quality products that exceed customer expectations.

6)Quality, integrity, and superior service are the core principles we steadfastly uphold. We sincerely look forward to collaborating with more partners to grow and succeed together.
