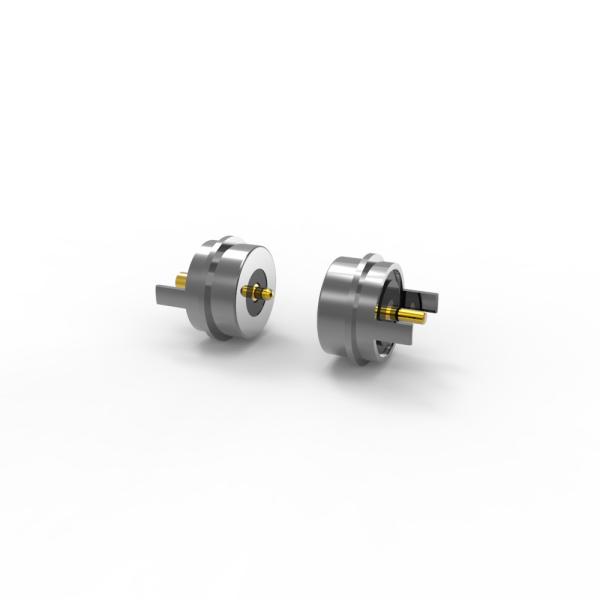

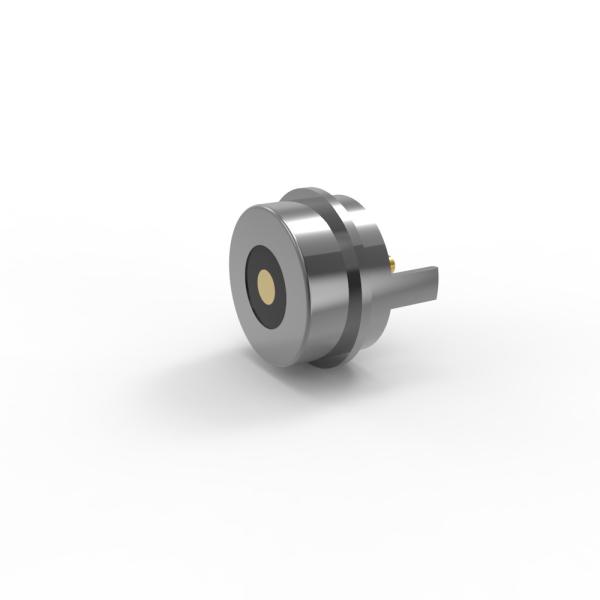

Dia. 6.0mm round male and female magnetic power connector for heating shoes

Materials:

Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;

Barrel:Lead-free C6801 ,plating 5U" Min Au over 60~100U" Ni ;

Spring:SUS 304 plating 1U" Au;

Housing: Black HTN+30%GFUL94 V-0 ;

Shell: Brass C3602 Plating Ni;

Magnet: NdFeB N52 Plating Ni

Mechanical:

Spring force:50g±10g,at 0.8mm working stroke.

Full storke:1.0mm.

Mechanical life:50000 cycle Min.

Electrical:

Voltage:12 V.

Current:3.0A.

Contact resistance:50mΩMax (PIN).

100% open and short test.

...ROHS or REACHcompliant product.

...Salt spray test:48 H.

...& Key inspection dimension .

…Product application description(not limited to the following):

1.Plug-in welding PCB board;

2.Forming and encapsulating after welding wires;

3.A transfer terminal of thatPCBboard can be adde;

4.Mlding injection molding of embeddable mould;

5. Wires can be bonded directly.

Round Magnetic Connector Parameter:

Round Male Magnetic Connector Technical Drawing

Round Female Magnetic Connector Technical Drawing

Recommended pcb layout:

Layout tolerance:±0.05mm

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0
