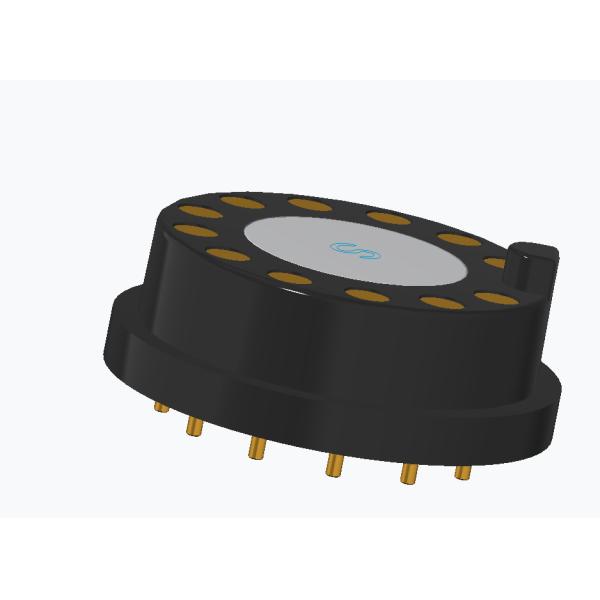

Customized round 12pin male and female magnetic spring pogo pin connector.

Key Features:
12-Pin Configuration

Male and female connectors with 12 spring-loaded pogo pins for power/data transmission.

Options for mixed power/signal pins (e.g., higher current for some pins).

Magnetic Alignment

Integrated rare-earth magnets (e.g., N35/N52 grade) ensure proper mating and prevent misalignment.

Adjustable magnet strength for pull-force requirements (e.g., 2N–10N per pair).

Pogo Pins (Spring Contacts)

Material: Gold-plated brass/beryllium copper for low resistance (<30mΩ) and corrosion resistance.

Spring stroke: Customizable (e.g., 0.5mm–5mm travel) with options for high-cycle life (100K+ cycles).

Current rating: Typically 1A–5A per pin (higher available for power pins).

Housing & Design

Round form factor with diameters typically ranging from 10mm–30mm.

Materials:

Plastic (PBT, nylon) for lightweight use.

Metal (aluminum, stainless steel) for rugged/IP-rated designs

Quality Assurance & Compliance Testing:

1. Electrical Reliability
100% Open/Short Circuit Tested: Every unit undergoes rigorous electrical validation to ensure flawless connectivity and safety.

2. Environmental & Safety Compliance
RoHS & REACH Certified: Free from hazardous substances (e.g., lead, cadmium), meeting EU and global environmental standards.

3. Corrosion Resistance
Salt Spray Tested (48 Hours): Validates performance in harsh, humid, or saline environments (e.g., marine, industrial use).

Why Quality Assurance & Compliance Is Important?
✅ Zero Defects: Ensures every connector delivers consistent performance.
✅ Global Approval: Compliant with stringent international regulations.
✅ Durability Guaranteed: Corrosion-resistant for long-term reliability.

The Benefits of Plating:

Plating Quality: The thin Au over Ni ensures reliable electrical performance while minimizing cost (thicker Au would increase cost but may not be necessary for this application).

Environmental Resistance: Ni plating on the shell/magnet and LCP housing provide protection against humidity, corrosion, and high temperatures.

Durability: The 50,000-cycle life and spring force tolerance (±20g) indicate a focus on long-term reliability.

Round Magnetic Connector Parameter:

Product picture display

Advantages of Round Magnetic Connectors

Round magnetic connectors with pogo pins offer several advantages over traditional connectors, making them ideal for many modern applications. Here are the key benefits:

1. Easy & Secure Connection (Self-Aligning)
Magnetic Alignment: Magnets ensure proper mating without precise manual alignment, reducing wear and tear.

Blind Mating: Works even when the user can’t see the connection point (e.g., behind devices, in tight spaces).

Quick Connect/Disconnect: Saves time in applications requiring frequent attachment/detachment.

2. High Durability & Long Lifespan
Pogo Pins (Spring-Loaded Contacts): Resist vibration/shock and maintain stable electrical contact over 100,000+ cycles.

Reduced Mechanical Wear: Magnets absorb mating force, minimizing connector damage.

Corrosion Resistance: Gold-plated contacts and sealed (IP-rated) housings enhance longevity.

3. Compact & Space-Efficient Design
Round Shape: Fits well in cylindrical devices (e.g., wearables, drones, medical tools).

No Bulky Latches: Magnetic retention eliminates the need for clips or screws, saving space.

4. Safety & Reliability
Breakaway Feature: Detaches safely under excessive force, preventing cable/device damage.

Polarity Control: Custom magnet arrangements prevent reverse insertion.

Spark-Free: Low-risk for short circuits during connection (useful in charging applications).

5. Versatile Power & Data Transmission
Supports High Current: Some pins can handle 3A–10A for power delivery.

High-Speed Data: Shielded designs support USB, UART, I2C, or even HDMI signals.

Mixed Use: Assign pins for power, data, or grounding as needed.

6. Water & Dust Resistance (IP Rated)
IP67/IP68 Options: Sealed designs work in harsh environments (e.g., medical, outdoor, industrial).

7. Aesthetic & User-Friendly
Sleek, Minimalist Look: Preferred for consumer electronics (e.g., wireless chargers, earbuds).

One-Handed Operation: Simplifies use in wearable tech or robotics.

8. Customization Flexibility
Adjustable magnet strength, pin count, size, and materials to fit specific needs.

Magnetic connector products application:

FAQ

1.Why choose us ?
With 100% sincerity,our company will provide the best service for you whatever products or after sales.We will provide the most reasonable quotation and design high quality samples according to your drawings or requirements.We provide guarantee for every customer after sale.

2.Can you customize products for us?
We are very pleased to customize for you or design for you. Please provide us your drawing or samples, and tell us your special requirements about the products. We can customize as soon as possible according to your requirements.

3.How much will the sample cost?
If stock items, we provide samples to customers free of charge, but you should bear the freight.
If customize iterms, we will charge for properly cost and refund reasonable proportion of sample fee when you have order for us!

4.What about your delivery time?
The delivery time depends on the quantity and difficulty of the customer's order.Usually, the stock goods delivery within 3 days while customized products delivered within 2 week.

5.How bout your company quality control?
We will test and inspect the products to ensure the quality of the products to obtain your satisfaction.Quality is the most important in our company, from material to delivery, all will be double checked and company get IS09001 to ensure this.

Requesting a Quote:

*Provide these details to us:

*Current/voltage requirements.

*Mechanical dimensions/drawings.

*Environmental needs (temperature, waterproofing).

*Sample quantities vs. bulk order.

Payment Term: T/T,50% Deposit,50% Balance

Payment method: T/T,PayPal,OCBC

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Shipping

Any question, please send to union@upetech.net
