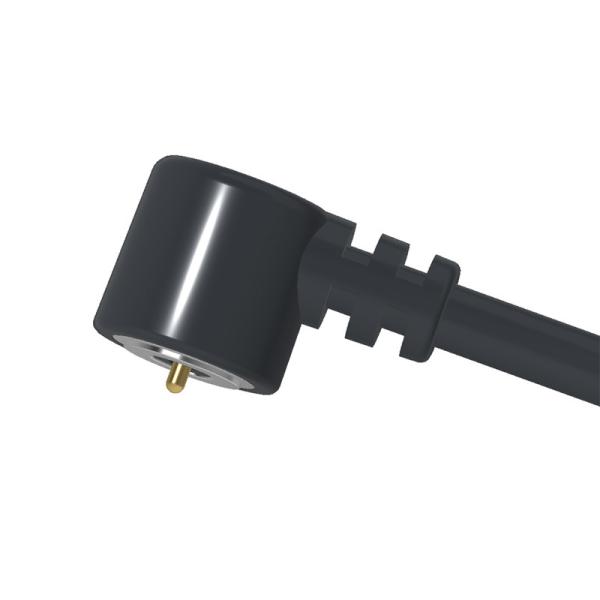

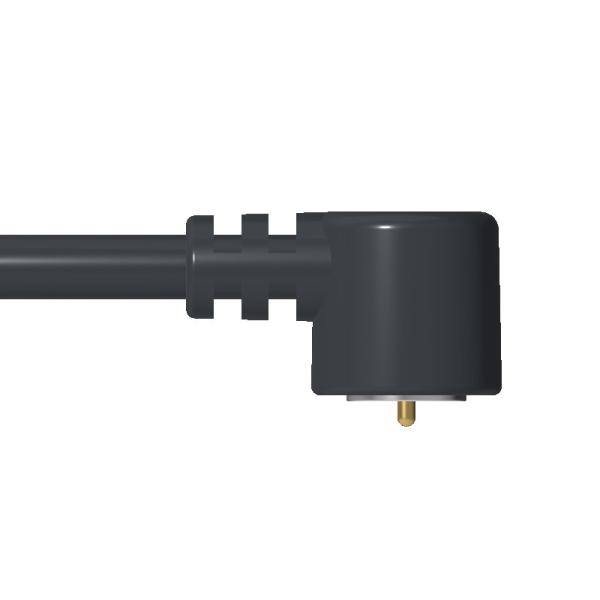

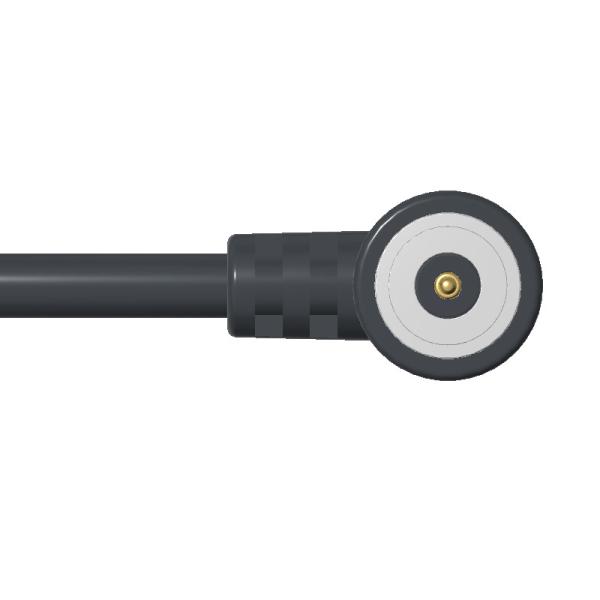

8.0mm Magnetic Cable Connector 3A 2 Pin Pogo Pin Charger Circular For Heated Gloves

Specifications

Brand Name :

UPE

Model Number :

RC-1053-A01-11/ RM-1053-B01-22

Certification :

ISO9002

Place of Origin :

China

MOQ :

5000

Price :

$1-$5

Payment Terms :

T/T

Supply Ability :

5KPCS/Day

Delivery Time :

12-15 working days

Packaging Details :

Name :

Magnetic Cable Connector

Material :

NdFeB N52, PVC, PE

Spring force :

80g±20g,at 1.1mm working stroke

Mechanical life :

10000 cycle Min.

Volatge :

12V

Current :

Magnetic force :

400g±20%

Color :

Black

Cable length :

800mm

Contact resistance :

50mΩ Max (PIN)

Salt spray test :

48H

Description

8.0mm Magnetic Pogo Pin Charging Cable Connector For 3A Heated Gloves

Custom 2pin male and female magnetic usb cable for smart shoes, UPE is a professional manufacturer of round male and female magnetic dc connector and magnetic USB charging cable connector

Magnetic cable connector spec:

8.0mm Magnetic Cable Connector 3A 2 Pin Pogo Pin Charger Circular For Heated Gloves

Magnetic connector spec:

8.0mm Magnetic Cable Connector 3A 2 Pin Pogo Pin Charger Circular For Heated Gloves

Magnetic connector parameter list:

Cable	OD3.5 2C 22AWG Black PVC
Overmolding	PVC Black
Internal Molding	PE Transparent
Spring force	80g±20g,at 1.1mm working storke.
Mechanical life	10000 cycle Min..
Current	3A
Voltage	DC 12V
Magnetic force	400g±20%
Contact resistance	50m Max (PIN).
Salt spray test	48H
Certification	ROHS or REACH compliant product
Test	100% open and short test

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

DC 2PIN Magnetic cable connector application:

8.0mm Magnetic Cable Connector 3A 2 Pin Pogo Pin Charger Circular For Heated Gloves

Why do customers choose UPE?

1. Professional customization service

2. Fast sample production capability

3. Strict quality control system

4. Processing with imported components

5. High-precision test equipment

6. Reasonable cost control procedures

7. Product environmental standards
