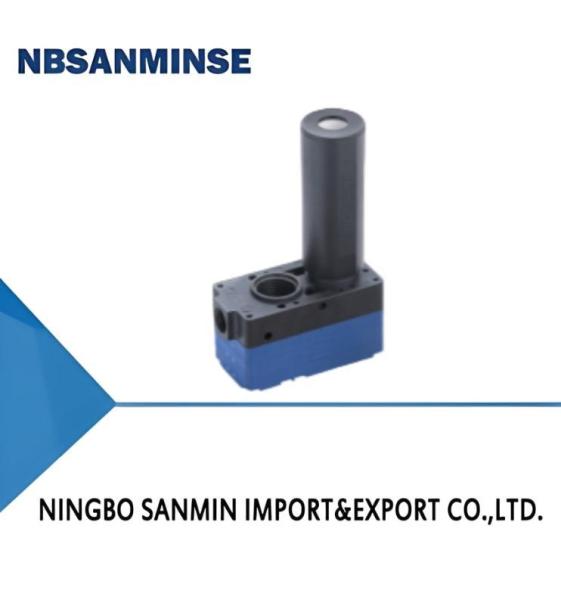

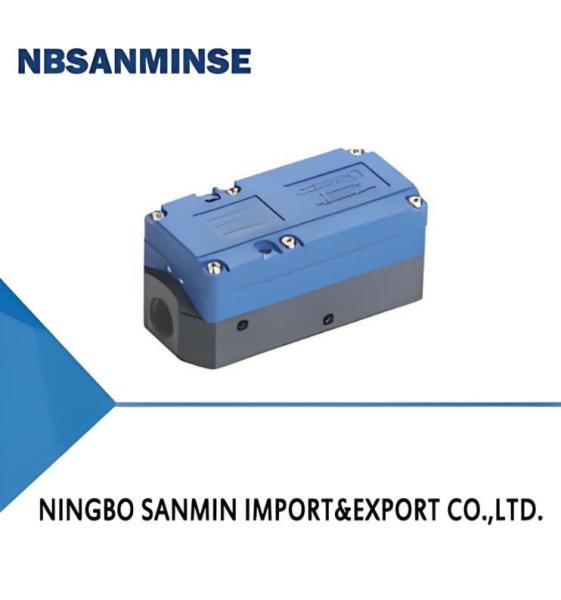

ABM/ABX Series Mini Vacuum Generator
ABM/ABX Series Mini Vacuum Generator
ABM/ABX Series Mini Vacuum Generator
ABM/ABX Series Mini Vacuum Generator
ABM/ABX Series Mini Vacuum Generator
ABM/ABX Series Mini Vacuum Generator
Specifications
pressure :
4.5~6.0bar
Warranty :
1 Year
Max. vacuum flow :
35~37 NL/min
Certification :
ISO9001
Price :
Negotiate
Payment Terms :
L/C,T/T
Max. vacuum level :
85kPa
Brand Name :
NBSANMINSE
Model Number :
ABM5,ABX5
Place of Origin :
CHINA
MOQ :
10PCS
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Air consumption :
12~20 NL/min
Noise level dB(A) :
50~65
Description
Features
◇ Energy-efficient nozzle design
◇ Small size, light weight, can be connected with suction cup directly
◇ There are a variety of air port specifications(A,NA ,B,NB,C,NC)
◇ Built-in silencer and external silencer are optional
Advantages
◇ It can produce more vacuum flow in the condition of less air consumption
◇ For the occasions with limited installation space and weight
◇ Suitable port connection specifications canbe selected according to the
on-site requirements
◇ It can meet different requirements of vacuum flow in different working
conditions
◇ Reduce product noise greatly
Applications
◇ Universal vacuum generator, widely used in all kinds of vacuum systems
◇ Suitable for metal plate handling, packaging machinery, injection molding
and industrial robot technology field
ABM/ABX Series Mini Vacuum Generator
Structure
◇ (1) Air supply port
◇ (2) Vacuum port
◇ (3) Exhaust port
◇ (4) Vacuum filter
◇ (5) Silencer
ABM/ABX Series Mini Vacuum Generator
How to order
ABM 10 -B-F
① ② ③ ④
①Series Specification Port connection ④Sealing
ABM-Universaltype(-85kPa) 5 A NA Nil-Default,NBR
ABX-High vacuum leveltype(-92kPa) 10 B NB F -Fluorine rubber
20 C NC E -EPDM
30 (Refer to table1)
Port connection table1
Port connection Air supply port Vacuum port Exhaust port Applicable vacuum generator
A M5-φ6 G1/8 Internal silencer ABM5,10 ABX5,10
NA M5-φ6 NPSF1/8 Internal silencer ABM5,10 ABX5,10
B G1/8 G3/8 Internal silencer ABM5,10,20,30 ABX5,10,20,30
NB NPSF1/8 NPSF3/8 Internal silencer ABM5,10,20,30 ABX5,10,20,30
C G1/8 G3/8 External silencer ABM5,10,20,30 ABX5,10,20,30
NC NPSF1/8 NPSF3/8 External silencer ABM5,10,20,30 ABX5,10,20,30
Selection - ABM
Model/
Specification		 A NA B NB C NC
ABM5-□ ABM5-A ABM5-NA ABM5-B ABM5-NB ABM5-C ABM5-NC
ABM10-□ ABM10-A ABM10-NA ABM10-B ABM10-NB ABM10-C ABM10-NC
ABM20-□ - - ABM20-B ABM20-NB ABM20-C ABM20-NC
ABM30-□ - - ABM30-B ABM30-NB ABM30-C ABM30-NC
Selection - ABX
Model/
Specification		 A NA B NB C NC
ABX5-□ ABX5-A ABX5-NA ABX5-B ABX5-NB ABX5-C ABX5-NC
ABX10-□ ABX10-A ABX10-NA ABX10-B ABX10-NB ABX10-C ABX10-NC
ABX20-□ - - ABX20-B ABX20-NB ABX20-C ABX20-NC
ABX30-□ - - ABX30-B ABX30-NB ABX30-C ABX30-NC
Technical parameters - ABM
Model Air supply
pressue range
bar		 Max.
vacuum level
-kPa		 Max.
vacuum flow
NL/min		 Air
consumption
NL/min		 Noise
level
dB(A)		 Working
temperature
℃		 Recom
Air supply portP		 mended hos dia
Vacuum portV
ABM5 4.5~6.0 85 35~37 12~20 50~65 -20~80 φ6 φ8
ABM10 4.5~6.0 85 70~75 28~42 55~68 -20~80 φ6 φ10
ABM20 4.5~6.0 85 141~150 55~85 60~68 -20~80 φ8 φ12
ABM30 4.5~6.0 85 175~220 87~125 60~68 -20~80 φ10 φ12

Technical parameters - ABX
Model Air supply
pressue range
bar		 Max.
vacuum level
-kPa		 Max.
vacuum flow
NL/min		 Air
consumption
NL/min		 Noise
level
dB(A)		 Working
temperature
℃		 supply portP Recom
Airmended hose dia.
mm
Vacuum portV
ABX5 4.5~6.0 92 30~32 18~22 50~65 -20~80 φ6 φ 8
ABX10 4.5~6.0 92 52~63 31~40 55~68 -20~80 φ6 φ10
ABX20 4.5~6.0 92 110~125 79~89 60~69 -20~80 φ8 φ12
ABX30 4.5~6.0 92 180~185 128~137 60~69 -20~80 φ10 φ12
◇ Note: Max. air supply pressure is 7.0 bar
Vacuum flow(NL/min) at different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 Max.
vacuum level
-kPa
ABM5 4.5 12 35.0 20.5 12.0 10.5 8.5 6.5 4.5 2.5 0.8 85
ABM10 4.5 28 70.0 40.5 25.0 21.0 18.0 14.0 9.5 5.0 1.3 85
ABM20 4.5 55 141.0 77.0 45.0 39.5 29.5 25.0 17.5 12.0 3.0 85
ABM30 4.5 87 175.0 105.0 70.0 63.0 53.0 40.0 26.0 14.0 6.5 85
ABM5 6.0 20 37.0 25.0 15.5 12.0 8.0 6.0 4.0 2.7 0.6 85
ABM10 6.0 42 75.0 55.0 27.0 20.0 18.0 12.0 9.0 5.0 2.0 85
ABM20 6.0 85 150.0 100.0 55.0 38.0 30.0 24.0 16.0 11.0 3.2 85
ABM30 6.0 125 220.0 150.0 81.0 65.0 50.0 38.0 27.0 18.0 5.0 85
ABM/ABX Series Mini Vacuum Generator
Evacuation time(s/L) to reach different vacuum levels(-kPa)
Model Airsupply
pressure
bar		 Air
consumption
NL/min		 10 20 30 40 50 60 70 80 Max.
vacuum level
-kPa
ABM5 4.5 12 0.11 0.42 0.95 1.66 2.50 3.65 5.25 7.89 85
ABM10 4.5 28 0.08 0.20 0.44 0.80 1.24 1.80 2.55 3.80 85
ABM20 4.5 55 0.04 0.12 0.23 0.41 0.65 0.93 1.33 2.03 85
ABM30 4.5 87 0.03 0.09 0.16 0.27 0.43 0.66 0.95 1.43 85
ABM5 6.0 20 0.13 0.51 1.15 1.93 2.87 4.09 5.84 10.46 85
ABM10 6.0 42 0.03 0.23 0.53 0.92 1.37 1.95 2.77 4.62 85
ABM20 6.0 85 0.02 0.15 0.28 0.46 0.71 1.02 1.48 2.55 85
ABM30 6.0 125 0.02 0.08 0.14 0.31 0.49 0.69 1.02 1.75 85
ABM/ABX Series Mini Vacuum Generator
Vacuum flow(NL/min) at different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
ABX5 4.5 18 30.0 13.0 7.5 7.0 6.0 5.0 4.0 3.2 1.8 0.4 92
ABX10 4.5 31 52.0 240 18.0 15.0 13.0 10.5 8.0 6.0 2.5 0.8 92
ABX20 4.5 79 100.0 46.0 34.0 30.5 25.0 21.0 17.0 10.5 5.0 1.6 92
ABX30 5.0 128 180.0 95.0 55.0 45.5 40.5 30.5 25.0 19.0 11.5 3.0 92
ABX5 6.0 22 32.0 20.0 8.5 7.5 6.0 5.0 4.0 3.0 1.5 0.15 92
ABX10 6.0 40 63.0 36.0 18.0 16.0 12.5 10.5 8.5 6.0 3.5 0.5 92
ABX20 6.0 89 125.0 73.0 35.0 30.0 25.0 22.0 18.0 12.0 7.0 0.9 92
ABX30 6.0 137 185.0 103.0 51.0 46.0 38.0 31.0 25.0 19.0 12.0 1.8 92
ABM/ABX Series Mini Vacuum Generator
Evacuation time(s/L) to reach different vacuum levels(-kPa)
Model Airsupply
pressure
bar		 Air
consumption
NL/min		 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
ABX5 4.5 18 0.13 0.60 1.26 2.30 3.20 4.50 6.15 8.50 15.50 92
ABX10 4.5 31 011 0.30 0.65 1.10 1.55 2.15 2.85 4.70 10.20 92
ABX20 4.5 79 0.09 0.16 0.32 0.55 0.80 1.50 1.80 2.70 5.00 92
ABX30 5.0 128 0.06 0.12 0.23 0.36 0.53 0.76 1.10 1.60 2.90 92
ABX5 6.0 22 015 0.71 1.52 2.54 3.72 5.12 6.95 9.70 21.00 92
ABX10 6.0 40 0.09 0.32 0.71 1.18 1.74 2.40 3.26 4.55 10.20 92
ABX20 6.0 89 0.05 0.15 0.31 0.52 0.77 1.08 1.54 2.15 4.92 92
ABX30 6.0 137 0.03 0.13 0.23 0.38 0.58 0.82 1.11 1.54 3.00 92
ABM/ABX Series Mini Vacuum Generator
Dimensions(mm)
ABM/ABX Series Mini Vacuum Generator
Dimensions(mm)
ABM/ABX Series Mini Vacuum Generator
Repair kits
ABM/ABX Series Mini Vacuum Generator

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,SMS,RSMT,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?

Focus Point High Temperature Environment Countermeasures Extreme Cold Environment Countermeasures
Seals Fluororubber, PTFE Low-temperature nitrile, silicone rubber, polyurethane
Lubrication High-temperature synthetic grease (low volatility) Low-temperature grease (low pour point, low viscosity)
Air Supply Treatment Strengthen cooling, efficient water removal Ultra-low dew point drying (refrigeration + adsorption type), heat tracing
Metal Components Reserve expansion clearance Select materials with low-temperature toughness, prevent leakage due to cold shrinkage
Control Components High heat-resistant grade coils, heat dissipation, low power consumption Install insulation boxes, local heating, prevent cold condensation
Installation Keep away from heat sources, add heat insulation plates Avoid exposure to wind and snow, wrap with thermal insulation materials
