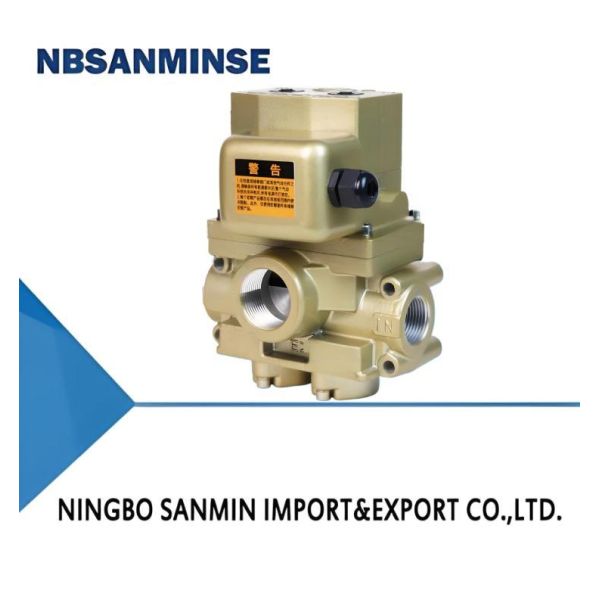

K23JSD-HSCO Series double valves for press machine
K23JSD-HSCO Series double valves for press machine
Specifications
Brand Name :
NBSANMINSE
Model Number :
K23JSD-HSCO
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Rated Voltage :
DC 24V
Holding Current :
0.32
Power (W) :
7.7
Working temp (℃) :
5-40
working pressure (Mpa) :
0.2-0.7
Description
Features:
K23JSD-L15HSCOis the parallel flow duoble safe valveThis product integratestwo three-way solenoid valves with
the same function to operate simultaneously, greatly improving the accuracy and safety ofthe stamping machine's
actions.when one of the valve goes wrong as the "OUT"side"s"air pressure is higher than clutch "s"and break-
ar"s”,the press machine will stop runing,It makes the press machine more safe then those that only have one single
solenoid valve.
Order Code:
K23JSD-HSCO Series double valves for press machine

① Medium: Air

② Circuit Form: 2/3 Way

③ Valve Body Form: Globe Type

④ Dual Valve

⑤ Control Form: Electric Control

⑥ Connection Method: Pipe Connection

⑦ Nominal Diameter: 15SC2, 20G1/4, 25G1, 32G1-1/4, 40 G1-1/2

⑧ Product Model: HSV Series

⑨ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V

Symbols:
K23JSD-HSCO Series double valves for press machine
K23JSD-HSCO Series double valves for press machine
K23JSD-HSCO Series double valves for press machine
K23JSD-HSCO Series double valves for press machine
K23JSD-HSCO Series double valves for press machine
Outlook Dimension:
K23JSD-HSCO Series double valves for press machine

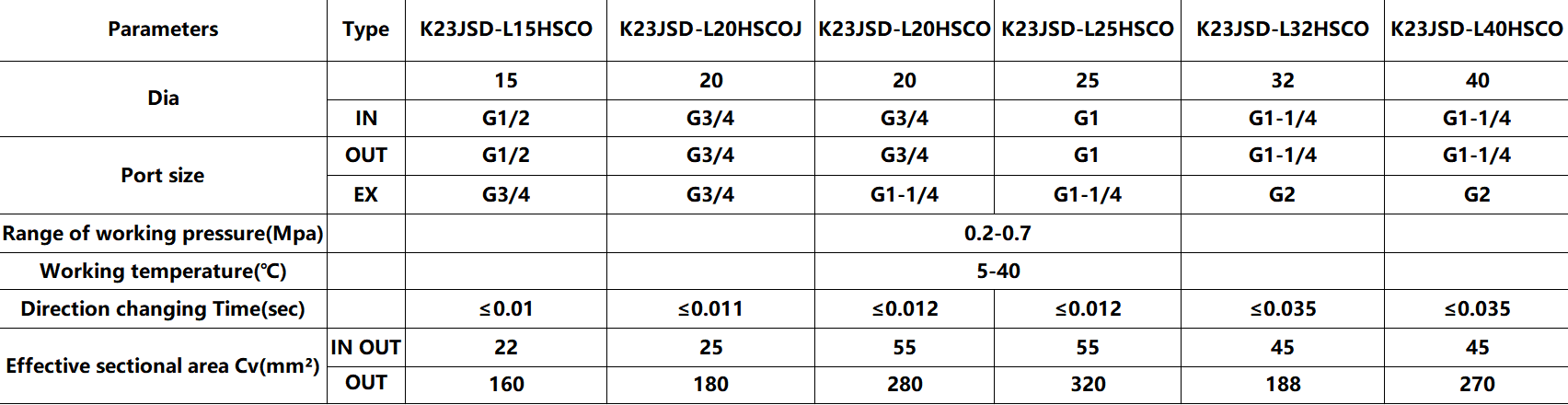

Specification:
K23JSD-HSCO Series double valves for press machine
AC voltage:
K23JSD-HSCO Series double valves for press machine
DC voltage:
K23JSD-HSCO Series double valves for press machine
