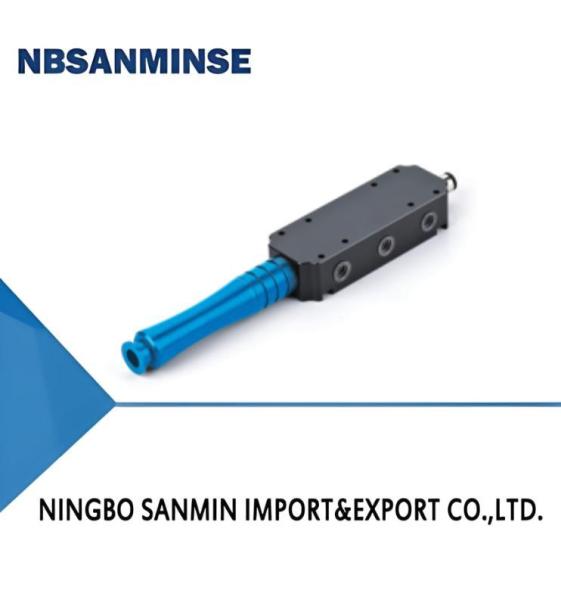

AGX Series Vacuum Generator
AGX Series Vacuum Generator
Specifications
Warranty :
1 Year
Air consumption :
120NL/min
Brand Name :
NBSANMINSE
Model Number :
AGX-S32-3
Place of Origin :
CHINA
MOQ :
10PCS
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Certification :
ISO9001
Price :
Negotiate
Payment Terms :
L/C,T/T
pressure :
4.0 bar
Max. vacuum level :
60 -kPa
Specification :
S32-3 （-75kPa）
Description
Features
◇ Fast evacuation, high vaccum level, low air consumption
◇ Built-in vacuum cartridge
◇ Small size, simple structure, groove type installation structure
◇ There are 6 vacuum ports with G1/4 female thread
Advantages
◇ High efficient and energy-saving vacuum generator, can quickly
reach the max. vacuum level
◇ The suitable vacuum generators can be selected according to different
working conditions
◇ Simple installation structure, can be installed quickly
◇ Multiple suction cups can be connected at the same time
◇ Reduce product noise
Applications
◇ The working conditions where multiple suction cups are directly
installed at the same time
◇ Applicable to the working conditions that require fast evacuation
and low air consumption

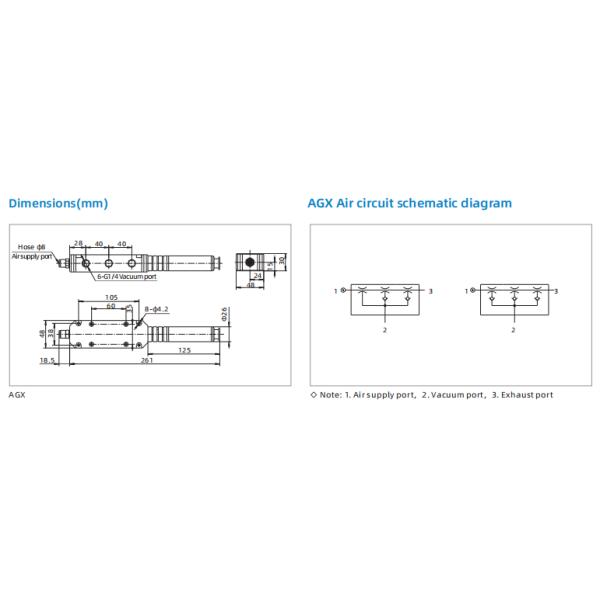

Structure
◇ Housing can be freely matched with vacuum cartridges with different
performace parameters
◇ The air supply port is directly inserted into the φ8 hose, the vacuum port
is G1/4 female thread
How to order
AGX - S32-3
① ②
① Series ② Specification
AGX S32-3 (-75kPa)

X40-3 (-95kPa)
Vacuum flow(NL/min) at different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
AGX-532-3 4.0 120 350 152 110 64 50 26.7 11.5 - - - 60
5.0 125 370 185 125 90 50 36.2 27.3 13.9 - - 70
6.0 130 390 210 135 100 65 35.1 30.3 18.3 - - 75
AGX-X40-3 4.5 120 350 175 120 80 44 32.7 24.5 17.8 11.6 3.2 91
5.0 125 360 190 125 95 65 36.0 26.0 17.6 10.8 2.8 95
6.0 135 380 220 130 105 90 54.0 26.0 17.8 9.3 2.2 94
Evacuation time(s/L) to reach different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
AGX-532-3 4.0 120 0.03 0.08 0.15 0.26 0.44 11.5 - - - 60
5.0 125 0.03 0.07 0.13 0.23 0.38 27.3 1.07 - - 70
6.0 130 0.03 0.05 0.10 0.18 0.36 30.3 0.87 - - 75
AGX-X40-3 4.5 120 0.03 0.07 0.13 0.23 0.38 24.5 0.97 1.50 3.25 91
5.0 125 0.03 0.07 0.14 0.21 0.37 26.0 0.99 1.46 3.23 95
6.0 135 0.03 0.05 0.10 0.16 0.27 26.0 0.86 1.45 3.92 94
AGX Series Vacuum Generator

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,SMS,RSMT,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?

Focus Point High Temperature Environment Countermeasures Extreme Cold Environment Countermeasures
Seals Fluororubber, PTFE Low-temperature nitrile, silicone rubber, polyurethane
Lubrication High-temperature synthetic grease (low volatility) Low-temperature grease (low pour point, low viscosity)
Air Supply Treatment Strengthen cooling, efficient water removal Ultra-low dew point drying (refrigeration + adsorption type), heat tracing
Metal Components Reserve expansion clearance Select materials with low-temperature toughness, prevent leakage due to cold shrinkage
Control Components High heat-resistant grade coils, heat dissipation, low power consumption Install insulation boxes, local heating, prevent cold condensation
Installation Keep away from heat sources, add heat insulation plates Avoid exposure to wind and snow, wrap with thermal insulation materials
