AZU Series Basic Vacuum Generator
AZU Series Basic Vacuum Generator
Specifications
Brand Name :
NBSANMINSE
Model Number :
AZU05S
Place of Origin :
CHINA
MOQ :
10PCS
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Certification :
ISO9001
Price :
Negotiate
Payment Terms :
L/C,T/T
Nozzle diameter :
0.5 mm
pressure :
4.5 bar
Max. vacuumlevel :
85 -kPa
Max. vacuumflow :
7 NL/min
Air consumption :
9 NL/min
Warranty :
1 Year
Description
Features
◇ Axial connection
◇ Plastic housing
◇ High vacuum type and large flow type for option
Advantages
◇ Installing directly to hose
◇ Suitable for small space
◇ Easy installation, no additional installation accessories are required
Applications
◇ Linear type to install to PU hose directly
◇ Suitable for handling system of limited space
◇ Handling of electronic components
AZU Series Basic Vacuum Generator
Structure
◇ (1) Air supply port
◇ (2) Exhaust port
◇ (3) Vacuum port
AZU Series Basic Vacuum Generator
How to order
AZU 05 S
① ② ③
①Series ②Nozzle diameter ③Specification
AZU 05-φ0.5mm S-High vacuum leveltype(-85kPa)
07-φ0.7mm L-Large vacuum flow type(-48kPa)
Selection
Model/Nozzle diameter 05 07
AZU□S AZU05S AZU07S
AZU□L AZU05L AZU07L
Technical parameters

Model
Nozzle
diameter
 mm
Rated air
supplypressure
bar
Max.
vacuumlevel
-kPa
Max.
vacuum flow
 NL/min
Air
consumption
 NL/min
Noise
level
dB(A)
Working
temperature
℃

Weight

g

 Recommendedhose dia. (mm)

Airsupplyport
 P		 Vacuum port
 V
AZU05S 0.5 4.5 85 7 9 68 5~60 6.5 φ6 φ6
AZU07S 0.7 4.5 85 12 19 68 5~60 7.0 φ6 φ6
AZU05L 0.5 4.5 48 12 9 70 5~60 6.5 φ6 φ6
AZU07L 0.7 4.5 48 21 19 70 5~60 7.0 φ6 φ6
◎Note:Max.operating pressure 7bar,standard operating pressure4.5bar

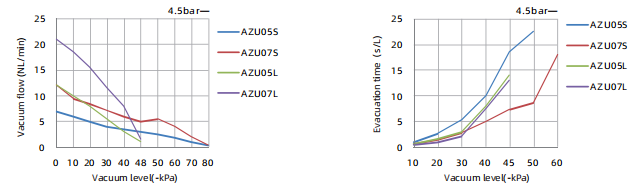

Vacuum flow(NL/min)at different vacuum levels(-kPa)
Model Air supply
 pressure
 bar		 Air
consumption
NL/min		 0 10 20 30 40 48 50 60 70 80 Max.
vacuum level
-kPa
AZU05S 4.5 9 7.0 6.0 5.0 4.0 3.5 - 2.5 1.8 1.0 0.4 85
AZU07S 4.5 19 12.0 9.5 8.5 7.2 6.0 - 5.5 4.0 2.0 0.4 85
AZU05L 4.5 9 12.0 10.0 8.0 5.5 3.0 1.0 - - - - 48
AZU07L 4.5 19 21.0 18.5 15.5 11.5 8.0 1.5 - - - - 48
Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model Air supply
 pressure
 bar		 Air
 consumption
 NL/min		 10 20 30 40 45 50 60 Max.
vacuum level
-kPa
AZU05S 4.5 9 0.90 2.6 5.2 10.0 - 22.5 - 85
AZU07S 4.5 19 0.53 1.4 2.7 5.0 - 8.7 18 85
AZU05L 4.5 9 0.60 1.5 2.9 8.0 14.0 - - 48
AZU07L 4.5 19 0.34 0.9 2.0 7.5 13.0 - - 48
AZU Series Basic Vacuum Generator

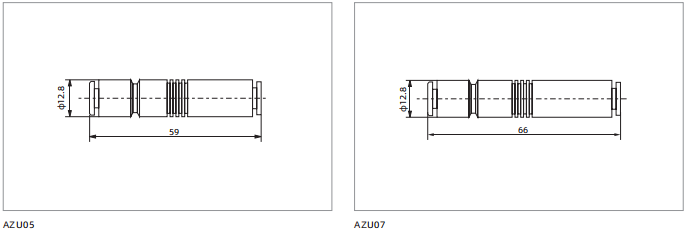

Dimensions(mm)
AZU Series Basic Vacuum Generator
