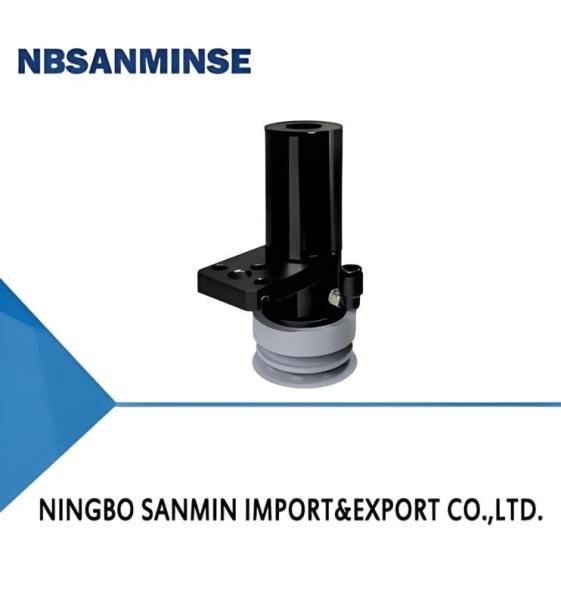

SLB Series Thin Lip Flow Gripper
SLB Series Thin Lip Flow Gripper
Specifications
Brand Name :
NBSANMINSE
Model Number :
SLB30-M10
Place of Origin :
CHINA
MOQ :
10PCS
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Price :
Negotiation
Payment Terms :
T/T,L/C

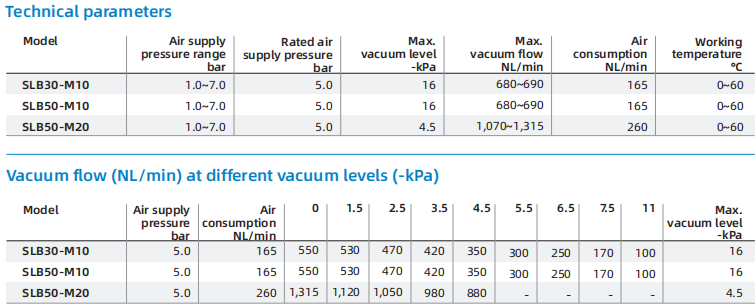

pressure :
5.0bar
Dia. of suction cup :
30 - φ30mm
Air consumption :
165 NL/min
suction cup :
WS - White silicone
vacuum generator :
M10 - Diameter φ10mm
Description
Features
◇ Large vacuum flow
◇ Integrated with vacuum generator, suction cup,silencer/pagoda fitting
◇ Vertical and horizontal mounting types
◇ Suction cup with rubber material, flexible, high suction force, protect
the surface of workpiece
Advantages
◇ Flexible gripping, prevent damage to the workpiece during handling
◇ Large vacuum flow, suitable for handling porous workpiece
◇ Easy to install, different types for option
◇ Simple structure, integrated design, could connect to compressed air directly, no
need extra vacuum generator
◇ Minimize noise, pagoda fitting could be used to collect the exhausted air, no pollution
SLB Series Thin Lip Flow Gripper
Application
◇ Suitable for handling porous workpieces, such as printed PCB, PVC board
◇ Suitable for food industry, such as biscuit, bread, etc.
◇ Suitable for handling irregular workpieces

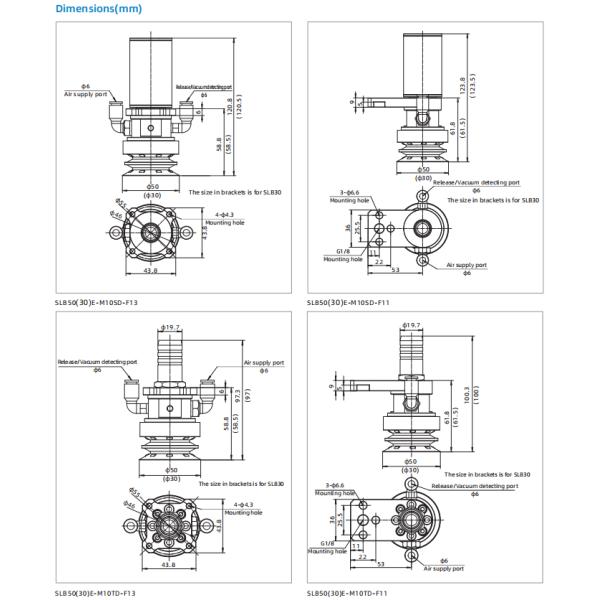

Structure
◇(1)Release/Vacuum detecting port
◇(2)Mounting flange
◇(3)Silencer
◇(4)Air supply port
◇(5)Vacuum generator
◇(6)Adsorbing surface
SLB Series Thin Lip Flow Gripper
SLB Series Thin Lip Flow Gripper
SLB Series Thin Lip Flow Gripper
SLB Series Thin Lip Flow Gripper
SLB Series Thin Lip Flow Gripper
