Pneumatically operated 2/2 way angle seat valve CLASSIC Stainless steel body with PPS actuator Type 8644
Remote Process Actuation Control System AirLINE
The externally piloted angle seat valve is operated with a single or double acting piston actuator. The actuator is available in two different materials, depending on the ambient temperature. High flow rates are attained with the
virtually straight flow path. The reliable self–adjusting packing gland provides high sealing integrity. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation or manual override.
Pneumatically operated 2/2 way angle seat valve CLASSIC Stainless steel body with PPS actuator Type 8640
Customized Pneumatic Systems Solutions for the Processing Industries
Pneumatically operated 2/2 way angle seat valve CLASSIC Stainless steel body with PPS actuator Type 8697

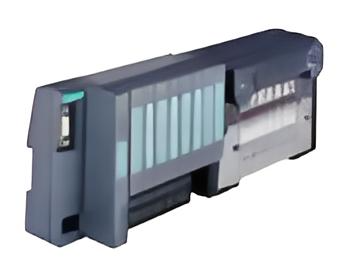

Pneumatic control for decentralised automation of ELEMENT process valves
Pneumatically operated 2/2 way angle seat valve CLASSIC Stainless steel body with PPS actuator Type 6012

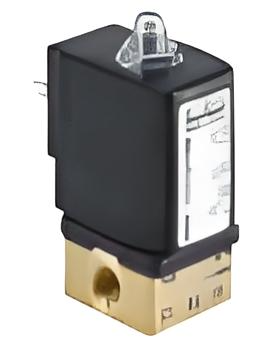

Plunger valve 3/2 way direct-acting
Pneumatically operated 2/2 way angle seat valve CLASSIC Stainless steel body with PPS actuator Type 6014
Plunger valve 3/2 way direct-acting
Pneumatically operated 2/2 way angle seat valve CLASSIC Stainless steel body with PPS actuator Type 8840
Modular process valve cluster - distribution and collecting
1. General Technical Data
Product properties
Dimensions More detailed infomation can befound in the chapter “6.Dimensions”on page 7.
Material More detailed infomation can be found in the chapter"5.Materials"on page 6.
Design Angle seat valve
Port connection size DN10...DN80,NPS%...NPS 3
Safety setting in case of power failure Nomally closed (control function A),nomally open (control function B)
Flow direction Flow to open (below seat),Flow to close(aboveseat)
Performance data

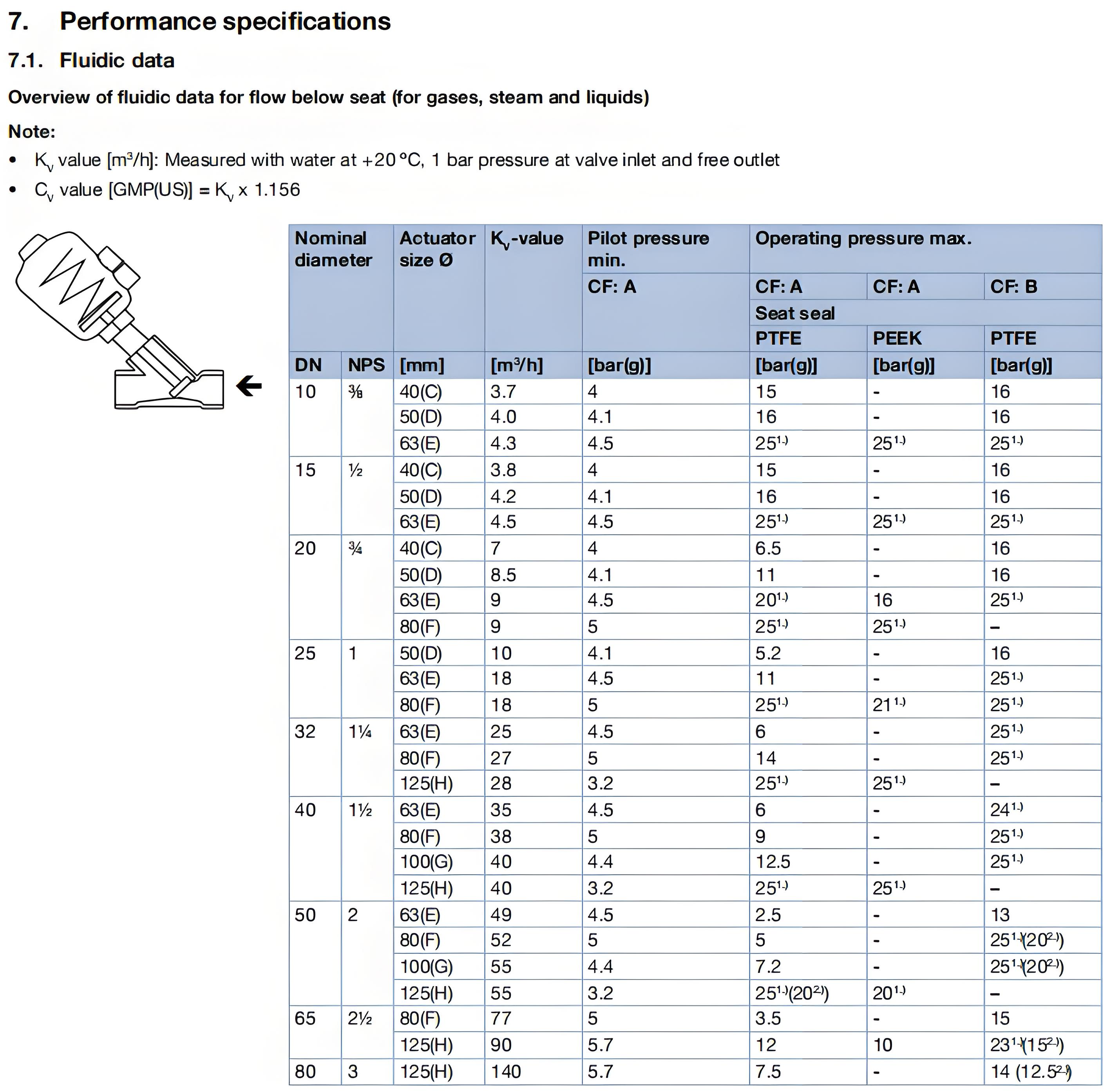

Operating pressure ...25 bar(g),Vacuum up to-0.9 bar(g)(option,see "7.1.Fluidic data"on page 11
Nominal pressure PN25(DIN EN 1333),Class 150(DIN EN 1759)
Pilot pressure 2...10 bar(g),see"7.1.Fluidic data"on page 11
K,value 3.8...140 m³/h
Media data
Medium Steam,water,neutral gases,alcohol,oils,fuels,hydraulic fluids,salt solution,alkali
 solutions,organic solvents,for fuel gases of category I,Il andll aoc.to Gas Applianc-
 es Pegulation (EU)2016/426 and oxygen
Medium temperature -40...230°℃,see"7.2.Operating limits"on page 15
Viscosity Max.600 mm²/s
Control medium Air,neutral gases
Process/Port connection &communication
Port Connections
Threaded connection
G(DIN ISO 228-1)
NPT IASME B1.20.1)
Pc(ISO7-1)
Welded connection DIN EN ISO1127/ISO 4200/DN11866 B
 DIN 118502/DIN 11866 A
 ASME BPE/DIN 11866 C
 SMS 3008
Clamp connection DIN 32676 B(pipe ISO 4200)
 DIN 32676A(pipe DIN 118502)
 ASME BPE
Pilot air port
Actuator size 40(C) Thread G%
Actuator size 50(D)...125(H) Thread G4
Approvals and certificates
Confomity Food contact 1935/2004(EG),FDA
 Drinking water
 Pressure Equipment Directive
 Gas Appliances Regulation
 Machinery Directive
Approvals Explosion proof ATEX/IECex
Material certificate 2.2,3.1
Environment and installation
Ambient temperature -10...140°Csee “2.Product versions”on page 4
Degree of protection IP67
Installation position As required,preferably with actuator upright
2.3. Stainless steel body with PPS actuator
Product properties
Nominal diameter DN10…DN80,NPS%..….NPS3
Performance data
Operating pressure ...25 bar(g),vacuum up to-0.9 bar(g)(option),see“7.1.Fluidic data”on page 11
Maximum pilot pressure
Actuator size 40(C),50(D),
63(E),80(F),		 10 bar(g)
Actuator size 100(G),125(H) 7 bar(g)
Media data
Medium temperature -40.…230℃
Product connection
Port connection Threaded,welded or clamp connection
Environment and installation

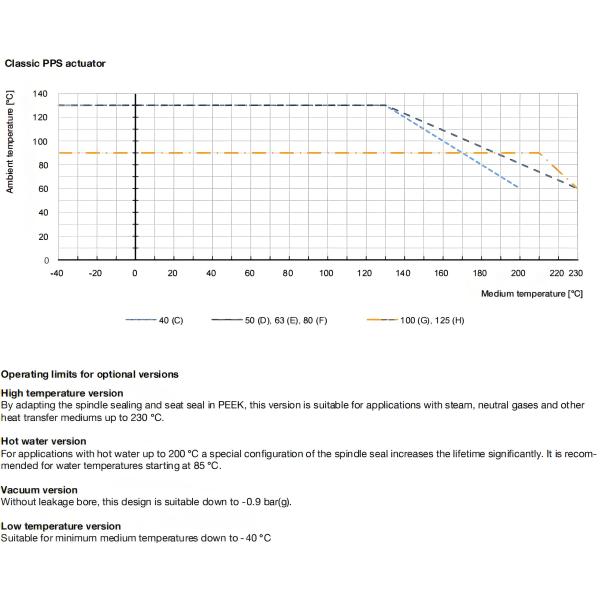

Ambient temperature 5...140°℃(continuous operation upto 130℃)
(see“7.2.Operating limits”on page 15)
