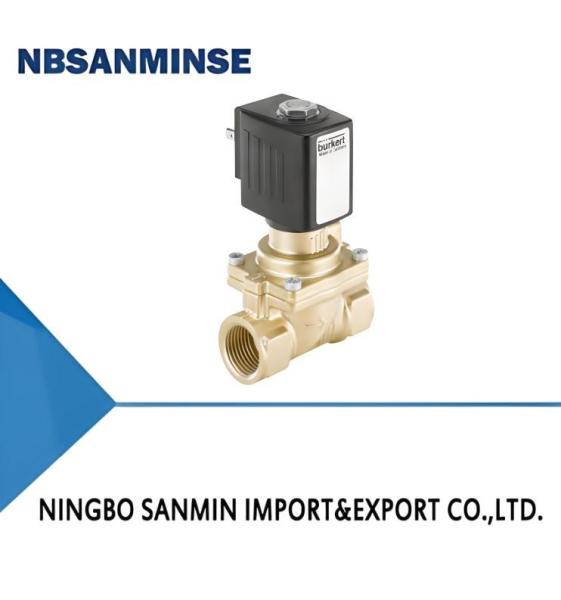

Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage
Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage
Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage
Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage
Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage
Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage
Specifications
Brand Name :
NBSANMINSE
Model Number :
6281
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Orifice :
DN 10... DN 50
Operating voltage :
24 V/DC, 24 V/UC, 24 V/50…60 Hz, 230 V/UC, 230 V/50…60 Hz
Ambient temperature :
Max. +55°C
Media :
Gas,Water,Air,oil,steam
Standard or nonstandard :
Standard
Working pressure :
0.15-0.8Mpa,0-7kgf/cm3,0.15~0.8 MPa
Voltage :
DC12V DC24V AC24V AC110V AC220V AC380V,AC,±10%,DC
Description
• Servo-assisted diaphragm with diameter of up to DN 50
• Vibration-proof, central screwed coil system
• Damped design for quiet closing
• Energy-saving double coil technology with kick and drop variant
• Explosion-proof versions
Can be combined with Type description
Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage Type 2518
Cable plug,
form A according to DIN EN 175301-803
The 6281 valve is a servo-assisted solenoid valve of the S.EV series. A minimum
differential pressure is always required for the function of the valve. Various dia
phragm material combinations and methods of operation are available depending
on the application. The standard brass housing satisfies all European drinking
water requirements. Dezincification-resistant brass is available for other markets.
The housing offering is rounded out by a stainless steel version. To reduce power
consumption in operation, coils with "Kick and Drop" (KD) electronics assembly
(double coil technology) are available. The valve can be equipped with manual
override for easy maintenance and commissioning. NEMA 4X is available on
request.
Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage Type 2509
Cable plug,
form A according to DIN EN 175301-803


1.General technical data
Product properties
Dimensions Further infomation can be found in chapter "5.Dimensions"on page 7.
Material
Seal NBREPDM,FKM
Body Brass acc.to DIN EN 50930-6,stainless steel
(dezincification resistant on request)
Inner valve parts Stainless stee,Brass,Plastic(PPS)
Orifice DN 10...DN 50
Circuit function Further infomation can be found in chapter “2.Circuit functions”on page 4.
Themal insulation class of
solenoid coil		 Polyamide coil class B
Epoxy coil class H
Performance data
Duty cycle 100%continuous operation
Switching time⁴ Opening:0.1.….1.5 s
Closing:0.2...4s
Electrical data
Operating woltage 24V/DC,24VUC,24V/50...60 Hz,230 VUC,230V/50...60Hz
Power consumption Further infomation can be found in chapter "6.Performance specifications"on page 12.
Voltage tolerance ±10%
Medium data
Operating medium
NBR Neutral fluids (e.g.compressed air,water)
EPDM Oiland fat-free fluids,hot water,aceton,aqueous alkali solution
FKM Hot air,per-solution
Medium temperature
NBR -10.…+80℃
EPDM -30*...90℃(with epoxy coil to+100℃)
FKM 0℃…90℃with epoxy coil to+120℃)
Process/Port connection &communication
Bectrical connection ·Cable plug Type 2518▶,fomA acoording to DIN EN 175301-803
 Further infomation can be found in chapter"“Cable plug Type 2518,form Aaccording to DIN EN
 175301-803"on page 20.
·Cable plug Type 2509▶,fomA acoording to DIN EN 175301-803
Further infomation can be found in chapter"“Cable plug Type 2509,form Aaccording to DIN EN
 175301-803"on page 20.
Approvals and conformities
Directives CE,EAC
Degree of protection IP65 with cable plug,cable connection and terminal box
Explosionprotection Further infomation can be found in chapter"3.4.Explosion protection"on page 4.
North America(USA/Canada) Further infomation can be found in chapter"3.5.North America (USA/Canada)"on page 5.
Drinking water Further infomation can be found in chapter "3.6.Drinking water"on page 5.
Environment and installation
Installation As required,preferably with actuator upright
Ambient temperature Max.+55℃
1.) Measurement at +20 °C, 6 bar at the valve outlet, opening: pressure build-up 0…90%, closing: pressure reduction 100…10%
