Specifications
Brand Name :
NBSANMINSE
Model Number :
6213
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Material :
Steel
Valve body :
Brass
Coil size :
H J K O M
Power :
Solenoid,Pneumatic,Hydraulic,2x6.5W(12VDC),2x7W(110VAC)
Operating temperature :
NBR for -5~80℃ and VITON for -5~150℃,-15~150°C FOR VITON,EPDM,-29℃ ~ +200℃
Connection :
Female Thread,Thread(NPT,Flange End,BSP,BSPT)
Voltage :
DC12V DC24V AC24V AC110V AC220V AC380V,AC,±10%,DC
Working temperature :
5-50degree,5~50°C
Description
Can be combined with Type description
Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve Type 2518
Cable plug,
form A according to DIN EN 175301-803

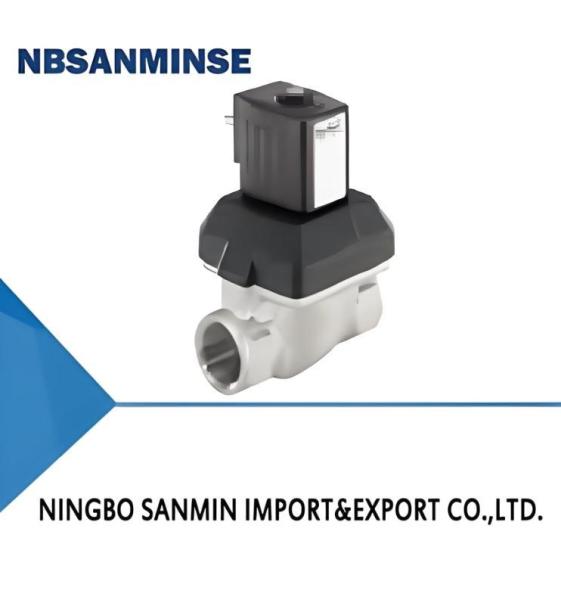

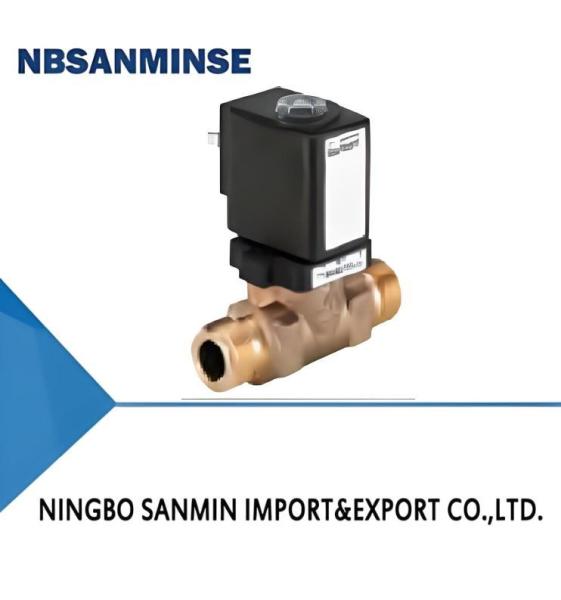

The 6213 EV valve is a servo-assisted diaphragm valve of the S.EV series.
The diaphragm spring coupling supports the opening process of the valve.
In its standard version, the valve is suitable for use in liquids. A minimum dif
ferential pressure is required for complete opening. A special version (HP00)
which opens the valve without differential pressure is available for gas and
vacuum applications. Various diaphragm material combinations are available
depending on the application. The range of housings includes brass, stain
less steel and gunmetal. Dezincification-resistant brass is available for other
markets. To reduce power consumption in operation, coils with Kick and Drop
electronics assembly (double coil technology) are available.
Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve Type 2513
Cable plug,
form A according to DIN EN 175301-803
Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve Type 1087
Timer, form A according to DIN EN 175301-803


1. General technical data
Product properties
Dimensions Detailed infomation can be found in chapter"5.Dimensions"on page 6.
Material
Seal NBR,FKM,EPDM
Body Brass acc.to DINEN50930-6
 Stainless steel 1.4408
 Gunmetal(extemal thread)DN 10..DN 20
Coil Polyamide,epoxy (insulation classH)
lnner part of valve Brass body:Brass,stainless steel and PPS
 Stainless steel body:Stainless steel and PPS
 Gunmetal body:Stainless steel and PPS(external threadDN 10...DN 20
Orifice Standard:DN 10..DN40
 HP00:DN 13….DN20
Circuit function Detailed infomation can be found in chapter"2.Circuit functions"on page 4.
Performance data
Duty cycle 100%continuous rating;KD coil max.rating 6 circuit switches/minute
Switching timelAC/DC
DN 10..DN 13 Opening:10.….100 ms
Ciosing:100...200 ms
Opening:200...300 ms
Ciosing:400...700 ms
Opening:30400 ms
Closing:800...1400 ms
DN 20
DN 25..DN 40
Electrical data
Operating voltage Standard:024/DC,024/50,230/50,110/50,120/60
 HP00:024/DC,24V(50..60 Hz),230V(50...60 Hz)
Power consumption Depending on orifice and coil size
 For detailed infomation,see "6.Performance specifications"on page 11
Voltage toleranoe ±10%
Medium data
Operating medium
NBR Neutral fluids,water,hydraulic oil,oil without additives
FKM Per-solutions,hot oils with additives
EPDM Oil and fat-free fluids and gases
Medium temperature
NBR -10C….+80℃
FKM 0℃…+90Cwith polyamide coil
 0℃.…+120℃with epoxy coil
EPDM -30°C…+90℃ with polyamide coil
-30°C….+100℃ withepoxy coil
EPDM with dninking water approval
according to UBA		 Application range of cold and hot water up to+60°℃
Viscosity Max.21mm²/s
Process/Port connection &communication
Bectrical connection Tag connector acc.to DINEN175301-803 fom A
 (see"8.4.Ordering chartaccessories"on page 29
Approvals and certificates
Degree of protection IP65IP65 with cable plug Type 2518▶
 4XNEMA with stainless steel version and cableplug Type 2509▶
Environment and installation
Installation As required,preferably with actuator upright
Ambient temperature Max.+55℃
.)Measrement at 6 bar and+20°℃at the wade oufet,openg pessre buid-up0...90%,dosing pressue educion 10...10%
