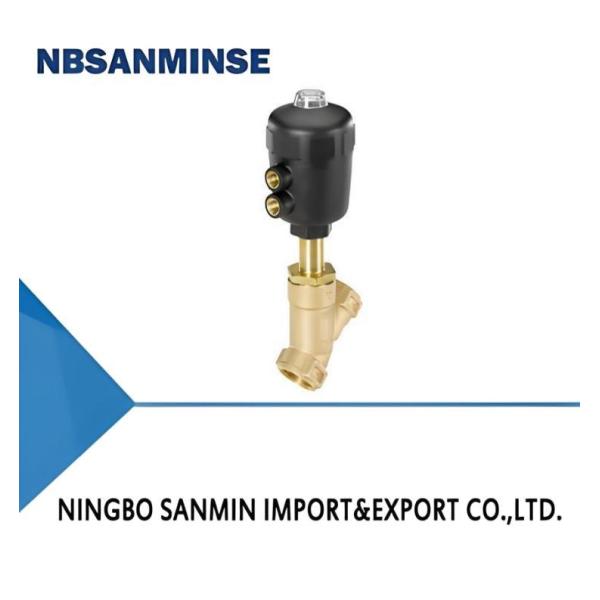

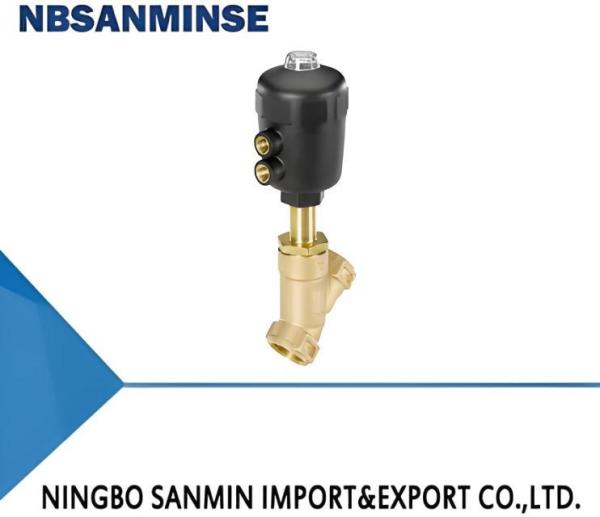

Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator Type 8644

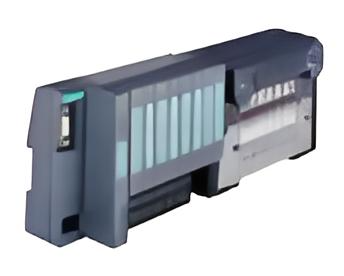

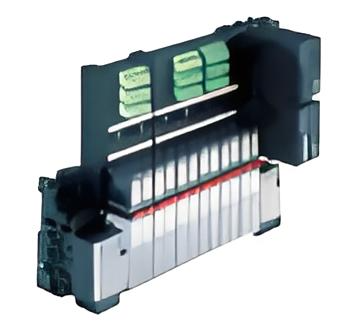

Remote Process Actuation Control System AirLINE
The externally piloted angle seat valve is operated with a single or double acting piston actuator. The actuator is available in two different materials, depending on the ambient temperature. High flow rates are attained with the
virtually straight flow path. The reliable self–adjusting packing gland provides high sealing integrity. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation or manual override.
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator Type 8640
Customized Pneumatic Systems Solutions for the Processing Industries
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator Type 8697

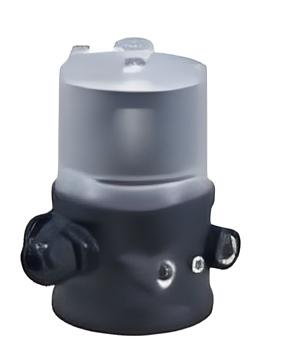

Pneumatic control for decentralised automation of ELEMENT process valves
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator Type 6012

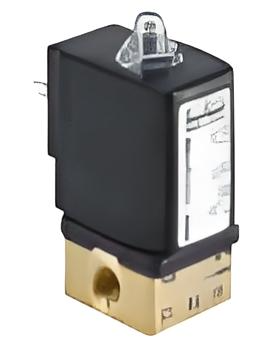

Plunger valve 3/2 way direct-acting
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator Type 6014
Plunger valve 3/2 way direct-acting
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator Type 8840

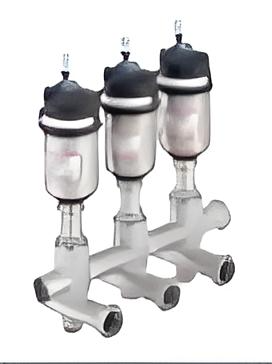

Modular process valve cluster - distribution and collecting

1. General Technical Data

Product properties

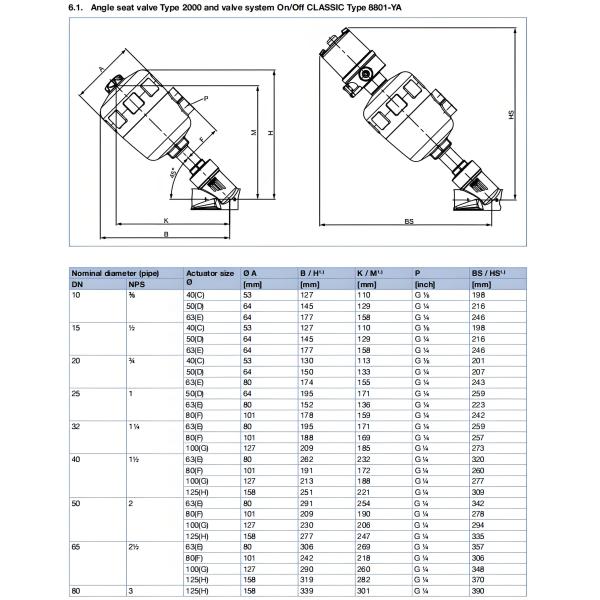

Dimensions More detailed infomation can befound in the chapter “6.Dimensions”on page 7.

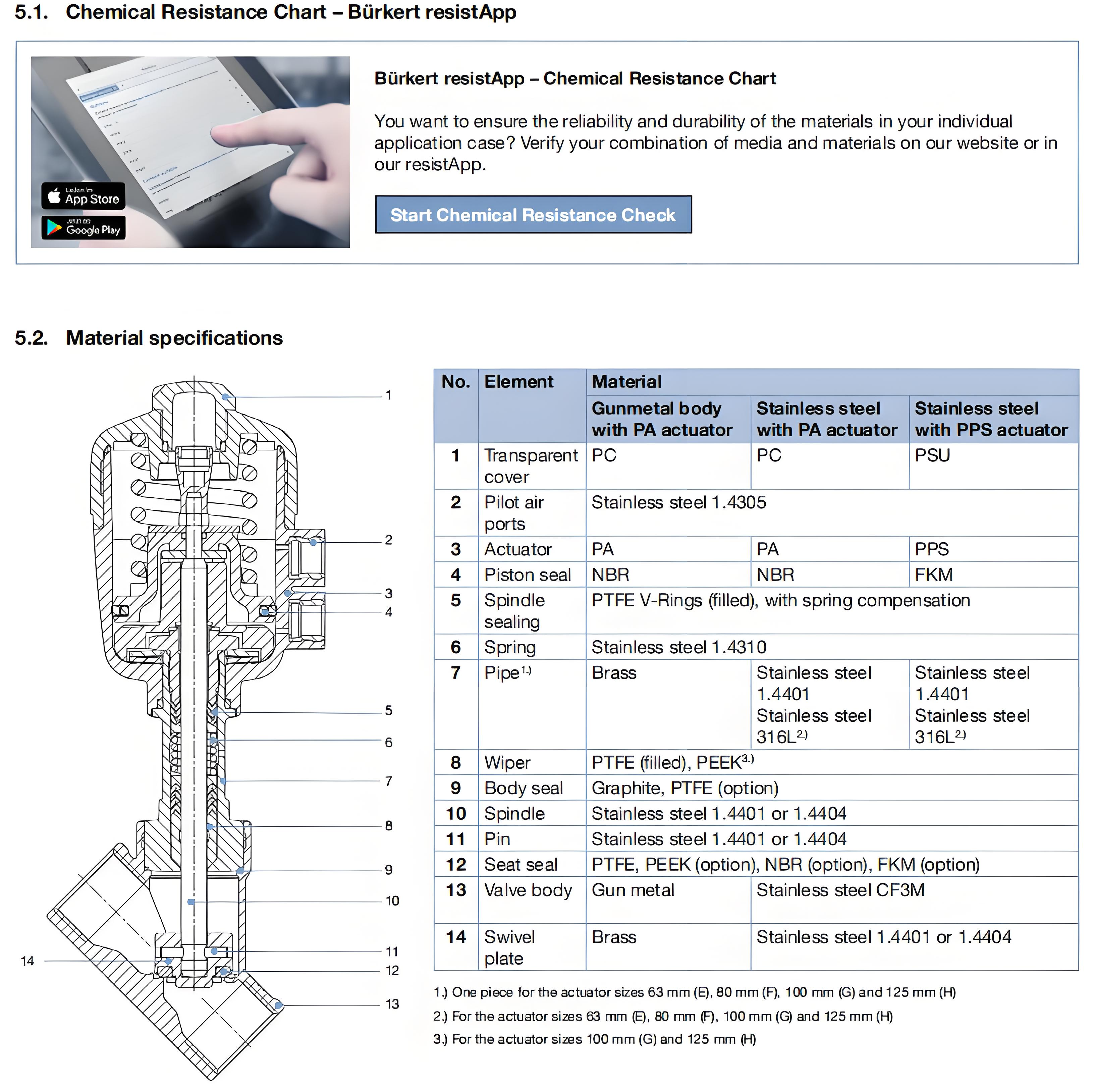

Material More detailed infomation can be found in the chapter"5.Materials"on page 6.
Design Angle seat valve
Port connection size DN10...DN80,NPS%...NPS 3

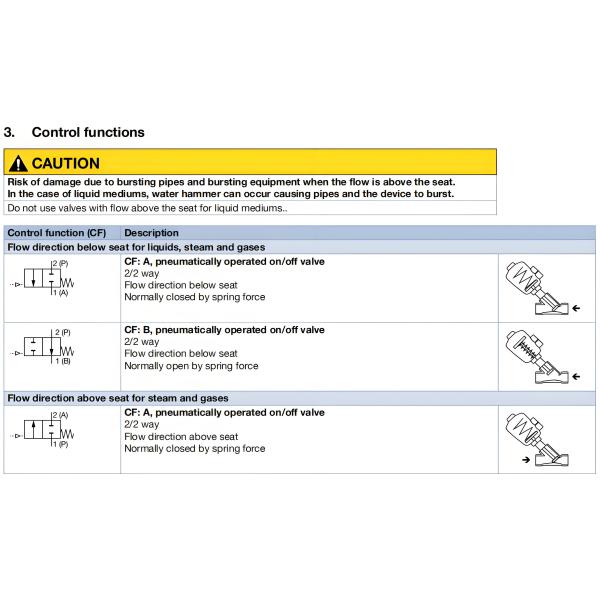

Safety setting in case of power failure Nomally closed (control function A),nomally open (control function B)

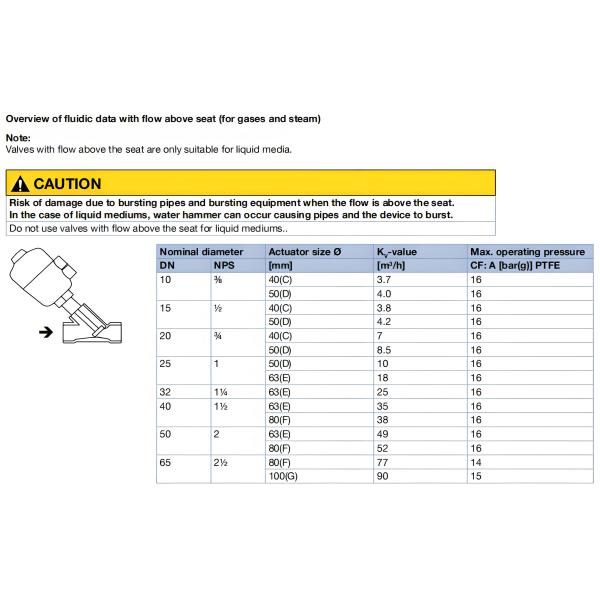

Flow direction Flow to open (below seat),Flow to close(aboveseat)
Performance data
Operating pressure ...25 bar(g),Vacuum up to-0.9 bar(g)(option,see "7.1.Fluidic data"on page 11
Nominal pressure PN25(DIN EN 1333),Class 150(DIN EN 1759)

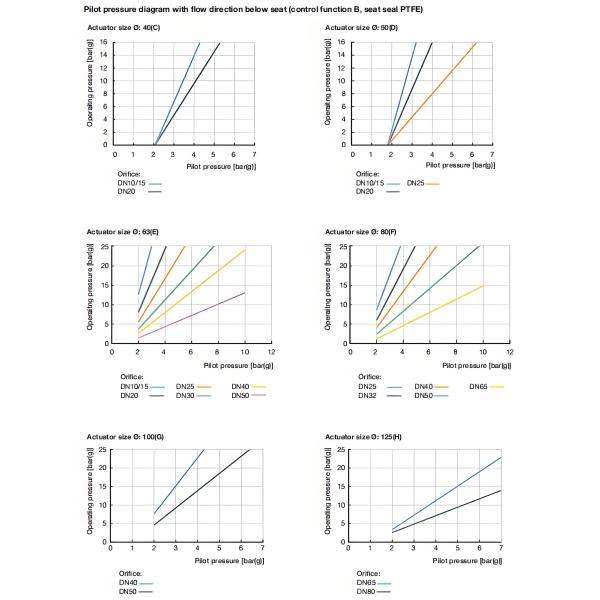

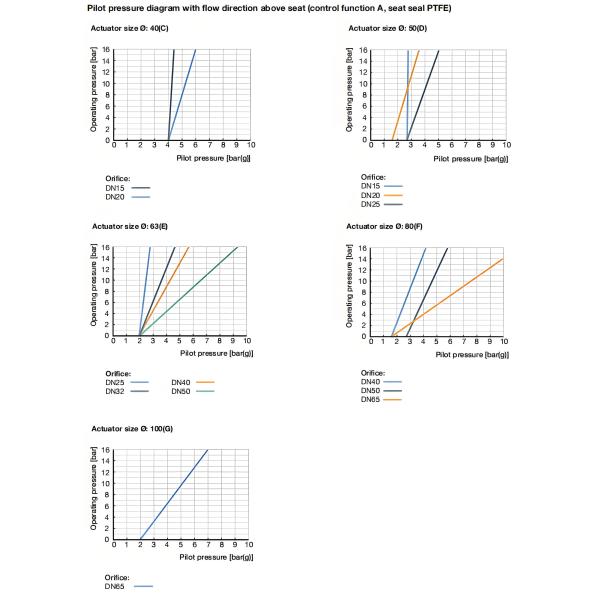

Pilot pressure 2...10 bar(g),see"7.1.Fluidic data"on page 11

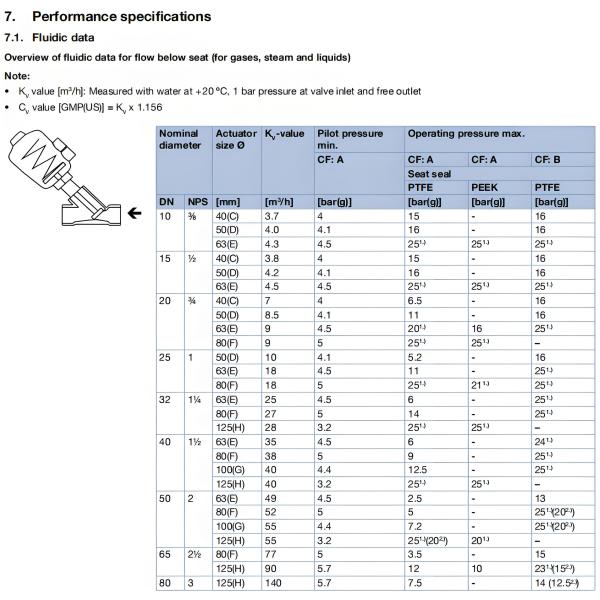

K,value 3.8...140 m³/h
Media data
Medium Steam,water,neutral gases,alcohol,oils,fuels,hydraulic fluids,salt solution,alkali
 solutions,organic solvents,for fuel gases of category I,Il andll aoc.to Gas Applianc-
 es Pegulation (EU)2016/426 and oxygen
Medium temperature -40...230°℃,see"7.2.Operating limits"on page 15
Viscosity Max.600 mm²/s
Control medium Air,neutral gases
Process/Port connection &communication
Port Connections
Threaded connection
G(DIN ISO 228-1)
NPT IASME B1.20.1)
Pc(ISO7-1)

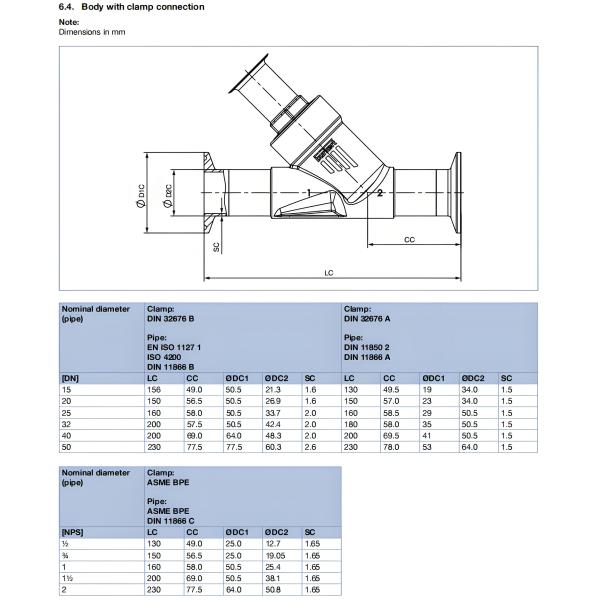

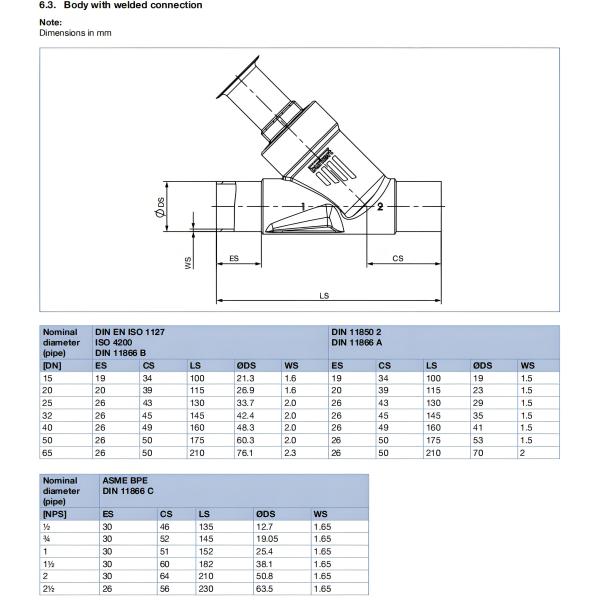

Welded connection DIN EN ISO1127/ISO 4200/DN11866 B
 DIN 118502/DIN 11866 A
 ASME BPE/DIN 11866 C
 SMS 3008
Clamp connection DIN 32676 B(pipe ISO 4200)
 DIN 32676A(pipe DIN 118502)
 ASME BPE
Pilot air port
Actuator size 40(C) Thread G%
Actuator size 50(D)...125(H) Thread G4

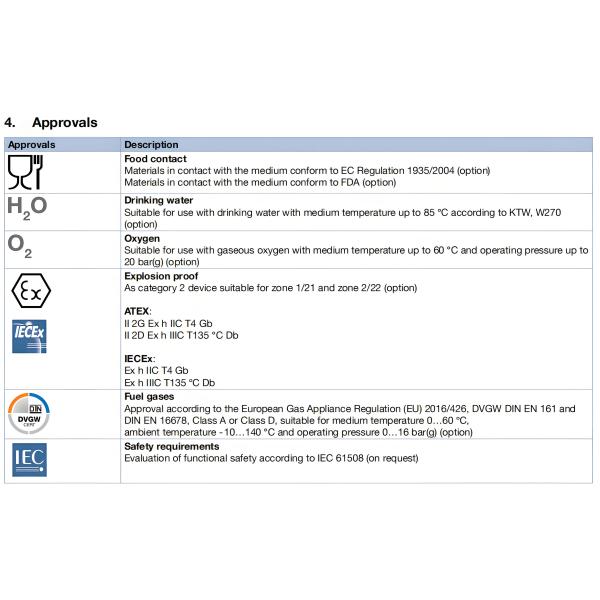

Approvals and certificates
Confomity Food contact 1935/2004(EG),FDA
 Drinking water
 Pressure Equipment Directive
 Gas Appliances Regulation
 Machinery Directive
Approvals Explosion proof ATEX/IECex
Material certificate 2.2,3.1
Environment and installation
Ambient temperature -10...140°Csee “2.Product versions”on page 4
Degree of protection IP67
Installation position As required,preferably with actuator upright
2.1. Gunmetal body with PA actuator
Product properties
Nominaldiame ter DN10...DN65,NPS%...NPS2
Performance data
Operating pressure 0...16 ban(g),vacuum up to -0.9 bar (gi(option),see 7.1.Huidic data"on page11
Maximum pilot pressure
Actuatorsize 40(C),50[D],
63E),80F),100(G)		 10 ban(g)
Actuatorsize 125H) 7 bang)
Media data
Medum temperature -40...180℃
Product connection
Port connection Threaded connection
Environment and installation
Ambient temperature

-10...60℃see “72.Operating limits”on page 15
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,SMS,RSMT,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?

Focus Point High Temperature Environment Countermeasures Extreme Cold Environment Countermeasures
Seals Fluororubber, PTFE Low-temperature nitrile, silicone rubber, polyurethane
Lubrication High-temperature synthetic grease (low volatility) Low-temperature grease (low pour point, low viscosity)
Air Supply Treatment Strengthen cooling, efficient water removal Ultra-low dew point drying (refrigeration + adsorption type), heat tracing
Metal Components Reserve expansion clearance Select materials with low-temperature toughness, prevent leakage due to cold shrinkage
Control Components High heat-resistant grade coils, heat dissipation, low power consumption Install insulation boxes, local heating, prevent cold condensation
Installation Keep away from heat sources, add heat insulation plates Avoid exposure to wind and snow, wrap with thermal insulation materials
