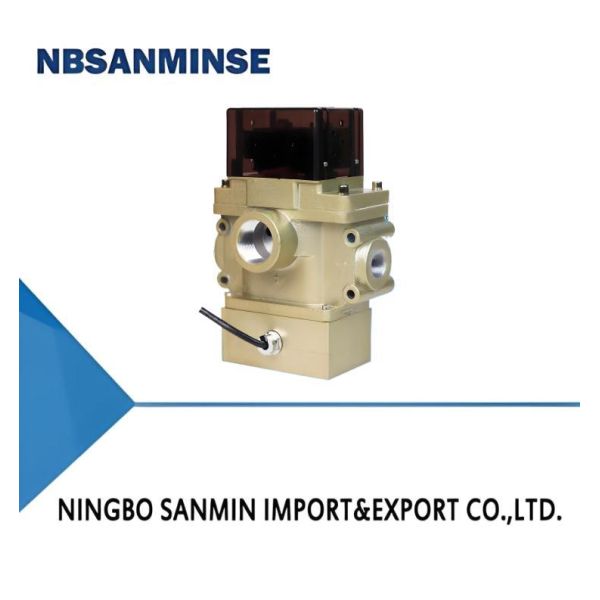

K23JSD-L Series double valves for press machine
K23JSD-L Series double valves for press machine
Specifications
Working temp :
-5 - 50（℃）
Power :
7.7
working pressure :
0.3 - 0.8（Mpa）
Holding Current :
0.32
Rated Voltage :
DC 24V
Brand Name :
NBSANMINSE
Model Number :
K23JSD-L
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Description
Features:
K23JSD-L15HSCOis the parallel flow duoble safe valveThis product integratestwo three-way solenoid valves with
the same function to operate simultaneously, greatly improving the accuracy and safety ofthe stamping machine's
aSafety double valves is an exclusive pneumatic element controlling the actions of the brake and cluth of a press
.when the controlling air pressure below the valveitself goes wrong,it makes presssure of the brake and clutch,then
sopping the press quickly to ensure safety ofthe equipment and personal.
Order Code:
K23JSD-L Series double valves for press machine
① Medium: Air
② Circuit Form: 2/3 Way
③ Valve Body Form: Poppet Type
④ Dual Valve
⑤ Control Form: Electric Control
⑥ Connection Type: Pipe Connection
⑦ Nominal Diameter: 15 G1/2, 20 G3/4, 25 G1, 32 G1-1/4, 40 G1-1/2
⑧ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V
Symbols:
K23JSD-L Series double valves for press machine
K23JSD-L Series double valves for press machine

K23JSD-L Series double valves for press machine

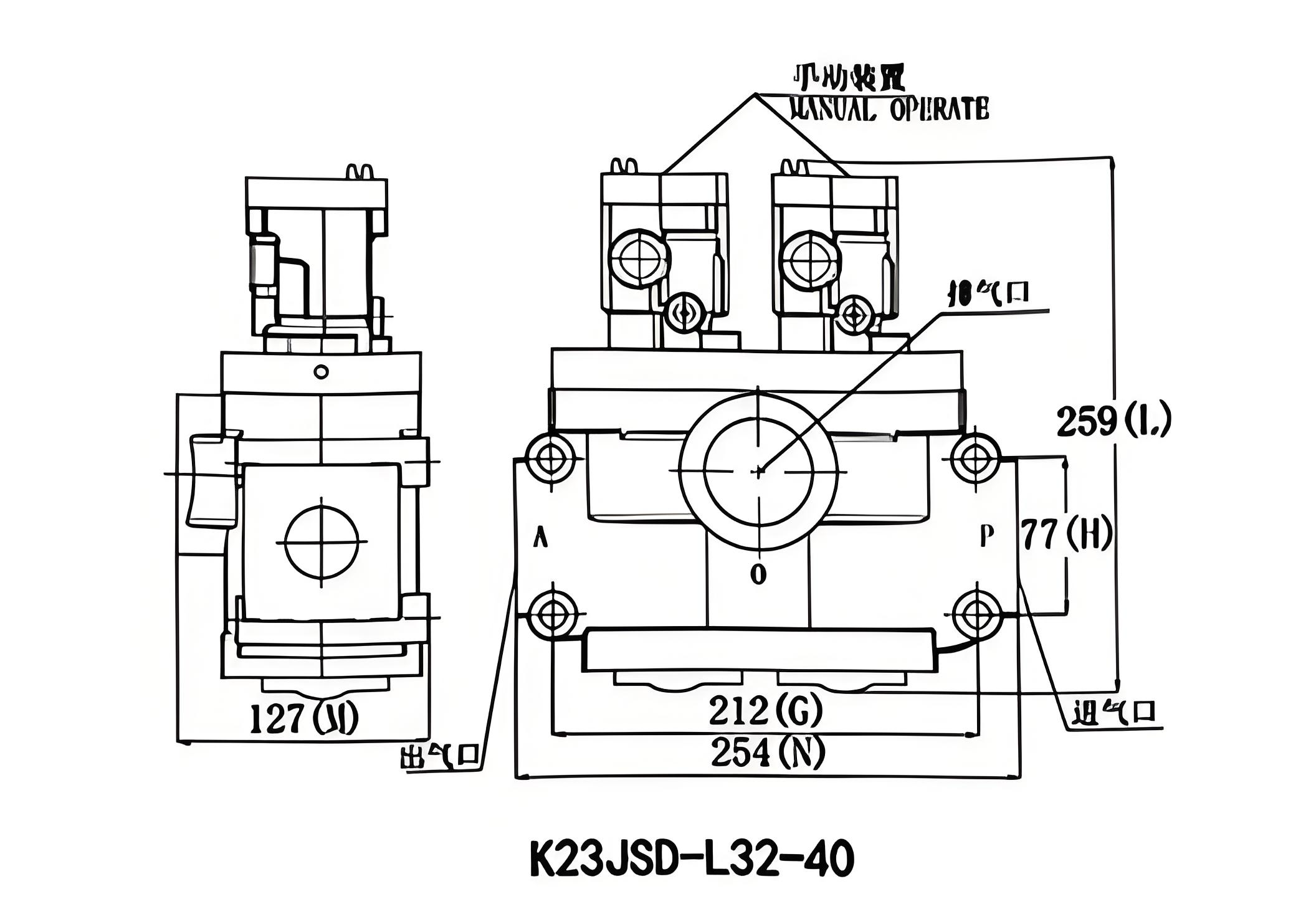

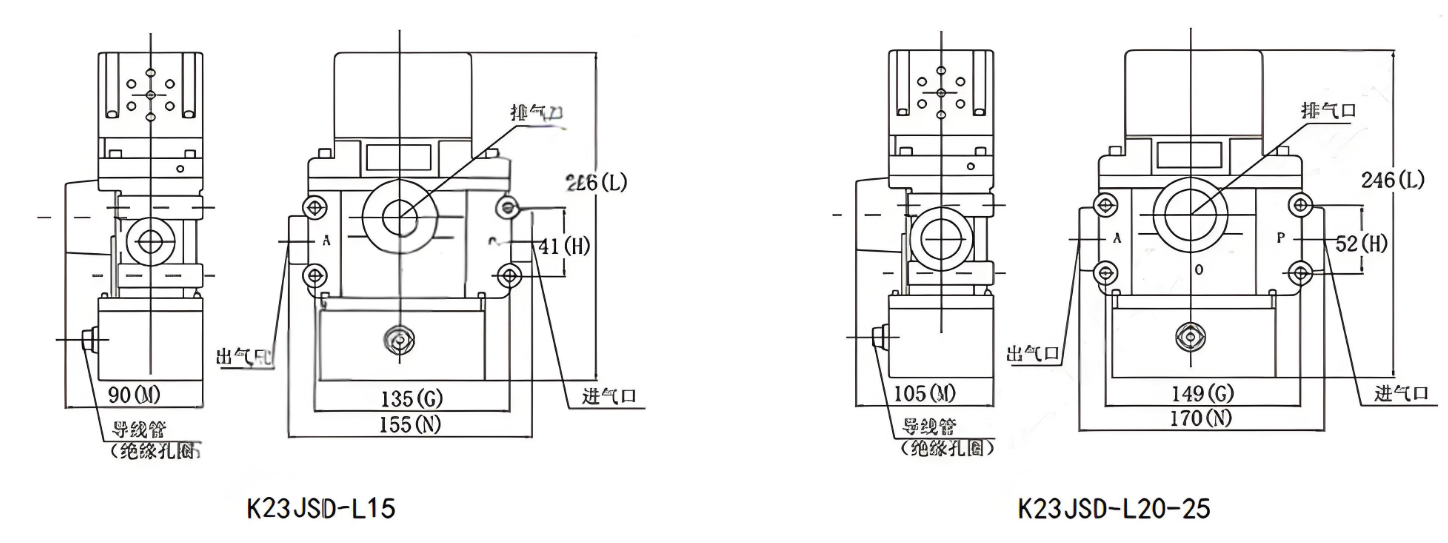

Outlook Dimension:
Type Nominal Dia A P 0 M N L G H
K23JSD-L15 15 G1/2 G1/2 G3/4 90 155 226 135 41
K23JSD-L20 20 G3/4 G3/4 G1-1/4 105 170 246 149 52
K23JSD-L25 25 G1 G1 G1-1/4 105 170 246 149 52
K23JSD-L32 32 G1-1/4 G1-1/4 G2 127 254 259 212 77
K23JSD-L40 40 G1-1/2 G1-1/2 G2 127 254 259 212 77
Specification:
Parameters Type K23JSD-L15 K23JSD-L20 K23JSD-L25 K23JSD-L32 K23JSD-L40
dia
15 20 25 30 40
port size P G1/2 G3/4 G1 G1-1/4 G1-1/2
A G1/2 G3/4 G1 G1-1/4 G1-1/2
0 G3/4 G1-1/4 G1-1/4 G2 G2
Range of working pressure(Hpa)
0.3-0.8
Working temperatureC)
-5~50
Direction changing Time(sec)
≤0.05 ≤0.07 ≤0.07 ≤0.10 ≤0.10

Effective sectional area Cv(mm²)

 P-A >30 >90 >90 >140 >140
A-0 ≥120 ≥360 ≥360 ≥560 >560
AC voltage:
Valve Type K23JSD-L K23JSD-L K23JSD-L K23JSD-L K23JSD-L K23JSD-L
Rated Voltage AC100V 50HZ AC100V 60HZ AC110V 60HZ AC200V 50HZ AC200V 60HZ AC220V 60HZ
Starting Current 0.29 0.25 0.27 0.14 0.12 0.13
Holding Current 0.15 0.12 0.15 0.08 0.06 0.07
Power Consumption (W) 8 7 9 8 7 9
DC voltage:
Valve Type K23JSD-L
Rated Voltage DC 24V
Holding Current 0.32
Power Consumption (W) 7.7

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,SMS,RSMT,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?

Focus Point High Temperature Environment Countermeasures Extreme Cold Environment Countermeasures
Seals Fluororubber, PTFE Low-temperature nitrile, silicone rubber, polyurethane
Lubrication High-temperature synthetic grease (low volatility) Low-temperature grease (low pour point, low viscosity)
Air Supply Treatment Strengthen cooling, efficient water removal Ultra-low dew point drying (refrigeration + adsorption type), heat tracing
Metal Components Reserve expansion clearance Select materials with low-temperature toughness, prevent leakage due to cold shrinkage
Control Components High heat-resistant grade coils, heat dissipation, low power consumption Install insulation boxes, local heating, prevent cold condensation
Installation Keep away from heat sources, add heat insulation plates Avoid exposure to wind and snow, wrap with thermal insulation materials
