Cylinder Motion Pneumatic Mechanical Valve XQ Series ISO9001 Certification
Cylinder Motion Pneumatic Mechanical Valve XQ Series ISO9001 Certification
Cylinder Motion Pneumatic Mechanical Valve XQ Series ISO9001 Certification
Cylinder Motion Pneumatic Mechanical Valve XQ Series ISO9001 Certification
Cylinder Motion Pneumatic Mechanical Valve XQ Series ISO9001 Certification
Cylinder Motion Pneumatic Mechanical Valve XQ Series ISO9001 Certification
Specifications
Brand Name :
NBSANMINSE
Model Number :
XQ0600 / 1000 / 1500
Certification :
ISO9001
Place of Origin :
China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
Negotiation
Delivery Time :
Negotiation
Packaging Details :
Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Model :
XQ0600 , XQ1000 , XQ1500
Thread :
1 / 8 " , 1 / 4 " , 3 / 8 " , 1 / 2 "
Port Size :
6 , 8 , 10 , 15
Flow :
≥ 0 . 5 / 0 . 9 / 2 . 5 / 4 . 5 m ³ / min
Temperature :
5 ~ 60 ℃ , -35 ~ 60 ℃
Pressure :
0 . 2 ~ 1 . 0MPa , 1 . 5MPa
Description

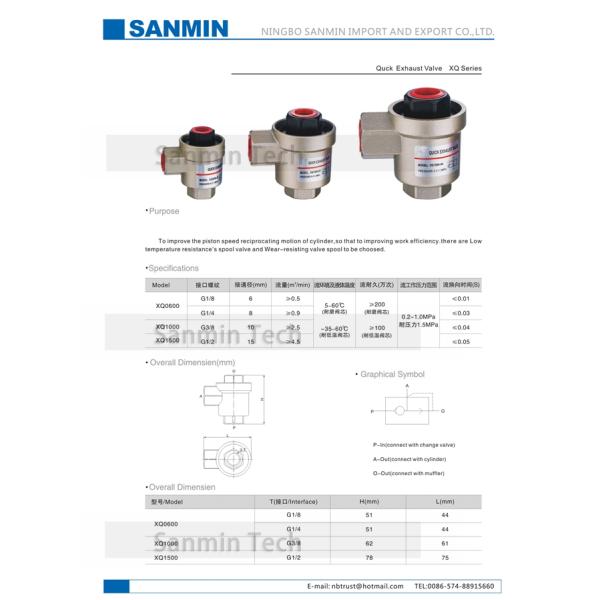

Cylinder Motion Pneumatic Mechanical Valve XQ Series ISO9001 Certification​

Purpose

To improve the piston speed reciprocating motion of cylinder , so that to improving work effciency , there ara Low temperature resistance ' s spool valve and Wear - resisting valve spool to be choosed .

Specifications

Model Thread Port Size(mm) Flow(m³/min) Temperature Pressure (S)
XQ0600 G1/8 6 ≥0.5

5-60℃

-35℃-60℃

 0.2-1.0Mpa
1.5Mpa		 ≤0.01
XQ0600 G1/4 8 ≥0.9 ≤0.03
XQ1000 G3/8 10 ≥2.5 ≤0.04
XQ1500 G1/2 15 ≥4.5 ≤0.05

Overall Diamensien

Model Thread H(mm) L(mm)
XQ0600 G1/8 51 44
XQ0600 G1/4 51 44
XQ1000 G3/8 62 61
XQ1500 G1/2 78 75

Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .

3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
6: One year quality guarantee

FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection

Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.

Cylinder Motion Pneumatic Mechanical Valve XQ Series ISO9001 Certification
