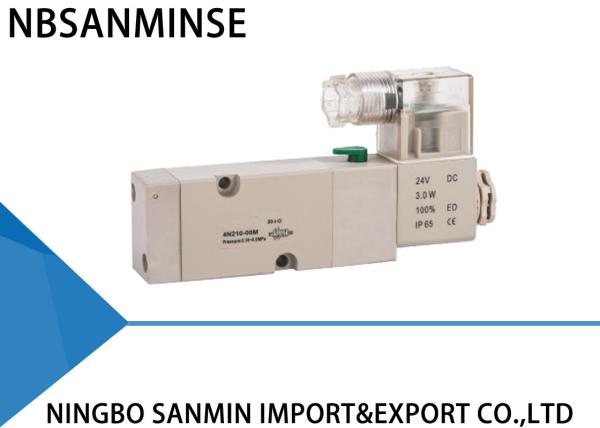

Professional Namur Mount Solenoid Valve Pneumatic 0. 15MPa - 0. 8MPa Pressure

4N210 – 06M , 4N230C – 06M , 4N230E – 06M , 4N210 – 08M , 4N230C – 08M , 4M230E – 08M ,

4N220 – 06M , 4N230P – 06M , 4N220 – 08M , 4N230P – 08M

Specification

Model : 4N210 – 06M , 4N230C – 06M , 4N230E – 06M , 4N210 – 08M , 4N230C – 08M ,

4N230E – 08M , 4N220 – 06M , 4N230P – 06M , 4N220 – 08M , 4N230P – 08M

Position and Way No. : Two - Position Five - Way Three - Position Five - Way

Effective section area : 14mm ² ( CV = 0 . 78 ) 16mm ² ( CV = 0 . 89 ) 12mm ² ( CV = 0 . 67 )

Port Size : Air Inlet = Exhaust = G1 / 8 ” Air Inlet = G1 / 4 ” Exhaust = G1 / 8 ”

Working Medium : 40 Micron Filtered Air

Motion Pattern : Inner Guide Type

Working Pressure : 0 . 15 ~ 0 . 8MPa

Max . pressure Resistance : 1 . 2MPa

Temperature : - 5 ~ 60 ℃

Power Consumption : - 15 % ~ + 10 %

Power Consumption : AC : 3 . 5VA , DC : 3W

Insulation & Protection Class : F Class . IP65

Wiring Form : Lead Wire Or Connector Type

Highest Action Frequency : 5 Cycle / Sec

Shortest Excitation Time : 0 . 05 Second

Life : 20 Million

Why choose us

1: High quality with competitive price .
2: Sample order & small quantity order is acceptable .

3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: One year quality guarantee

FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days . If you need emergency products , we can speed up the production of the first arrangement .

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any color .

Q: Do you company have specialized technical personnel ?
A: Do you company have specialized technical personnel , they can design the product which the most meet your requirements .

Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Our products are high quality with 12 month guarantee ,and support paypal payment.
