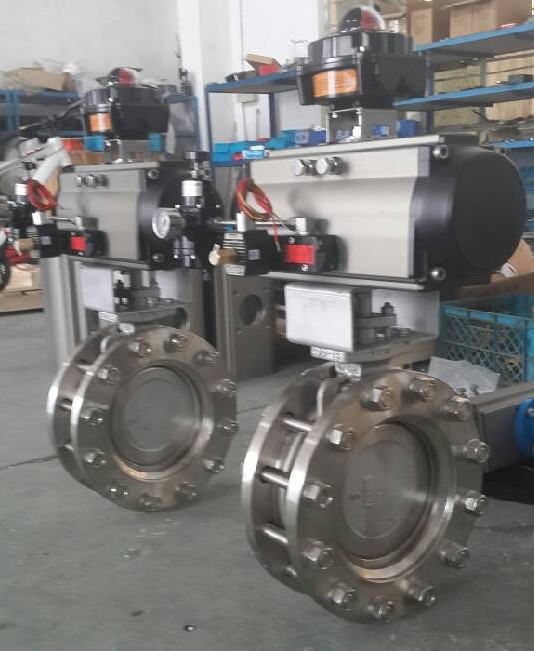

OEM Spring Return Pneumatic Actuator NAMUR ISO5211 DIN3337 Standards Actuator For Butterfly Valve
OEM Spring Return Pneumatic Actuator NAMUR ISO5211 DIN3337 Standards Actuator For Butterfly Valve
OEM Spring Return Pneumatic Actuator NAMUR ISO5211 DIN3337 Standards Actuator For Butterfly Valve
OEM Spring Return Pneumatic Actuator NAMUR ISO5211 DIN3337 Standards Actuator For Butterfly Valve
OEM Spring Return Pneumatic Actuator NAMUR ISO5211 DIN3337 Standards Actuator For Butterfly Valve
OEM Spring Return Pneumatic Actuator NAMUR ISO5211 DIN3337 Standards Actuator For Butterfly Valve
Specifications
Brand Name :
OEM
Model Number :
AT
Certification :
CE,ATEX,ISO9001.SIL3
Place of Origin :
China
MOQ :
1pcs
Price :
10-2000USD
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
3-7 days
Packaging Details :
Foam+Carton Box+Wooden Case
Product Name :
Spring Return Pneumatic Actuator
Body Material :
Aluminum Alloy
Power :
Pneumatic
Size :
32 to 400
Type :
Double Action .Single Action
Structure :
Rack and Pinion
Mounting :
ISO5211, DIN3337, Namur Standards
Valve Compatibility :
Ball Valve .Butterfly Valve
Description
OEM Spring Return Pneumatic Actuator NAMUR ISO5211 DIN3337 Standards For Valves
Product Specifications
Pneumatic actuators are highly powerful, reliable, and compact units with fast or slow 90° rotation. They are manufactured in both single-acting and double-acting versions. In addition to the standard manufacturing process, actuators can also be produced with ± 5% stroke adjustment, 180° rotation, and three closing positions (closed, open, half-open). Suitable for use with ball valves, butterfly valves, threads, and dampers.
Attribute Value
Product Name OEM Spring Return Pneumatic Actuator NAMUR ISO5211 DIN3337 Standards For Valves
Body Material Aluminum Alloy
Power Pneumatic
Size 32 to 400
Type Double Action / Single Action
Structure Rack and Pinion
Mounting ISO5211, DIN3337, Namur Standards
Valve Compatibility Ball Valve, Butterfly Valve
Detailed Description
Material: Extruded Aluminum alloy
Rotary Angle: 0~90 degree
Structure: rack and pinion rotary actuator
Working Pressure: 2~8bar
Surface Treatment: hard anodizing
Working Temperature:
  • Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F)
  • High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F)
  • Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F)
Connection: NAMUR, ISO5211 and DIN3337
Application: ball valve, butterfly valve, and rotary machine
Cup Color: grey, black, sky blue, dark blue, red, orange
Key Features
  • Pneumatic rotary actuator designed for ball valves and butterfly valves
  • Low cost, compact design with long working life
  • Available in single acting (spring return) or double acting configurations
  • Multiple color options: orange, blue, black, dark gray (OEM colors available)
  • Working pressure: 0.3~0.8MPa
  • Bottom connection: ISO 5211
  • Solenoid valve standard: Namur
  • Compatible accessories: limit switch box, solenoid valve, positioner
  • Full conformance to ISO5211, DIN3337, VDINDE-3854, and NAMUR specifications
  • Extruded high intensity aluminum body with hard anodized coating
  • High quality bearings for low friction and silent operation
  • External stroke adjustment bolts for precise ±5° adjustment
  • Pre-compressed load spring for safe mounting and tear down
Technical Dimensions
Model A B C D H × I G N J K L M Air connection
ATO32 110 45 45 20 50 × 25 12 9 Æ36 M5 × 7.5 G1/8"
Applications

AT series Pneumatic Actuators are designed for use in various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions, both indoor and outdoor.

Ideal for auto-control applications in:

  • Electric power
  • Petrochemical
  • Metallurgy
  • Oil and gas
  • Water treatment
  • Chemical processing
  • Mining
  • Power generation
  • Pharmaceutical
  • Food processing
