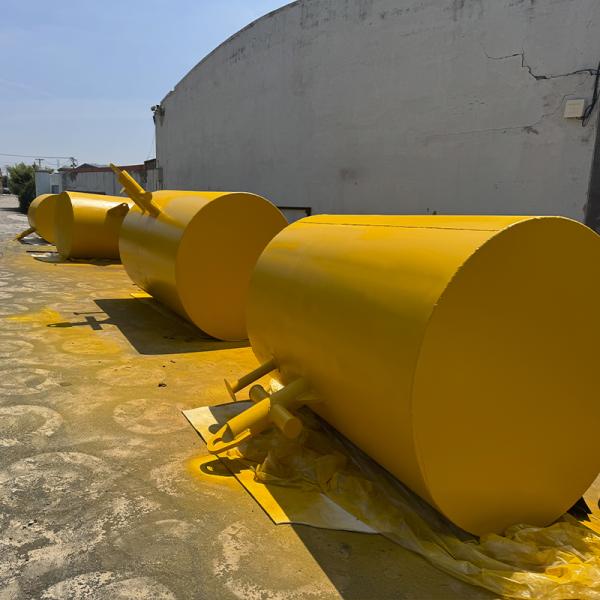

Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Specifications
Brand Name :
Henger
Model Number :
004
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1
Price :
500
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
50 pcs/week
Delivery Time :
15-30 working days
Packaging Details :
nude packing
Product name :
Anchor pendant buoy
Material :
Steel, EVA filling
Size :
Customized Size
Warranty :
12 months
Color :
Customized Color
Logo service :
Customized
Trademark :
Henger
Origin :
China
Design :
Modular Design
Description

Modular Design Large-Diameter Floating Mooring Buoy

Product Description

Steel mooring buoys are indispensable anchoring infrastructure within port facilities, engineered with precision to reliably accommodate vessels across a broad range of tonnages. Their operational design is characterized by inherent convenience and adaptability: when deployed in anchorage areas, they streamline mooring procedures and adeptly adapt to fluctuations in vessel traffic volumes.

Beyond their primary anchoring function, these buoys act as enablers of critical maritime operations. They provide a stable platform for cargo lightering—facilitating transshipment between vessels to circumvent berth constraints—and support on-site vessel maintenance and repair work. This capability obviates the need to occupy valuable dry dock resources or disrupt regular port workflows.

In essence, the multifunctionality and operational efficiency of steel mooring buoys render them irreplaceable, underpinning the seamless, agile functioning of modern port operations.

Steel Mooring Buoy Technical Parameter

Model Net Buoyancy D×H (m) Suitable for Ship Tonnage (t)
HESMB 2.0 3 2.0×1.74 <2000
HESMB 2.6 6 2.6×2.27 <5000
HESMB 3.6 19 3.6×2.14 <10000
HESMB 5.0 28.5 5.0×3.4 <12000
HESMB 5.5 31.2 5.5×3.0 <100000
HESMB 6.0 34.2 6.0×3.2 <150000
HESMB 8.0 40.3 8.0×2.46 <250000

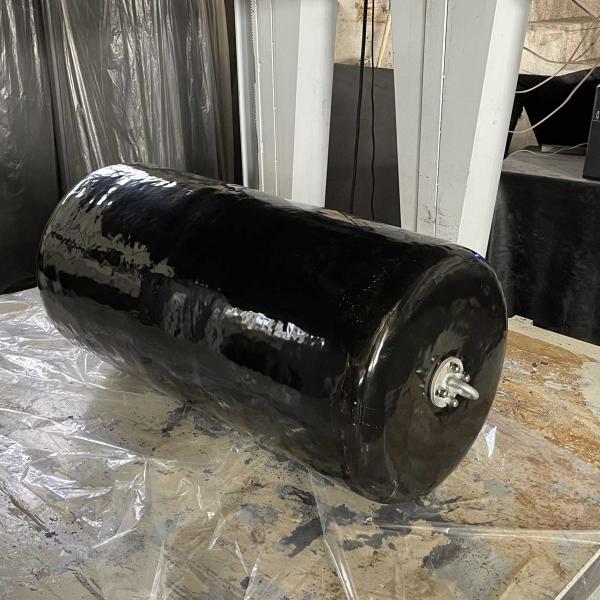

Anchor Pendant Buoy


Anchor pendant buoys are available in a wide range of sizes, with choices of suitcase type, modular and non-modular type, custom-made and standard configurations. All are supplied with removable central steel work configured as per to customer’s requirements – typical handing crucifix/pad eye arrangement or a through haws e for use with anchor wire rather than chain.
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors
Steel Mooring Buoy with EVA Filling Custom Sizes and Colors

Anchor Pendant Buoy Technical Parameters

Model

 Reserve Buoyancy
(kg)		 Diameter
(mm)		 Float Length
(mm)		 Overall Length
(mm)		 Weight
(kg)

HE-APB1000

 1000 1350 1100 1900 300

HE-APB2000

 2000 1500 1500 2600 500

HE-APB3000

 3000 1850 1500 2600 600

HE-APB4000

 4000 2000 1900 2900 850

HE-APB6000

 6000 2500 2200 3250 1000

HE-APB8000

 8000 2500 2200 3250 1250

HE-APB10000

 10000 3000 2200 3500 1550

HE-APB20000

 20000 3500 3000 4200 2400


*buoy sizes and buoyancy can be customized according to customer design.
