Customized Marine Mooring Boat Buoys Customized Color And Size Options
Customized Marine Mooring Boat Buoys Customized Color And Size Options
Customized Marine Mooring Boat Buoys Customized Color And Size Options
Customized Marine Mooring Boat Buoys Customized Color And Size Options
Customized Marine Mooring Boat Buoys Customized Color And Size Options
Customized Marine Mooring Boat Buoys Customized Color And Size Options
Customized Marine Mooring Boat Buoys Customized Color And Size Options
Customized Marine Mooring Boat Buoys Customized Color And Size Options
Customized Marine Mooring Boat Buoys Customized Color And Size Options
Customized Marine Mooring Boat Buoys Customized Color And Size Options
Specifications
Brand Name :
Henger
Model Number :
004
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
50 pcs/week
Delivery Time :
15-30 working days
Packaging Details :
nude packing
Product name :
Anchor pendant buoy
Material :
Steel, EVA filling
Size :
Customized Size
Warranty :
12 months
Color :
Customized Color
Logo service :
Customized
Description

High Quality Mooring Buoy Customized Marine Steel Boat Buoys

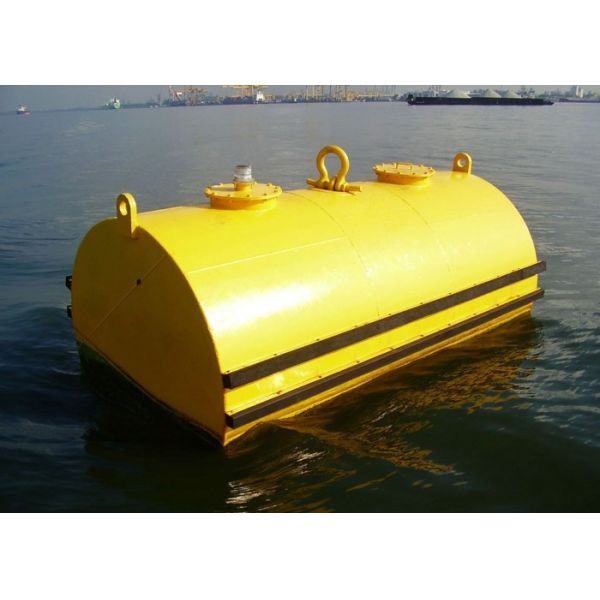

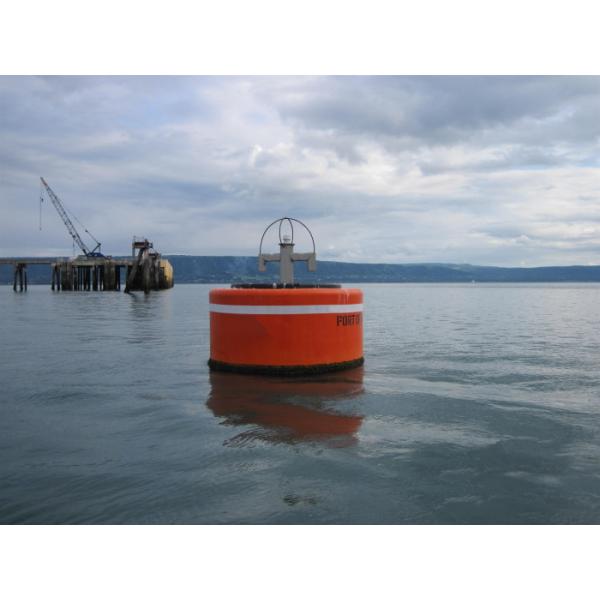

1.Introduction to Steel Mooring Boat

Steel mooring buoys are engineered to meet the anchoring requirements of ships across various tonnages. Their application in anchorage operations brings remarkable convenience and flexibility—enabling activities like cargo lightering, ship maintenance, and repair work to be carried out directly at the berth. As such, they stand as a vital anchoring facility within port systems.

Customized Marine Mooring Boat Buoys Customized Color And Size Options Customized Marine Mooring Boat Buoys Customized Color And Size Options


2.Steel Mooring Buoy Parameter Table


Model Net Buoyancy D×H (m) Suitable for Ship Tonnage (t)
HESMB 2.0 3 2.0×1.74 <2000
HESMB 2.6 6 2.6×2.27 <5000
HESMB 3.6 19 3.6×2.14 <10000
HESMB 5.0 28.5 5.0×3.4 <12000
HESMB 5.5 31.2 5.5×3.0 <100000
HESMB 6.0 34.2 6.0×3.2 <150000
HESMB 8.0 40.3 8.0×2.46 <250000


3.Anchor Pendant Buoy

Anchor pendant buoys are available in a wide range of sizes, with choices of suitcase type, modular and non-modular type, custom-made and standard configurations. All are supplied with removable central steel work configured as per to customer’s requirements – typical handing crucifix/pad eye arrangement or a through haws e for use with anchor wire rather than chain.

Customized Marine Mooring Boat Buoys Customized Color And Size Options
Customized Marine Mooring Boat Buoys Customized Color And Size Options
Customized Marine Mooring Boat Buoys Customized Color And Size Options

4.Anchor Pendant Buoy Technical Parameters


Model


 Reserve Buoyancy
(kg)		 Diameter
(mm)		 Float Length
(mm)		 Overall Length
(mm)		 Weight
(kg)


HE-APB1000


 1000 1350 1100 1900 300


HE-APB2000


 2000 1500 1500 2600 500


HE-APB3000


 3000 1850 1500 2600 600


HE-APB4000


 4000 2000 1900 2900 850


HE-APB6000


 6000 2500 2200 3250 1000


HE-APB8000


 8000 2500 2200 3250 1250


HE-APB10000


 10000 3000 2200 3500 1550


HE-APB20000

 20000 3500 3000 4200 2400


*buoy sizes and buoyancy can be customized according to customer design.
You can contact me at any time if you need it. Thank you for reading.
