BFEC MF-ZF-40S Flanged Remote Pilot Pulse Jet Valve For Dust Collector
BFEC MF-ZF-40S Flanged Remote Pilot Pulse Jet Valve For Dust Collector
Specifications
Brand Name :
BRANDO
Model Number :
MF-ZF-40S
Certification :
None
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Product Name :
Pulse Jet Valve
Valve Type :
Right Angle, Flanged Inlet
Port Size :
1-1/2''
Body Material :
Aluminum
Diaphragm Material :
NBR (Standard), FKM (Optional)
Working Pressure :
0.1 To 0.8 MPa
Application :
Dust Collector
Description

BFEC MF-ZF-40S Flanged Remote Pilot Pulse Jet Valve For Dust Collector


Application:


Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.


Different design of pulse valve:


1. Threaded Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type


Technical Data of ZF Type Flanged Pulse Jet Valves:

Integral Pilot
DMF-ZF-25
DMF-ZF-40S
Remote Pilot
MF-ZF-25
MF-ZF-40S
Connection Size (mm)
34
48
Diaphragm Number
1
2
Diaphragm Material
NBR (Standard), FKM (Optional)
Body Material
Aluminum
Coil Voltage
24VDC, 24VAC, 110VAC, 220VAC
Pressure Range
0.1 to 0.8 MPa


DMF-ZF-25 Dimension:

BFEC MF-ZF-40S Flanged Remote Pilot Pulse Jet Valve For Dust Collector


Video of BFEC Dust Collector Pulse Jet Valves:


Related Products:

BFEC MF-ZF-40S Flanged Remote Pilot Pulse Jet Valve For Dust Collector BFEC MF-ZF-40S Flanged Remote Pilot Pulse Jet Valve For Dust Collector BFEC MF-ZF-40S Flanged Remote Pilot Pulse Jet Valve For Dust Collector BFEC MF-ZF-40S Flanged Remote Pilot Pulse Jet Valve For Dust Collector

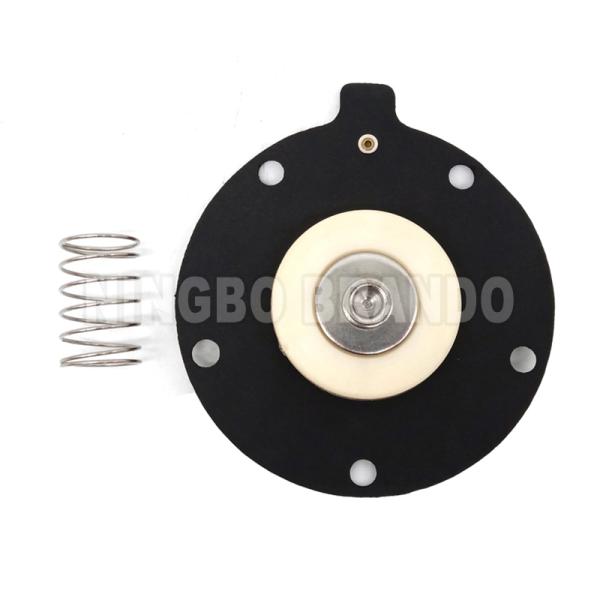

Solenoid Coil Solenoid Armature Diaphragm Pulse Controller
