Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch
Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch
Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch
Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch
Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch
Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch
Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch
Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch
Specifications
Brand Name :
BRANDO
Model Number :
FP25
Certification :
None
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Product Name :
Pulse Jet Valve
Port Size :
1''
Body Material :
Aluminum
Diaphragm Material :
NBR (Standard), FKM (Optional)
Working Pressure :
0.5 To 7.5 Bar
Voltage :
24VDC, 24VAC, 110VAC, 220VAC
Application :
Dust Collector
Description

Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch



Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.


Technical Data:

Integral Pilot
FP20
FP25
FP40
FP55
FP65
Remote Pilot
FM20
FM25
FM40
FM55
FM65
Port Size
3/4''
1''
1-1/2''
2''
2-1/2''
Diaphragm Number
1
2
Pipe Connection
Threaded
Body Material
Diecast Aluminum
Diaphragm Material
NBR (Standard), FKM (Optional)
Working Pressure
0.5 to 7.5 bar
Voltage
24VDC, 24VAC, 110VAC, 220VAC

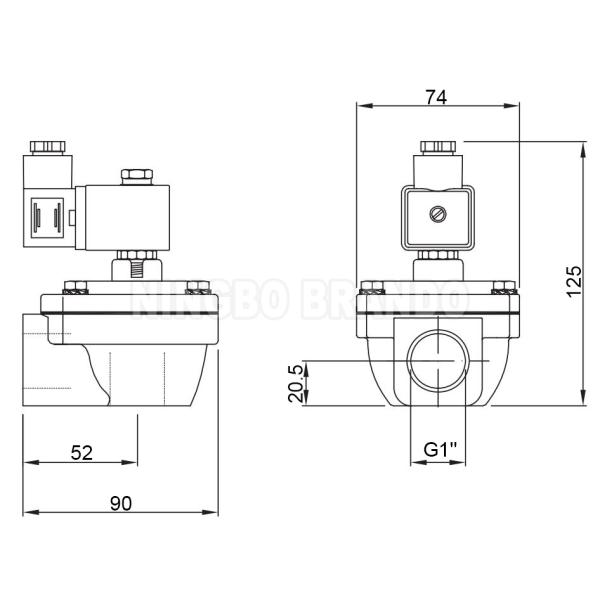

FP25 Dimension:

Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch


Related Products:

Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch
Coil Armature Diaphragm Pulse Controller


Production Show:

Turbo Type FP25 Solenoid Diaphragm Pulse Valves for Dust Collector 1Inch


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing
