AC BC Series FRL Combination Air Treatment Processing Filter Regulator Lubricator
AC BC Series FRL Combination Air Treatment Processing Filter Regulator Lubricator
AC BC Series FRL Combination Air Treatment Processing Filter Regulator Lubricator
AC BC Series FRL Combination Air Treatment Processing Filter Regulator Lubricator
AC BC Series FRL Combination Air Treatment Processing Filter Regulator Lubricator
AC BC Series FRL Combination Air Treatment Processing Filter Regulator Lubricator
Specifications
Brand Name :
BRANDO
Model Number :
AC, BC
Certification :
None
Place of Origin :
CHINA
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Product Name :
Filter Regulator Lubricator
Port Size :
1/8'', 1/4'', 3/8'', 1/2''
Model :
AC1500, AC2000, BC2000, BC3000, BC4000
Filtering Grade :
40 μm Or 5 μm
Max Pressure :
1.0Mpa (145Psi)
Proof Pressure :
1.5Mpa (215Psi)
Recommended Lubricant :
ISO VG 32 Or Equivalent
Capacity Of Drain Bowl :
15CC, 60CC
Capacity Of Oil Bowl :
25CC, 90CC
Description

AC BC Series FRL Combination Air Treatment Processing Filter Regulator Lubricator


Check out the air line filter, regulator and lubricator modular combinations at BRANDO. The 2-pc. units combine the filter/regulator with a lubricator, and 3-pc. units consist of a filter, regulator and lubricator. Combinations include mounting brackets and pressure gauges. Choose from 2-pc. and 3-pc. modular units with polycarbonate, die cast zinc and metal bowls. Find the type and size you need in a high-quality filter, regulator and lubricator modular combination. Shop BRANDO today!


Specification of AC, BC series Filter Regulator Lubricator:

Model AC1500 AC2000 BC2000 BC3000 BC4000
Fluid Air
Port Size 1/8'' 1/4'' 1/4'' 3/8'' 1/2''
Filtering Grade 40μm or 5μm
Pressure Range

Semi-auto and automatic drain: 0.15 to 0.9 MPa (20 to 130 psi)

Manual drain: 0.5 to 0.9 MPa (7 to 130 psi)
Max Pressure 1.0 MPa (145 psi)
Proof Pressure 1.5 MPa (215 psi)
Temperature Range -5 to 70℃ (unfreeze)
Capacity of drain bowl 15CC 60CC
Capacity of oil bowl 25CC 90CC
Recommand lubricant ISO VG 32 or equivalent
Constitute Filter AF1500 AF2000 BF2000 BF3000 BF4000
Regulator AR1500 AR2000 BR2000 BR3000 BR4000
Lubricator AL1500 AL2000 BL2000 BL3000 BL4000

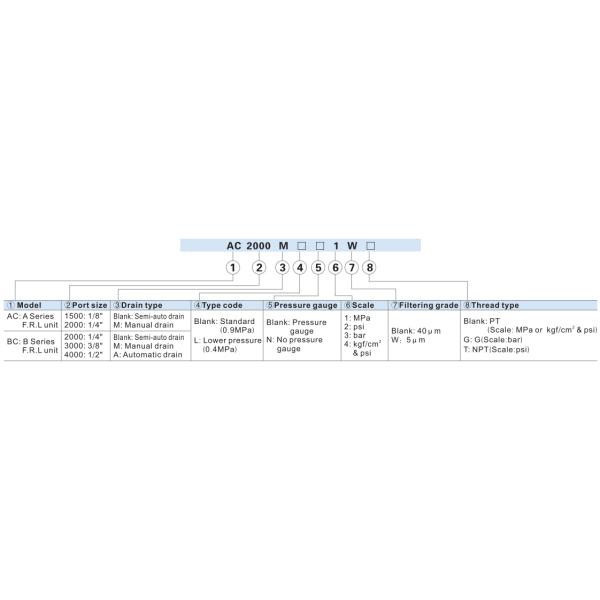

Ordering Code of AC, BC series Filter Regulator Lubricator:

AC BC Series FRL Combination Air Treatment Processing Filter Regulator Lubricator

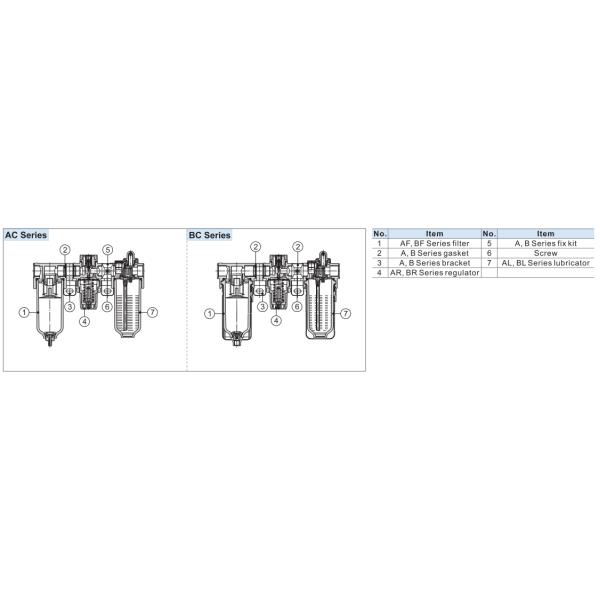

Inner Structure of AC, BC series Filter Regulator Lubricator:

AC BC Series FRL Combination Air Treatment Processing Filter Regulator Lubricator

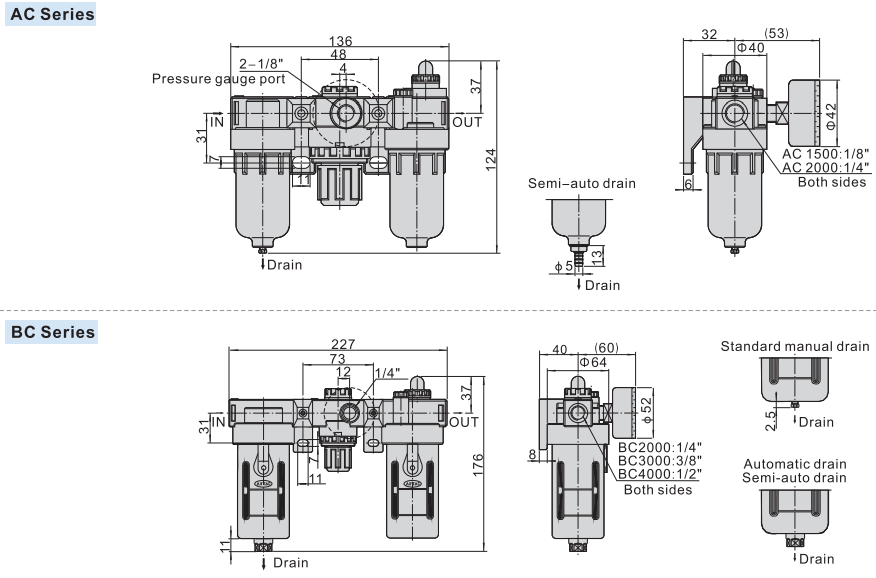

Dimension of AC, BC series Filter Regulator Lubricator:

AC BC Series FRL Combination Air Treatment Processing Filter Regulator Lubricator



Other pneumatic products BRANDO supply:


2/2 Way Pneumatic Valves 3/2 Way Pneumatic Valves 5/2 Way Pneumatic Valves 5/3 Way Pneumatic Valves
Namur Solenoid Valves Air Pilot Valves Pneumatic Cylinders Silencers and Fittings
AC BC Series FRL Combination Air Treatment Processing Filter Regulator Lubricator AC BC Series FRL Combination Air Treatment Processing Filter Regulator LubricatorAC BC Series FRL Combination Air Treatment Processing Filter Regulator Lubricator
