AC3000-02 1/4'' SMC Pneumatic Filter Regulator Lubricator
AC3000-02 1/4'' SMC Pneumatic Filter Regulator Lubricator
AC3000-02 1/4'' SMC Pneumatic Filter Regulator Lubricator
AC3000-02 1/4'' SMC Pneumatic Filter Regulator Lubricator
Specifications
Brand Name :
BRANDO
Model Number :
AC3000-02
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
4 to 7 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
Pneumatic Filter Regulator Lubricator
Fluid :
Air
Port Size :
1/4''
Filtration :
25μm
Max Pressure :
1.0 MPa
Proof Pressure :
1.5 MPa
Recommended Lubricant :
ISO VG 32
Drain Type :
Differential Drain, Automatic Drain
Description

AC3000-02 1/4'' SMC Type Pneumatic Filter Regulator Lubricator Air Source Treatment

Pneumatic filter regulator lubricator (FRL) is used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. Filters, regulators, and lubricators can be bought individually or as a package.

1. Filter: remove water, dirt and other harmful debris from an air system. This is often the first step in improving the air quality.

2. Regulator: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.

3. Lubricator: reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.

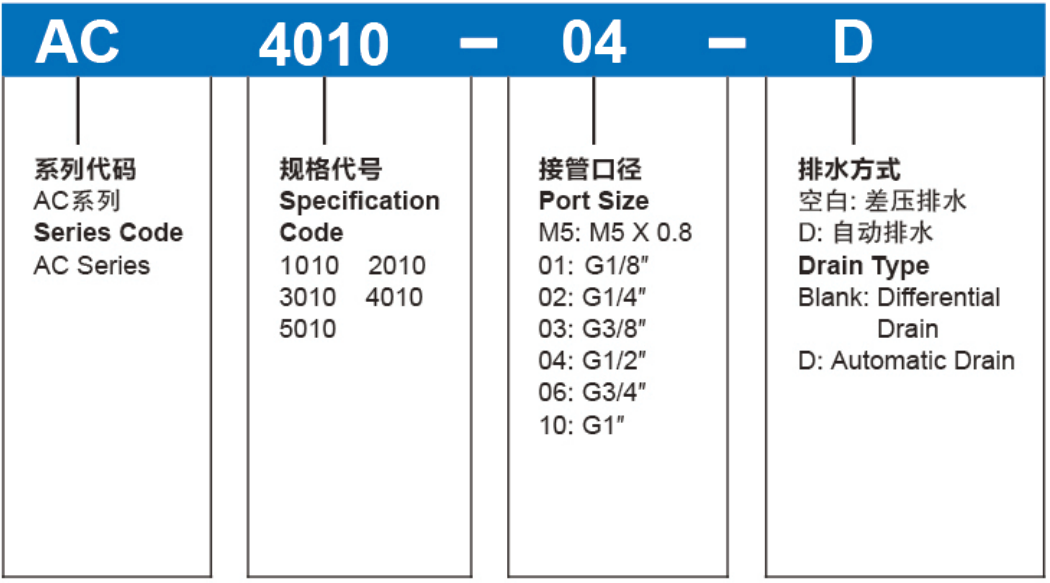

Order Code:

AC3000-02 1/4'' SMC Pneumatic Filter Regulator Lubricator

Technical Data:

Model AC1000 AC2000 AC2500 AC3000 AC4000 AC4000-06 AC5000 AC5500 AC6000
Combination
equipment		 Filter AF1000 AF2000 AF3000 AF3000 AF4000 AF4000-06 AF5000 AF6000 AF6000
Regulator AR1000 AR2000 AR2500 AR3000 AR4000 AR4000-06 AR5000 AR5000 AR6000
Lubricator AL1000 AL2000 AL3000 AL3000 AL4000 AL4000-06 AL5000 AL6000 AL6000
Port size M5 1/8''
1/4''		 1/4''
3/8''		 1/4''
3/8''		 1/4''
3/8''
1/2''		 3/4'' 3/4''
1''		 1'' 1''
Gauge port size 1/16'' 1/8'' 1/8'' 1/8'' 1/4'' 1/4'' 1/4'' 1/4'' 1/4''
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Set pressure range 0.05 to 0.7 MPa 0.05 to 0.85 MPa
Flow (l/min) (Port size) 90 (M5 x0.8) 500 (1/4'') 1500 (3/8'') 2000 (3/8'') 4000 (1/2'') 4500 (3/4'') 5000 (3/4'') 6000 (1'') 6000 (1'')
Ambient and fluid
temperature		 -5 to +60ºC (non-freezing)
Filtration 25 μm
Recommended lubricant ISO VG 32
Bowl material Polycarbonate
Drain Type Differential Drain, Automatic Drain

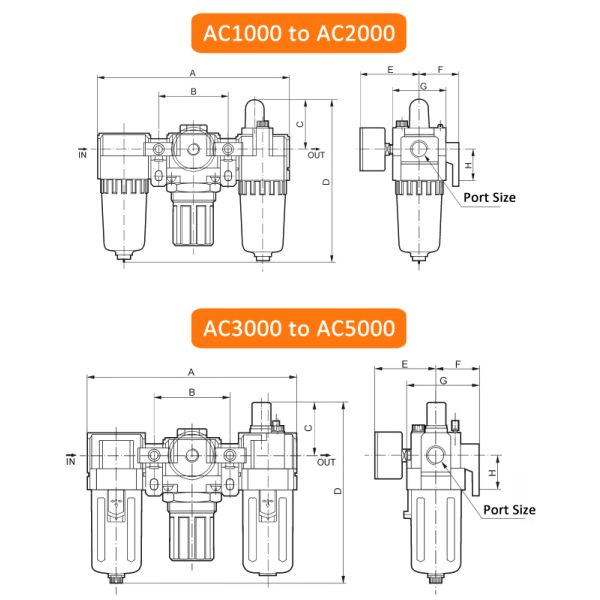

Main Dimension:

AC3000-02 1/4'' SMC Pneumatic Filter Regulator Lubricator

Model No
Port Size
A
B
C
D
E
F
G
H
AC1000
M5
91
33
25.5
84.5
26
25
25
20
AC2000
3/8'', 1/4''
140
20
38
125
56.8
30
40
24
AC2500
1/4'', 3/8''
181
64
38
156.5
60.8
41
53
35
AC3000
1/4'', 3/8''
181
64
38
156.5
60.8
41
53
35
AC4000
3/8'', 1/2''
238
84
41
191.5
65.5
50
70
40
AC4000-06
3/4''
253
89
41
193
69.5
50
70
40
AC5000
3/4'', 1''
300
105
48
271.5
75.5
69.8
90
50
