AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment
AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment
AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment
AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment
AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment
AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment
Specifications
Brand Name :
BRANDO
Model Number :
AC3010-02
Certification :
None
Place of Origin :
CHINA
MOQ :
300pcs
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box,Carton,Pallet
Product Name :
Filter Regulator Lubricator
Port Size :
M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''
Model :
AC1010, AC2010, AC3010, AC4010
Filtering Grade :
5 μm
Max Pressure :
1.0Mpa (145Psi)
Proof Pressure :
1.5Mpa (215Psi)
Recommended Lubricant :
ISO VG 32 Or Equivalent
Description

AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment


Filter Regulator Lubricator - FRL
FRL sets are used for point of use compressed air filtration, pressure reduction and airstream lubrication in industrial compressed air systems. These groups comprise either 3 components to make the FRL or 2 by substituting the separate filter and regulator with a single filter regulator to make an FR/L. We offer FRL groups for line sizes from 1/8" to 2" in aluminium or 3/4" to 1.5" in Stainless Steel. See also the separate sections for oil fog lubricators, filter regulators, filters and pressure reducing valves.


Specification of AC series Filter Regulator Lubricator:

Model AC1010 AC2010 AC3010 AC4010 AC4010-06

Combination

Equipment

 Filter Regulator AW1000 AW2000 AW3000 AW4000 AW4000-06
Lubricator AL1000 AL2000 AL3000 AL4000 AL4000-06
Port Size M5

1/8''

1/4''

1/4''

3/8''

1/4''

3/8''

1/2''

 3/4''
Gauge Port Size 1/16'' 1/8'' 1/8'' 1/4'' 1/4''
Fluid Air
Proof Pressure 1.5 MPa
Max Operating Pressure 1.0 MPa
Set pressure range 0.05 to 0.7 MPa 0.05 to 0.85 MPa
Flow (L/MinANR)) 90 500 1700 3000 3000
Ambient And Fluid Temperature -5 to 60 ℃ (Non-freezing)
Filtration 5μm
Recommand Lubricant Turbin oil class (ISO BG32)
Bowl Material Polycarbonate
Construction/Regulator Relieving style

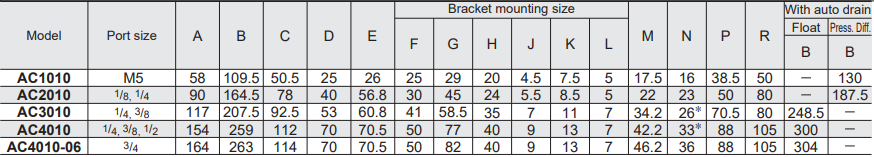

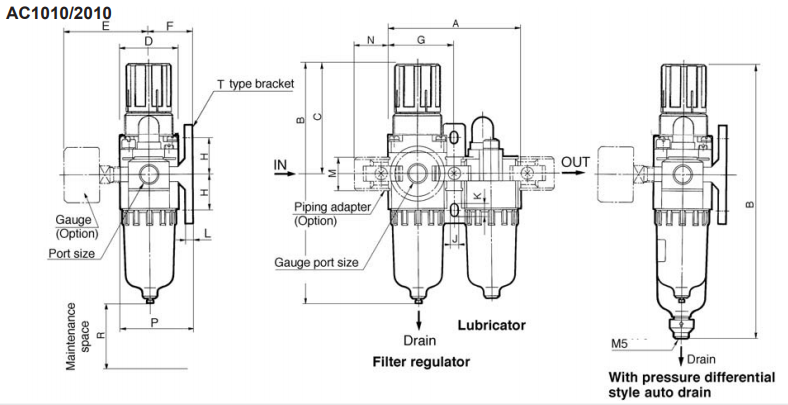

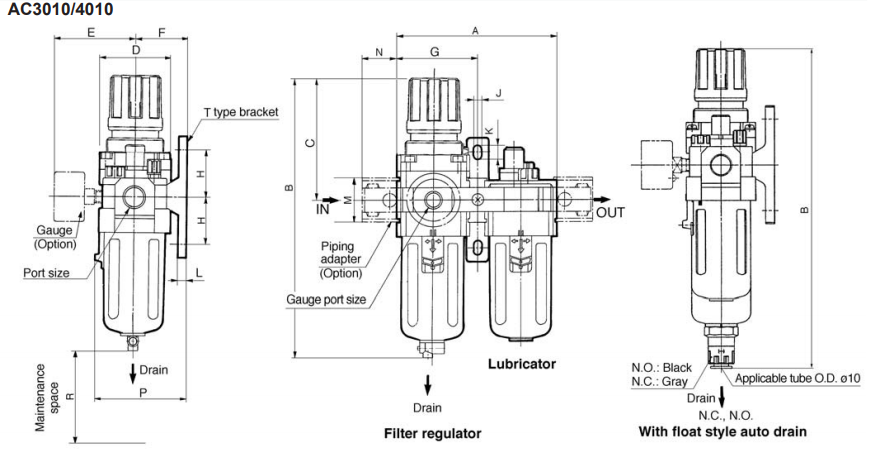

Dimension of AC series Filter Regulator Lubricator:

AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment

AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment

AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment


Combinations of AC series Filter Regulator Lubricator:

AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment

AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment

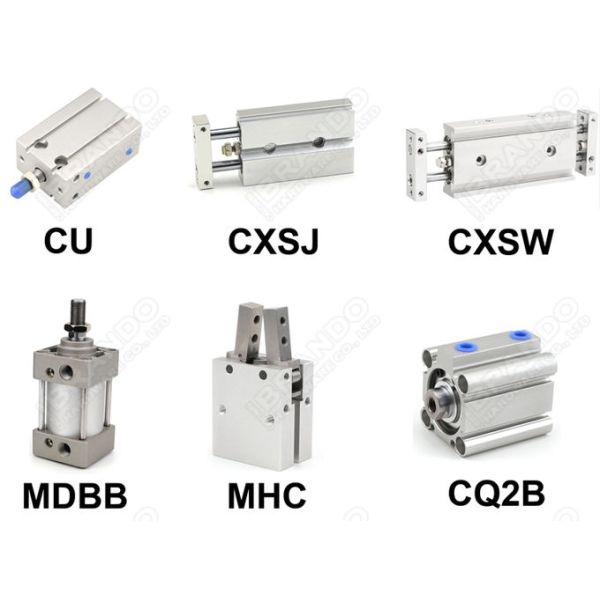

Other Pneumatic Products BRANDO supply:


2/2 Way Pneumatic Valves 3/2 Way Pneumatic Valves 5/2 Way Pneumatic Valves 5/3 Way Pneumatic Valves
Namur Solenoid Valves Air Pilot Valves Pneumatic Cylinders Silencers and Fittings
AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment AC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source TreatmentAC3010-02 1/4'' Filter Regulator Lubricator FRL Pneumatic Air Source Treatment


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
