AW2000-02 AW3000-03 AW4000-04 Pneumatic Compressor Air Filter Treatment Filters
AW2000-02 AW3000-03 AW4000-04 Pneumatic Compressor Air Filter Treatment Filters
AW2000-02 AW3000-03 AW4000-04 Pneumatic Compressor Air Filter Treatment Filters
AW2000-02 AW3000-03 AW4000-04 Pneumatic Compressor Air Filter Treatment Filters
AW2000-02 AW3000-03 AW4000-04 Pneumatic Compressor Air Filter Treatment Filters
AW2000-02 AW3000-03 AW4000-04 Pneumatic Compressor Air Filter Treatment Filters
Specifications
Brand Name :
BRANDO
Model Number :
AW1000, AW2000, AW3000, AW4000, AW5000
Certification :
NONE
Place of Origin :
Ningbo, China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T,Western Union,PayPal
Supply Ability :
100000pcs per month
Delivery Time :
4-7 working days
Packaging Details :
Plastic bag, Box, Carton, Pallet
Product Name :
Filter Regulator Lubricator
Fluid :
Air
Port Size :
M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''
Filtering Grade :
5 μm
Max Pressure :
1.0 Mpa (145 Psi)
Proof Pressure :
1.5 Mpa (215 Psi)
Description

AW2000-02 AW3000-03 AW4000-04 Pneumatic Compressor Air Filter Treatment Filters


To protect the system and equipment, it is recommended that all pneumatic systems have one or more air preparation components installed. BRANDO offers air filters, air regulators, and air lubricators for all pneumatic systems.

A pneumatic Filter/Regulator combination unit is an excellent choice for air preparation applications that require accurate pressure regulation and high moisture removal efficiency in a compact solution.

BRANDO’s combined Filter/Regulator designs - remove rust, scale, condensed water and other debris, and regulates to provide controlled and constant pressure in compact unit.


Specification of AW series Filter Regulator Lubricator:

Model AC1010 AC2010 AC3010 AC4010 AC4010-06

Combination

Equipment

 Filter Regulator AW1000 AW2000 AW3000 AW4000 AW4000-06
Lubricator AL1000 AL2000 AL3000 AL4000 AL4000-06
Port Size M5

1/8''

1/4''

1/4''

3/8''

1/4''

3/8''

1/2''

 3/4''
Gauge Port Size 1/16'' 1/8'' 1/8'' 1/4'' 1/4''
Fluid Air
Proof Pressure 1.5 MPa
Max Operating Pressure 1.0 MPa
Set pressure range 0.05 to 0.7 MPa 0.05 to 0.85 MPa
Flow (L/MinANR)) 90 500 1700 3000 3000
Ambient And Fluid Temperature -5 to 60 ℃ (Non-freezing)
Filtration 5μm
Recommand Lubricant Turbin oil class (ISO BG32)
Bowl Material Polycarbonate
Construction/Regulator Relieving style

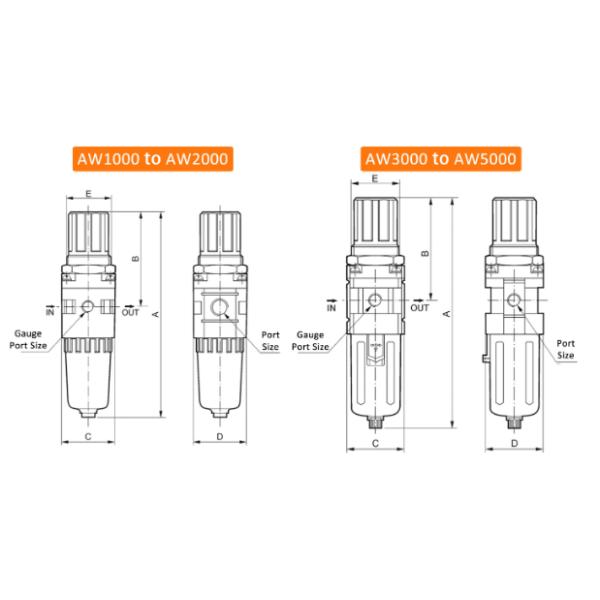

Dimension of AW series Filter Regulator Lubricator:

AW2000-02 AW3000-03 AW4000-04 Pneumatic Compressor Air Filter Treatment Filters


Combinations of AW series Filter Regulator Lubricator:

Model
Port Size
A
B
C
D
E
AW1000
M5
109.5
50.5
25
28
28
AW2000
G1/8'', G1/4''
164
78
40
40
34
AW3000
G1/4'', G3/8''
211
92.5
53
53
40
AW4000
G3/8'', G1/2''
262
112
70
70
54
AW4000-06
G3/4''
267
114
70
70
54
AW5000
G3/4'', G1''
338
116
90
90
54


Other Pneumatic Products BRANDO supply:

2/2 Way Pneumatic Valves 3/2 Way Pneumatic Valves 5/2 Way Pneumatic Valves 5/3 Way Pneumatic Valves
Namur Solenoid Valves Air Pilot Valves Pneumatic Cylinders Silencers and Fittings
AW2000-02 AW3000-03 AW4000-04 Pneumatic Compressor Air Filter Treatment Filters AW2000-02 AW3000-03 AW4000-04 Pneumatic Compressor Air Filter Treatment FiltersAW2000-02 AW3000-03 AW4000-04 Pneumatic Compressor Air Filter Treatment Filters
