Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve
Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve
Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve
Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve
Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve
Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve
Specifications
Brand Name :
BRANDO
Model Number :
RCA76T
Certification :
None
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
165000 pieces per month
Delivery Time :
4-7 days
Packaging Details :
Inner Box,Carton,Pallet
Port Size :
3''
Series :
T
Pipe Connection :
Threaded
Valve Structure :
Right Angle Type
Body Material :
Aluminum Alloy
Diaphragm Material :
NBR, FKM
Workinｇ Pressure Range :
0.3 to 0.8 MPa
Description

Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve


High performance pulse diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.

Suitable for Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters. The "T" series valves are available in 3/4", 1", 1.5",2", 2.5", 3" port sizes.

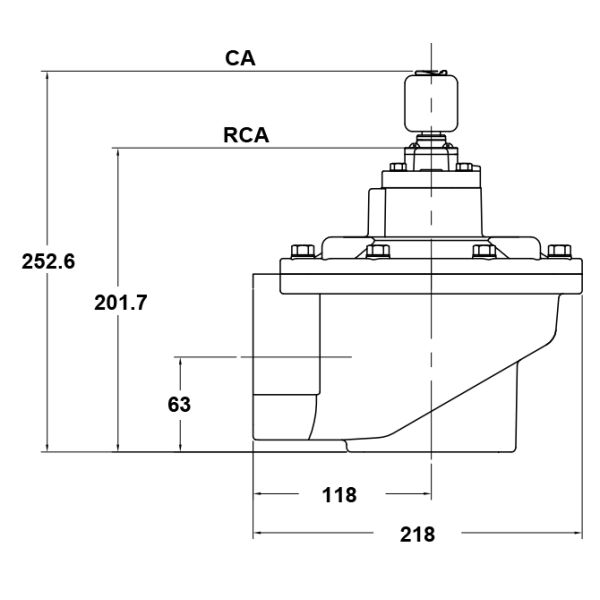

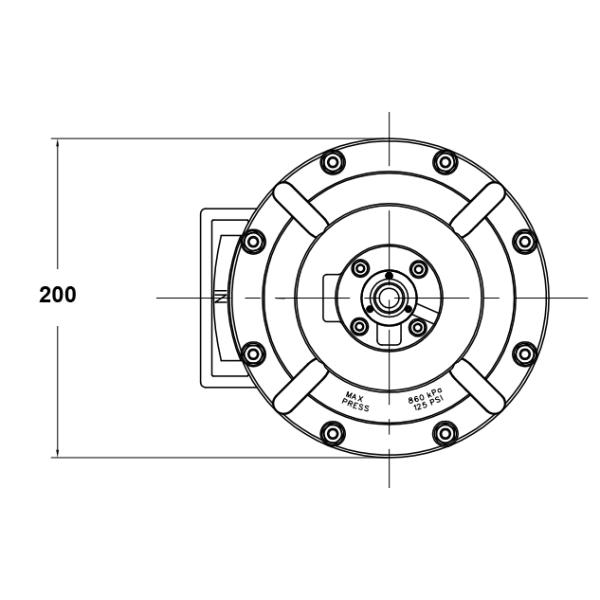

Dimension of RCA76T Pulse Jet Valve:

Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet ValveGoyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve


Technical Data of T Series Pulse Jet Valves:

Model NO
RCA15T
RCA20T
RCA25T
RCA35T
RC45T
RCA50T
RCA62T
RCA76T
Office Size
(mm)
15
20
25
35
45
50
62
76
Port Size
(Inch)
1/2''
3/4''
1''
1 1/2''
1 1/2''
2''
2 1/2''
3''
Diaphragm Number
1
2
Pilot Size
1/8'', 1/4''
Working pressure
0.3 to 0.8MPa
Fluids
Air
Diaphragm Material
NBR or FKM
Body Material
Aluminum Alloy
Valve Structure
Right Angle (Outlet is at 90° to Inlet)


Ordering Code of T Series Pulse Jet Valves:

Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve

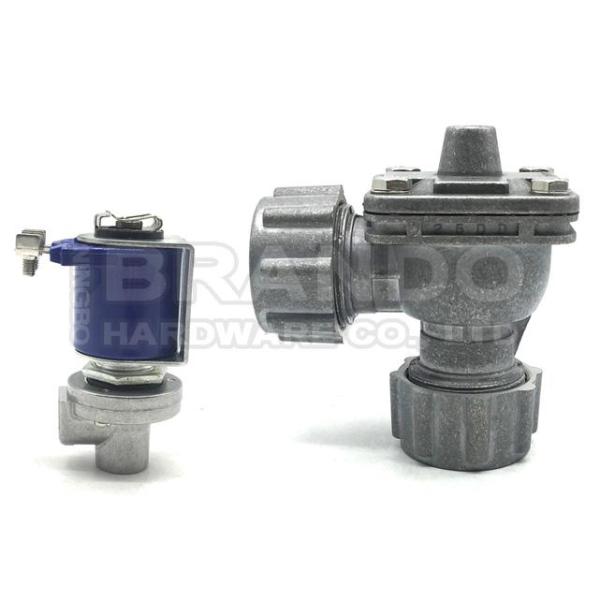

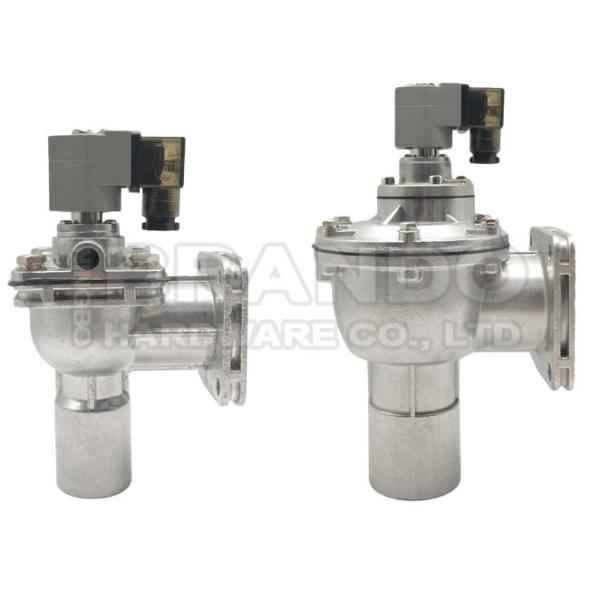

More Goyen Type Pulse Jet Valves for you to choose:

Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve
T Series DD Series MM Series FS Series
Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve Goyen Type RCA76T 3'' Remote Pilot Controlled Pulse Jet Valve

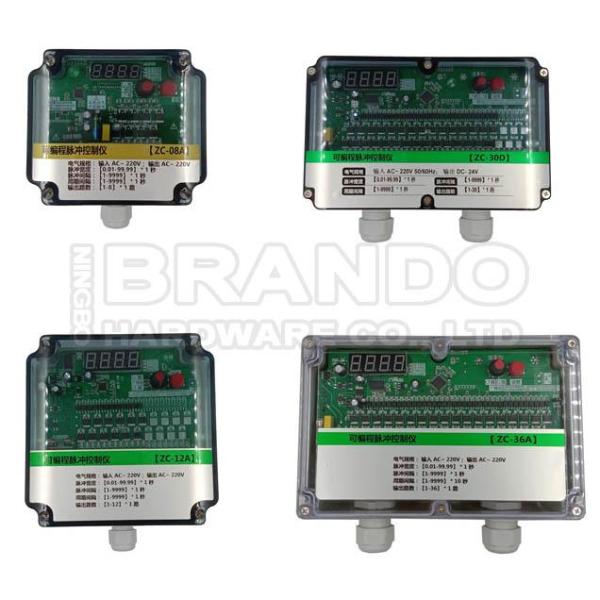

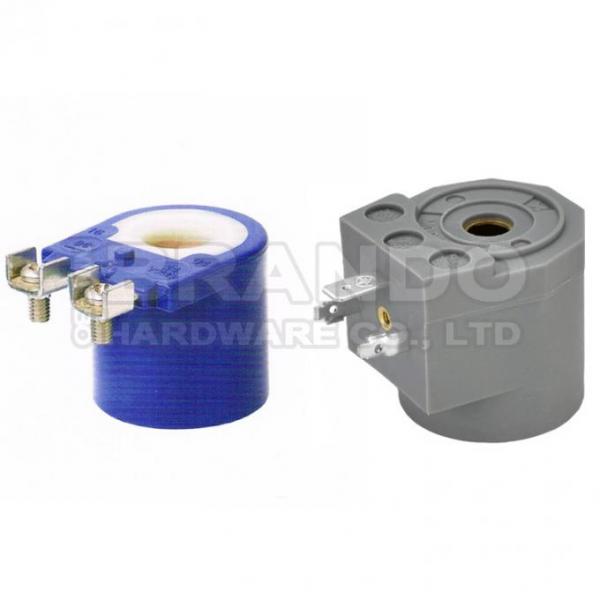

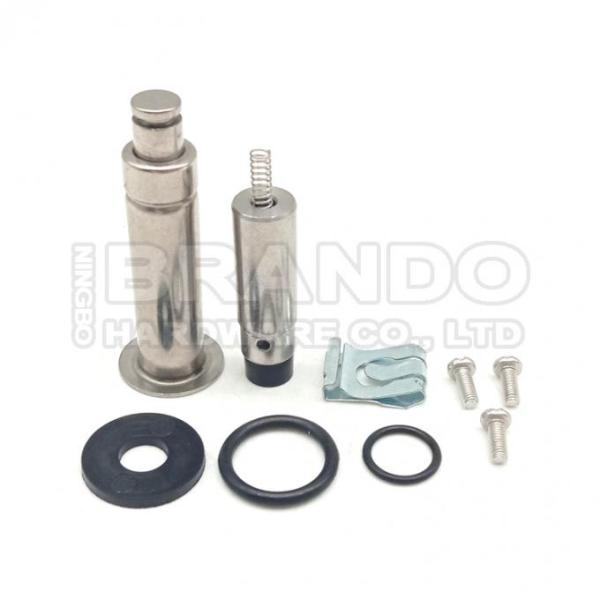

RCA Series Solenoid Coils Solenoid Armature Pulse Controller



Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
