M8×1 Acid Alkali Corrosive PTFE Solenoid Valve 3mm Isolation Valve
M8×1 Acid Alkali Corrosive PTFE Solenoid Valve 3mm Isolation Valve
M8×1 Acid Alkali Corrosive PTFE Solenoid Valve 3mm Isolation Valve
M8×1 Acid Alkali Corrosive PTFE Solenoid Valve 3mm Isolation Valve
Specifications
Model Number :
6.16BAP030BM8
Voltages :
12VDC, 24VDC, 110VAC, 220VAC
Packaging Details :
inner boxes,cartons,pallets
MOQ :
200
Delivery Time :
Negotiation
Working Pressure Range :
0 To 0.3 MPa
Payment Terms :
T/T,PayPal,Western Union
Port Size :
M8
Seal Material :
PTFE
Valve Body Material :
PTFE
Brand Name :
BRANDO
Place of Origin :
Ningbo, China
Price :
Negotiation
Orifice Size :
3mm
Supply Ability :
100000pcs per month
Function :
2 Way, Normally Closed
Certification :
None
Description

M8×1 Acid Alkali Corrosive PTFE Solenoid Valve 3mm Isolation Valve



Product Features:

The M8 Acid Alkali Corrosive PTFE Solenoid Valve is a compact 2/2-way normally closed direct-acting isolation solenoid valve designed for controlling corrosive liquids and gases. The key feature is the M8×1 threaded connection combined with a PTFE wetted structure, making it suitable for compact chemical, analytical and laboratory fluid-control equipment.


PTFE Isolation Design

The valve uses an isolation structure to keep the corrosive medium away from the electromagnetic actuator.

The main fluid-contacting materials are:

PTFE valve body
PTFE sealing components
Isolation diaphragm/structure

This construction is intended for media such as acid, alkali and corrosive liquids, rather than the general-purpose water/air service normally associated with brass solenoid valves.

However, chemical compatibility should still be checked against the specific chemical concentration and operating temperature. PTFE should not be treated as universally compatible with every chemical under every condition.


Technical Data of Isolation Solenoid Valve:

Model No. Port size Orifice (mm) Cv Mini Pressure Max Pressure Seal Material
AC(6VA) DC(10W)
6.16BAP030BM8 M8x1 3.0 0.1 0.0MPa 0.3MPa 0.3MPa PTFE
6.16BAP030B01 1/8'' 3.0 0.1 0.0MPa 0.3MPa 0.3MPa
6.16BAP030B02 1/4'' 3.0 0.1 0.0MPa 0.15MPa 0.15MPa





AC(24VA) DC(13W)
6.16BAP060B02 1/4'' 6.0 0.28 0.0MPa 0.15MPa 0.15MPa
6.16BAP060B03 3/8'' 6.0 0.28 0.0MPa 0.15MPa 0.15MPa
6.16BAP060B04 1/2'' 6.0 0.28 0.0MPa 0.15MPa 0.15MPa
6.16BAP060B06 3/4'' 6.0 0.28 0.0MPa 0.15MPa 0.15MPa

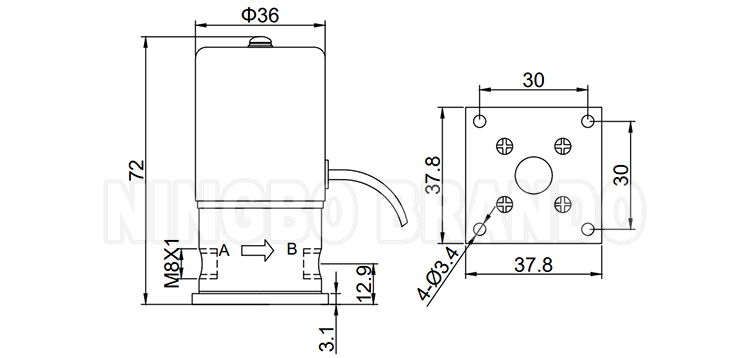

Main Dimension of Isolation Solenoid Valve:

M8×1 Acid Alkali Corrosive PTFE Solenoid Valve 3mm Isolation Valve




More PTFE () Body Solenoid Valves for you to choose:

M8×1 Acid Alkali Corrosive PTFE Solenoid Valve 3mm Isolation Valve M8×1 Acid Alkali Corrosive PTFE Solenoid Valve 3mm Isolation Valve M8×1 Acid Alkali Corrosive PTFE Solenoid Valve 3mm Isolation Valve
M8×1 Acid Alkali Corrosive PTFE Solenoid Valve 3mm Isolation Valve M8×1 Acid Alkali Corrosive PTFE Solenoid Valve 3mm Isolation Valve M8×1 Acid Alkali Corrosive PTFE Solenoid Valve 3mm Isolation Valve
