Specifications
Brand Name :
BRANDO
Model Number :
6.16DAP20B06
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
2pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
4 to 7 working days
Packaging Details :
Plastic Bag, Box, Carton, Pallet
Product Name :
Anti Corrosion Solenoid Valve
Port Size :
3/4''
Orifice Size :
20mm
CV :
5.5
Body Material :
PTFE
Seal Material :
EPDM, FKM, PTFE
Working Medium :
Chemical, Acid, Alkali, Corrosive Liquids, etc
Working Pressure :
0.01 to 0.6 MPa
Operation :
Piston Pilot Operated
Function :
2 Way, Normally Closed
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

3/4'' PTFE Anti Corrosion Solenoid Valve Acid Alkali Chemical Resistant 24V 110V 220V

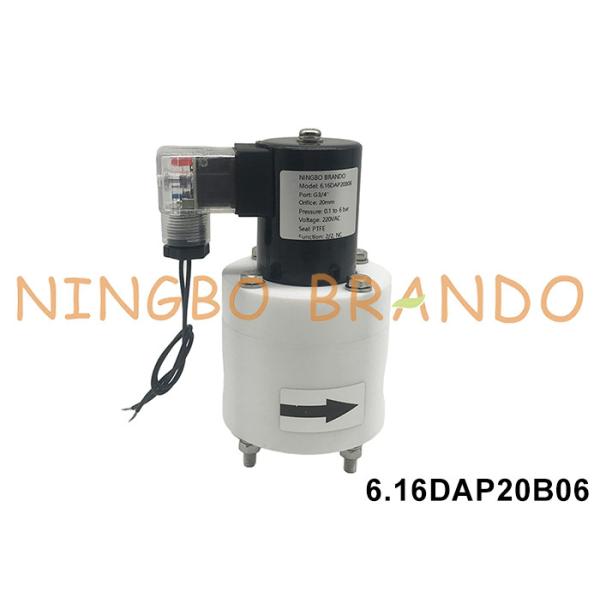

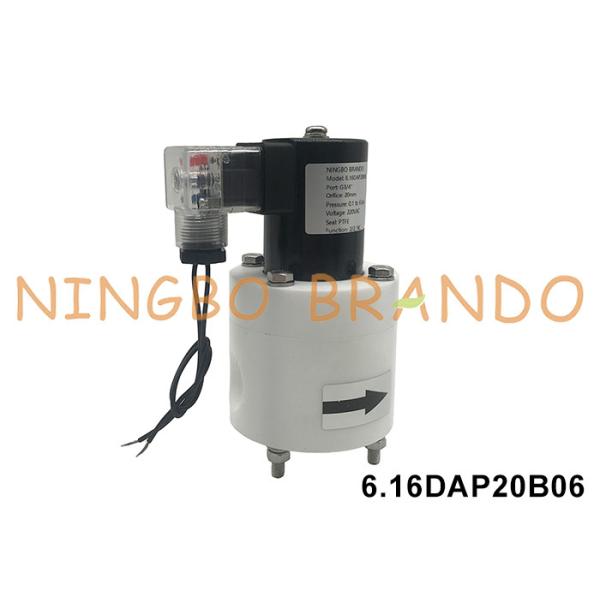

This is an anti corrosive PTFE solenoid valve, 3/4'' female threaded port size, 20mm orifice size, 2/2 way normally closed, pilot piston operated, 0.01 to 0.6 MPa working pressure, can be EPDM, FKM or PTFE seal to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Technical Data:

Model No
Port Size
Orifice Size
CV
Working Pressure
Body Material
Seal Material
Function
Voltage
6.16DAP15B04
1/2''
15mm
4
0 to 6 bar
PTFE
EPDM
FKM
PTFE
2 Way NC
12VDC
24VDC
24VAC
110VAC
220VAC
6.16DAP20B06
3/4''
20mm
5.5
6.16DAP25B25
1''
25mm
13
6.16DAP32B32
1-1/4''
32mm
17
6.16DAP40B40
1-1/2''
40mm
25
6.16DAP50B50
2''
50mm
40
6.16DAP65B65
2-1/2''
60mm
62

Main Dimension:

3/4'' PTFE Anti Corrosion Solenoid Valve

Model No
Dimension
P
D
H
E
A
M
L
K
F
6.16DAP15B04
1/2''
70
127
56.5
18.5
M5
14
92
58
6.16DAP20B06
3/4''
80
136
70.5
20
M6
10
92
67
6.16DAP25B25
1''
95
145
78
25
M6
12
92
75
6.16DAP32B32
1-1/4''
120
200
110
31
M8
20
94
98
6.16DAP40B40
1-1/2''
130
220
113
33.5
M8
18
94
106
6.16DAP50B50
2''
150
249
140
43
M10
20
94
116
6.16DAP65B65
2-1/2''
180
262
152
49
M10
25
94
116

Our Production:

3/4'' PTFE Anti Corrosion Solenoid Valve

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.
