SCG353A050 AC220V 2 Inch Right Angle Pulse Valve ASCO Type 353 Series
SCG353A050 AC220V 2 Inch Right Angle Pulse Valve ASCO Type 353 Series
SCG353A050 AC220V 2 Inch Right Angle Pulse Valve ASCO Type 353 Series
SCG353A050 AC220V 2 Inch Right Angle Pulse Valve ASCO Type 353 Series
SCG353A050 AC220V 2 Inch Right Angle Pulse Valve ASCO Type 353 Series
SCG353A050 AC220V 2 Inch Right Angle Pulse Valve ASCO Type 353 Series
Specifications
Model Number :
SCG353A050
Valve Type :
Right Angle
Payment Terms :
L/C,T/T,Western Union,Paypal
Port Size :
2 Inch
Diaphragm Material :
NBR
Price :
Negotiation
Remote Or Integral :
Integral Pilot
Body Material :
Aluminum
MOQ :
1 set
Delivery Time :
Negotiation
Pressure Range :
0.3 to 0.8MPa
Supply Ability :
100000 pcs per month
Product Name :
Pulse Jet Valve
Brand Name :
Brando
Voltages :
220VAC, 24VDC
Certification :
CE
Place of Origin :
China
Packaging Details :
Inner Box, Carton, Pallet
Description

SCG353A050 AC220V 2 Inch Right Angle Pulse Valve ASCO Type 353 Series


The ASCO type SCG353A050 is a 2-inch, pilot-operated diaphragm pulse jet valve designed for reverse-jet dust collector and bag filter cleaning systems.


Key Specifications

Port Connection: G 2 inches (DN50)

Working Pressure: 0.35 bar (min) to 8.5 bar (max) / approx. 0.035 to 0.85 MPa

Body Material: Aluminum

Diaphragm Material: NBR (Nitrile)

Standard Voltages: 24V DC, 115V AC, 220V AC

Operation: 2-way normally closed with an integral pilot


Technical Data of 353 Series Pulse Jet Valves:

SCG353A050 AC220V 2 Inch Right Angle Pulse Valve ASCO Type 353 Series

Integral Pilot
Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Remote Pilot
Model No
G353A041
G353A042
G353A045
G353A046
G353A048
G353A049
Orifice Size
25mm
25mm
50mm
66mm
66mm
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
Diaphragm Number
1
2
Pliot Size
G1/4''
Diaphragm Material
TPE, NBR, FKM
Body Material
Aluminium
Pressure Range
0.35 to 8.5 bar
Voltage
24VDC, 24VAC, 110VAC, 220VAC


Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.

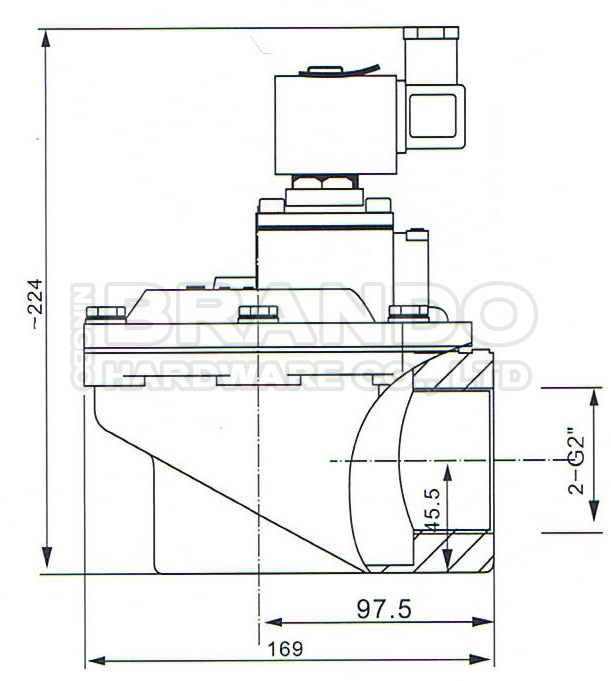

Dimension of SCG353A050 Pulse Jet Valve:


Video of SCG353A050 Pulse Jet Valve:


More ASCO Type Pulse Valve For You to Choose:

Right Angle Type Remote Pilot Type Immersion Type

Diaphragm Solenoid Coil Armature Assembly Pulse Controller


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing
