1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector
1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector
1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector
1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector
1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector
1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector
Specifications
Pilot Size :
G1/8''
Place of Origin :
Ningbo, China
Ref No :
RCAC25FS010, RCAC25FS020, RCAC25FS000
Model Number :
RCAC25FS
Diaphragm Material :
NBR (Standard), FKM (Optional)
Payment Terms :
T/T,PayPal,Western Union
Inlet Connection :
Flange
Port Size :
1''
Price :
Negotiation
Series :
FS
Supply Ability :
50000pcs per month
Product Name :
Remote Pilot Pulse Valve
MOQ :
8pcs
Delivery Time :
Negotiation
Body Material :
Aluminum
Certification :
None
Application :
Dust Collector
Brand Name :
BRANDO
Operating Pressure :
5 To 125 Psi
Packaging Details :
Box, Carton, Pallet
Description

1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector


An RCAC25FS is a 1-inch (25 mm) remote pilot flanged pulse jet diaphragm valve for dust collectors, baghouses, and industrial filter cleaning systems.

Unlike the CAC25FS (which features an attached integral solenoid pilot), the "RCA" designation indicates that it is remote pilot operated, controlled externally by air pressure signals from a remote solenoid enclosure.


Key Technical Specifications


Port Size & Connection: 1-inch (25 mm) flanged inlet with a slide-seal outlet for quick installation and removal from blowpipes without dismantling surrounding piping.

Operation: Remote pilot operated via a 1/8" NPT, RC, or G thread pilot connection.

Body Material: Die-cast aluminum body and cover.

Diaphragm Options: Fitted with Goyen's Shockwave Nitrile/Buna-N diaphragm for standard temp operations, or Viton options for high-temperature and harsh chemical applications.


Order Code:

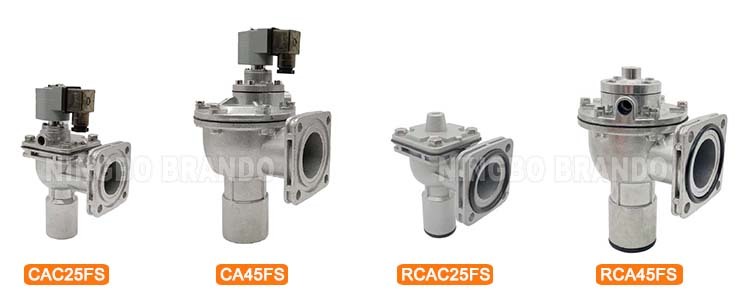

Specification of FS Series Pulse Jet Valves:

1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector

Integral Pilot
DMF-ZF-25
DMF-ZF-40S
Remote Pilot
MF-ZF-25
MF-ZF-40S
Orifice Size (mm)
25
40
Port Size
1''
1-1/2''
Pilot Size
1/8'', 1/4''
Diaphragm Number
1
2
Diaphragm Material
NBR (Standard), FKM (Optional)
Body Material
Aluminum
Coil Voltage
24VDC, 24VAC, 110VAC, 220VAC
Pressure Range
0.1 to 0.8 MPa


RCAC25FS Dimension:


Our Production:


More Goyen Type Products for you to choose:

1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector 1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector 1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector 1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector
T Series DD Series FS Series MM Series
1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector 1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector 1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector 1 Inch RCAC25FS Flanged Pluse Diaphragh Valve for Dust Collector
RCA Series Solenoid Coil Solenoid Armature Diaphragm


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change

√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
