MF-Y-25 Submerged Pulse Valve 1 Inch Dust Collector Diaphragm Valve
MF-Y-25 Submerged Pulse Valve 1 Inch Dust Collector Diaphragm Valve
MF-Y-25 Submerged Pulse Valve 1 Inch Dust Collector Diaphragm Valve
MF-Y-25 Submerged Pulse Valve 1 Inch Dust Collector Diaphragm Valve
MF-Y-25 Submerged Pulse Valve 1 Inch Dust Collector Diaphragm Valve
MF-Y-25 Submerged Pulse Valve 1 Inch Dust Collector Diaphragm Valve
Specifications
Diaphragm Material :
NBR
Place of Origin :
CHINA
Model Number :
MF-Y-25
Structure :
Embedded
Payment Terms :
T/T,Western Union,MoneyGram
Valve Type :
Full Immersion
Working Pressure Range: :
0.1 To 0.8 MPa
Price :
Negotiation
Port Size :
1''
Supply Ability :
100000 pcs per month
Product Name :
BFEC Pulse Jet Valve
MOQ :
1 pc
Delivery Time :
Negotiation
Body Material :
Aluminum Alloy
Certification :
None
Brand Name :
BRANDO
Working Temperature :
-5 To +80℃
Packaging Details :
Inner Box,Carton,Pallet
Description

MF-Y-25 Submerged Pulse Valve 1 Inch Dust Collector Diaphragm Valve


MF-Y-25 is a 1-inch (DN25) full-immersion/submerged pulse jet valve with a remote pilot. It is used for reverse-pulse cleaning in dust collector and baghouse systems. The key distinction from DMF-Y-25 is the control configuration: DMF-Y-25 uses an integral solenoid pilot, while MF-Y-25 uses a remote solenoid pilot mounted separately in an enclosure.


How MF-Y-25 Works

MF-Y-25 uses a remote electromagnetic pilot valve to control the diaphragm.

1, The pulse controller energizes the remote pilot.
2, The pilot exhausts compressed air from the diaphragm chamber.
3, The pressure differential across the diaphragm causes it to open.
4, Compressed air is released rapidly from the air header through the pulse valve.
5, When the pilot is de-energized, pressure is restored above the diaphragm.
6, The diaphragm closes and ends the cleaning pulse.


This configuration separates the electromagnetic pilot from the main pulse valve, which can be useful when the installation requires a remote pilot enclosure or centralized pilot arrangement.


Technical Data of SBFEC Type DMF Series Submerged Pulse Jet Valve:


MF-Y-25 Submerged Pulse Valve 1 Inch Dust Collector Diaphragm Valve
Integral Pilot
DMF-Y-25
DMF-Y-40S
DMF-Y-50S
DMF-Y-62S
DMF-Y-76S
DMF-Y-102S
DMF-YA-76S
DMF-Y-102SA
DMF-YB-76S
DMF-Y-102SE
Remote Pilot
MF-Y-25
MF-Y-40S
MF-Y-50S
MF-Y-62S
MF-Y-76S
MF-Y-102S
MF-YA-76S
MF-Y-102SA
MF-YB-76S
MF-Y-102SE
Diameter (Inch)
1''
1-1/2''
2''
2-1/2''
3''
4''
Diaphragm Number
1
2
Diaphragm Material
NBR (Standard), FKM (Optional)
Body Material
Aluminum
Pressure Range
0.1 to 0.8 MPa
Voltage
24VDC, 24VAC, 110VAC, 220VAC

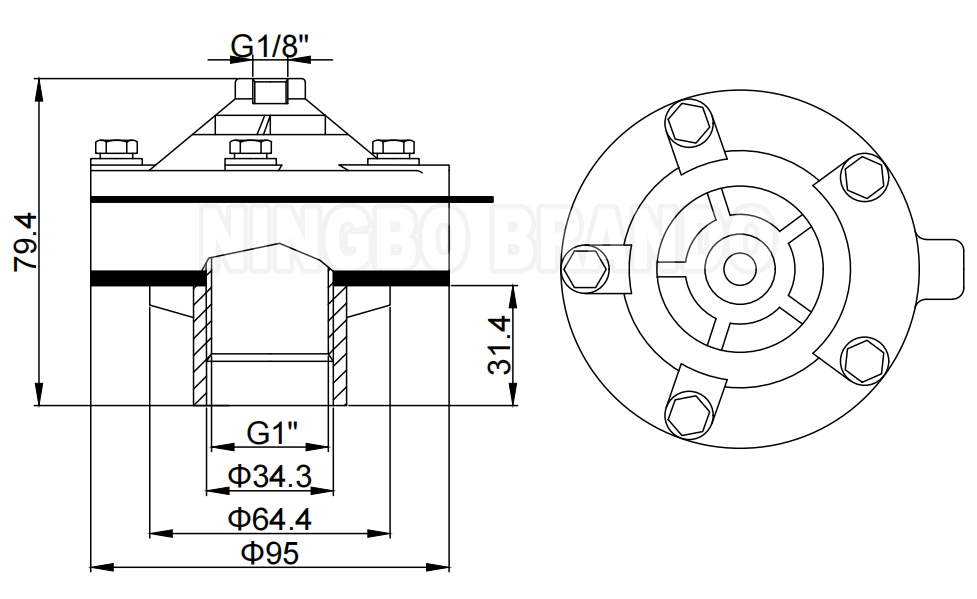

Main Dimension:

MF-Y-25 Submerged Pulse Valve 1 Inch Dust Collector Diaphragm Valve


Related Products:

MF-Y-25 Submerged Pulse Valve 1 Inch Dust Collector Diaphragm Valve MF-Y-25 Submerged Pulse Valve 1 Inch Dust Collector Diaphragm Valve MF-Y-25 Submerged Pulse Valve 1 Inch Dust Collector Diaphragm Valve MF-Y-25 Submerged Pulse Valve 1 Inch Dust Collector Diaphragm Valve
Fitting Diaphragm Remote Pilot Box Pulse Controller


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
