RCA20DD 3/4 Inch Remote Pilot Pulse Jet Valve Dresser Nut Type Dust Collector Valve
RCA20DD 3/4 Inch Remote Pilot Pulse Jet Valve Dresser Nut Type Dust Collector Valve
RCA20DD 3/4 Inch Remote Pilot Pulse Jet Valve Dresser Nut Type Dust Collector Valve
RCA20DD 3/4 Inch Remote Pilot Pulse Jet Valve Dresser Nut Type Dust Collector Valve
Specifications
Body Material :
Aluminum (diecast)
Supply Ability :
5000pcs per month
Brand Name :
BRANDO
Certification :
CE, ISO
Diaphragm Material :
NBR
Remote Pilot Size :
1/8''
Price :
Negotiation
Place of Origin :
Ningbo, China
Working Pressure Range :
5 to 125 psi
Model Number :
RCA20DD
Packaging Details :
Box, Carton, Pallet
Port Size :
3/4''
MOQ :
5pcs
Delivery Time :
4 to 7 working days
Product Name :
Pulse Valve
Structure :
Dresser Nut
Payment Terms :
T/T,PayPal,Western Union
Working Temperature :
-5 to +80℃
Description

RCA20DD 3/4 Inch Remote Pilot Pulse Jet Valve Dresser Nut Type Dust Collector Valve


The RCA20DD is a 3/4-inch remote pilot-operated pulse jet diaphragm valve designed for reverse-pulse dust collector baghouses and air filtration systems. Unlike the CA series, the "R" prefix designates that this model is remotely piloted by air rather than having an integral solenoid mounted directly on the valve body.


Key Specifications & Features


Type: Remote pilot-operated pulse jet diaphragm valve (requires an external pilot valve or solenoid enclosure).

Port Size: 3/4 inch (20 mm).

Connection / Design: Features DD-series compression coupling ends (Dresser Nut style) for quick, tool-free mounting directly onto unthreaded blowtubes.

Application: Used in dust collection systems across chemical processing, cement, metalworking, and manufacturing facilities to dislodge dust from filter bags or cartridges.

Operating Pressure: 5 to 125 psi (0.35 to 8.6 bar).

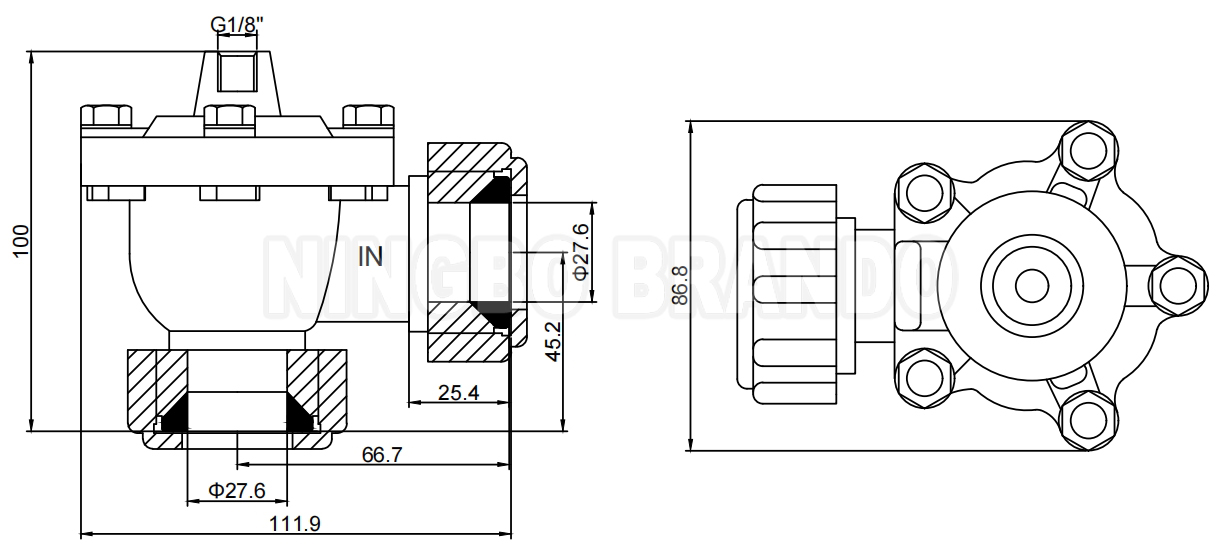

RCA20DD Dimension:


Technical Data:

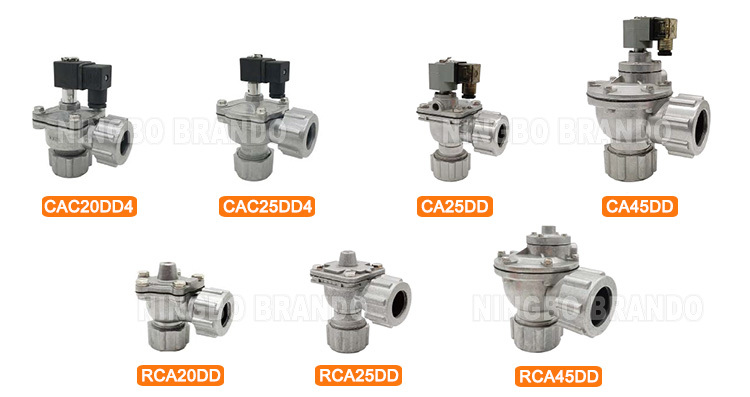

RCA20DD 3/4 Inch Remote Pilot Pulse Jet Valve Dresser Nut Type Dust Collector Valve

Integral Pilot Type
CA20DD
CA25DD
CA45DD
CAC20DD4
CAC25DD4
Remote Pilot Type
RCA20DD
RCA25DD
RCA45DD
RCAC20DD4
RCAC25DD4
Port Size
3/4''
1''
1-1/2''
3/4''
1''
Pilot Size
1/8''
1/8''
1/4''
1/8''
1/8''
Pipe Connection
Dresser Nut
Working Pressure
5 to 125 psi
Diaphragm Material
NBR (Standard), FKM (optional)
Shockwave
Body Material
Aluminum (diecast)
Voltage
24VDC, 24VAC, 110VAC, 220VAC


Our Production:


Related Products:

RCA20DD 3/4 Inch Remote Pilot Pulse Jet Valve Dresser Nut Type Dust Collector Valve RCA20DD 3/4 Inch Remote Pilot Pulse Jet Valve Dresser Nut Type Dust Collector Valve RCA20DD 3/4 Inch Remote Pilot Pulse Jet Valve Dresser Nut Type Dust Collector Valve RCA20DD 3/4 Inch Remote Pilot Pulse Jet Valve Dresser Nut Type Dust Collector Valve

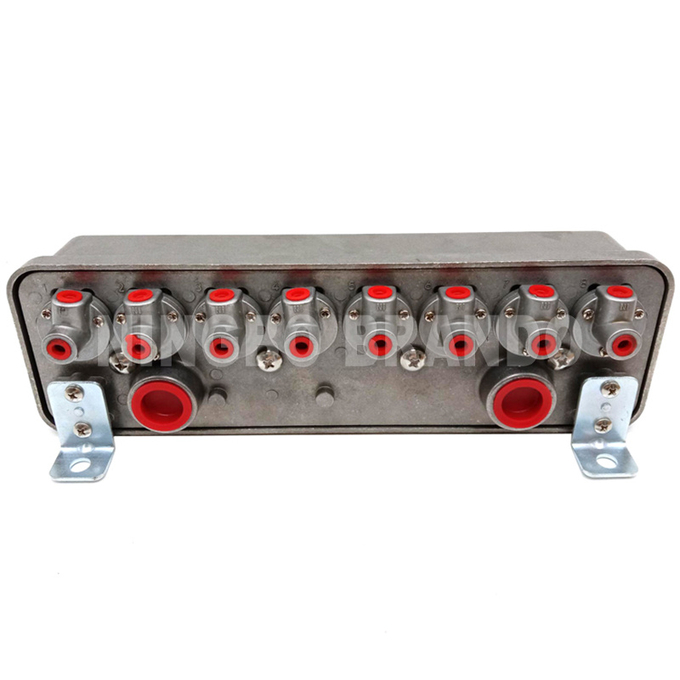

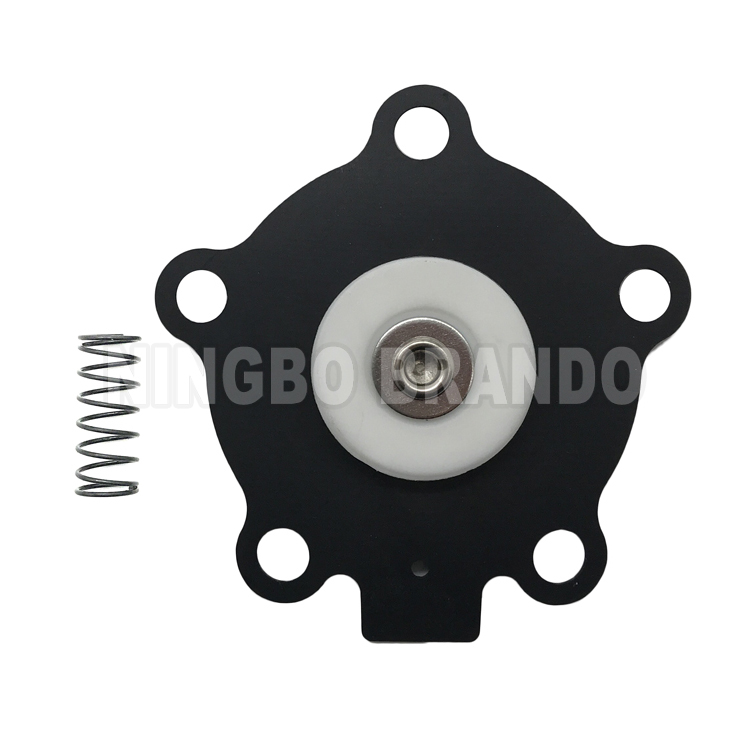

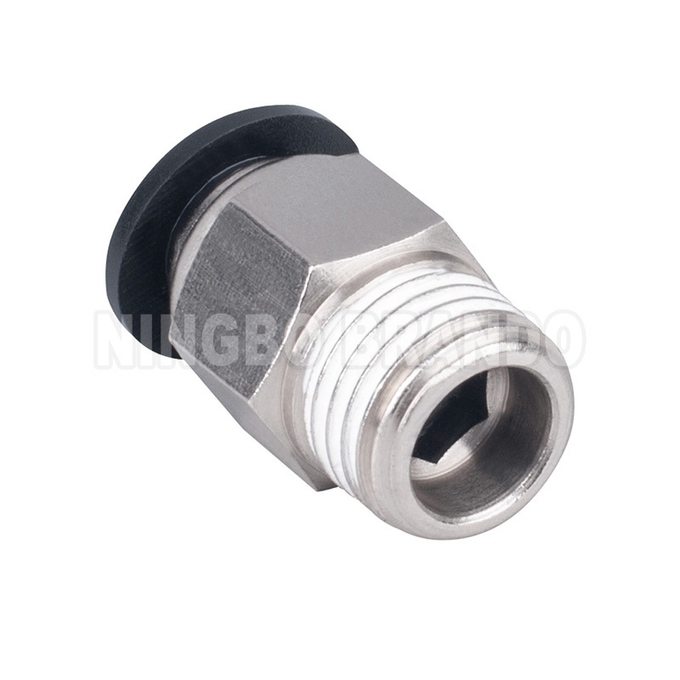

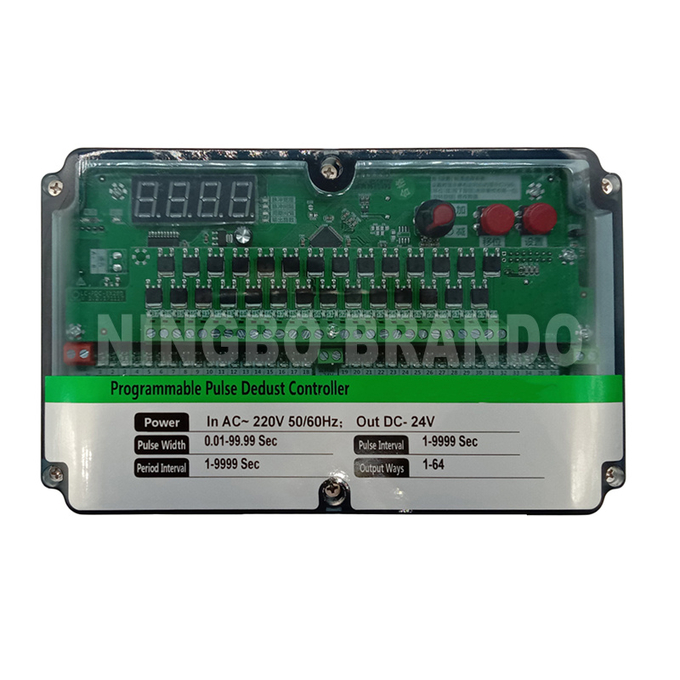

Fitting Diaphragm Remote Pilot Box Pulse Controller
