CAC20T4 3/4'' GOYEN type Electromagnetic Pulse Valve Dust Collector 24V 110V 220V
CAC20T4 3/4'' GOYEN type Electromagnetic Pulse Valve Dust Collector 24V 110V 220V
CAC20T4 3/4'' GOYEN type Electromagnetic Pulse Valve Dust Collector 24V 110V 220V
CAC20T4 3/4'' GOYEN type Electromagnetic Pulse Valve Dust Collector 24V 110V 220V
Specifications
Diaphragm Material :
TPE (Shockwave)
Place of Origin :
Ningbo, China
Model Number :
CAC20T4
Application :
Dust Collector
Payment Terms :
T/T,PayPal,Western Union
Port Size :
G3/4''
Working Pressure :
5 to 125 psi
Price :
Negotiation
Body Material :
Aluminum (diecast)
Supply Ability :
50000pcs per month
Product Name :
Pulse Valve
MOQ :
8pcs
Delivery Time :
4 to 5 working days
Voltage :
24VDC, 24VAC, 110VAC, 220VAC
Certification :
None
Brand Name :
BRANDO
Ref No :
CAC25T4012, CAC25T4002, CAC25T4022
Packaging Details :
Box, Carton, Pallet
Description

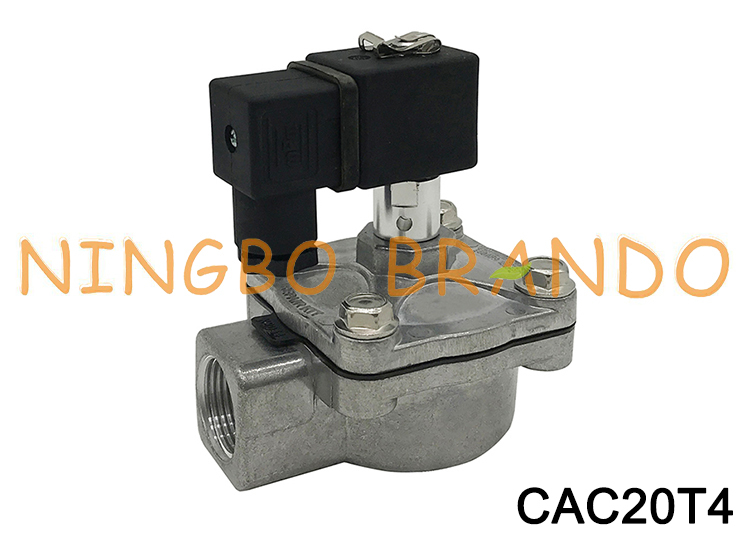

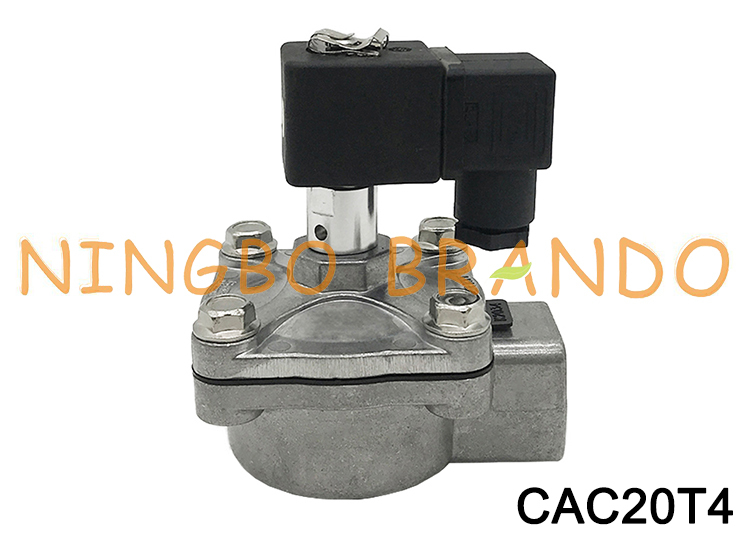

CAC20T4 3/4'' GOYEN type Electromagnetic Pulse Valve Dust Collector 24V 110V 220V


A CAC20T4 is a 3/4-inch (20 mm) threaded integral pilot pulse jet diaphragm valve for dust collector systems, baghouses, and cartridge filtration units.
The "CA" designation indicates an integral solenoid pilot mounted directly on the valve, while "C" specifies a conduit connection enclosure, "20" denotes the 3/4" size, "T" stands for threaded inlet/outlet ports, and "4" indicates Goyen’s Millennium Series 4 design.


Key Technical Specifications
Port Size & Connection: 3/4-inch (20 mm) female threaded (NPT or BSP/G) inlet and outlet ports.
Structure: Right-angle configuration (90° orientation between inlet and outlet) for single-diaphragm high-speed pulsing.
Operation: Integrally piloted solenoid operated.
Standard voltage choices include 24V DC, 24V AC, 110V/120V AC, and 220V/240V AC.
Body Material: Die-cast aluminum body and cover.
Diaphragm Material: Standard Shockwave Nitrile/Buna-N for ambient operating conditions (-40°C to 82°C / -40°F to 180°F), or Viton (FKM) for high-temperature and chemical exposure.


Common Replacement & Maintenance Parts
Diaphragm Repair Kits: Uses Goyen type 3/4" Series 4 rebuild kits:K2034 (Standard Nitrile / Shockwave) K2033 (High-Temperature Viton) Pilot Operator Kit: Standard pilot repair kit is K0380 (Buna) or K0384 (Viton).

​

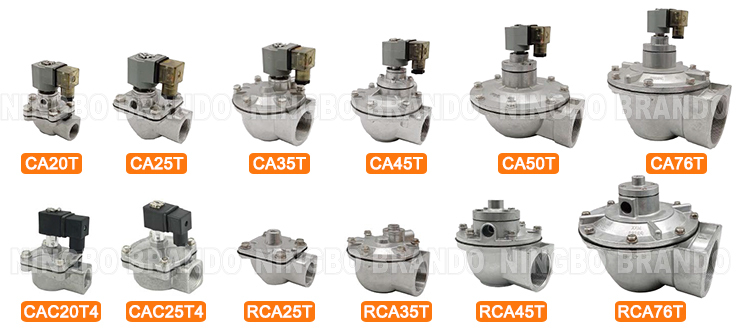

Technical data of Right Angle Pulse Jet Valves:

CAC20T4 3/4'' GOYEN type Electromagnetic Pulse Valve Dust Collector 24V 110V 220V

Integral Pilot Model No
CA20T
CAC20T4
CA25T
CAC25T4
CA35T
CA45T
CA50T
CA62T
CA76T
Remote Pilot Model No
RCA20T
RCAC20T4
RCA25T
RCAC25T4
RCA35T
RCA45T
RCA50T
RCA62T
RCA76T
Orifice Size
20mm
20mm
25mm
25mm
35mm
45mm
50mm
62mm
76mm
Port Size
G3/4''
G3/4''
G1''
G1''
G1-1/2''
G1-1/2''
G2''
G2-1/2''
G3''
Pilot Size
G1/8''
G1/4''
Diaphragm Number
1
2
Diaphragm Material
TPE (Shockwave), NBR, FKM
Body Material
Aluminum
Pressure Range
5 to 125 psi
Voltage
24VDC, 24VAC, 110VAC, 220VAC

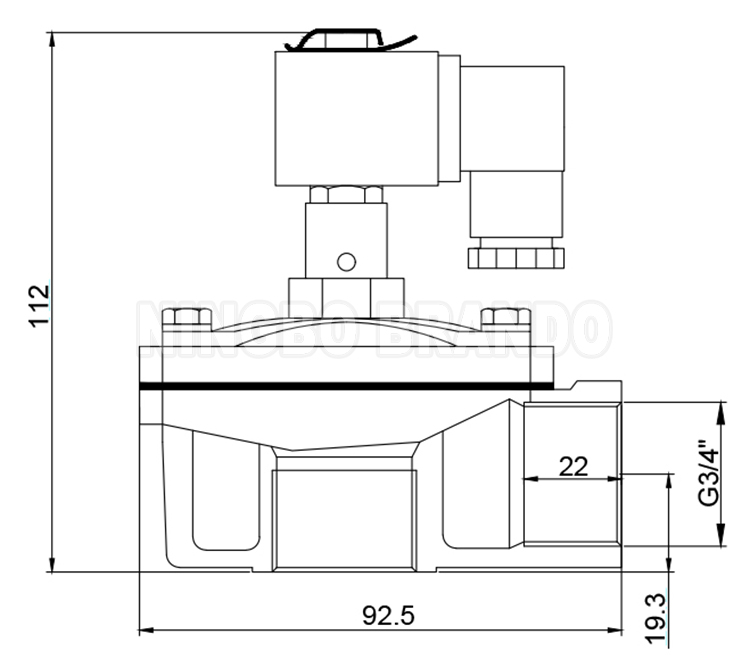

CAC20T4 Dimension:


Our Production:


Related Products:

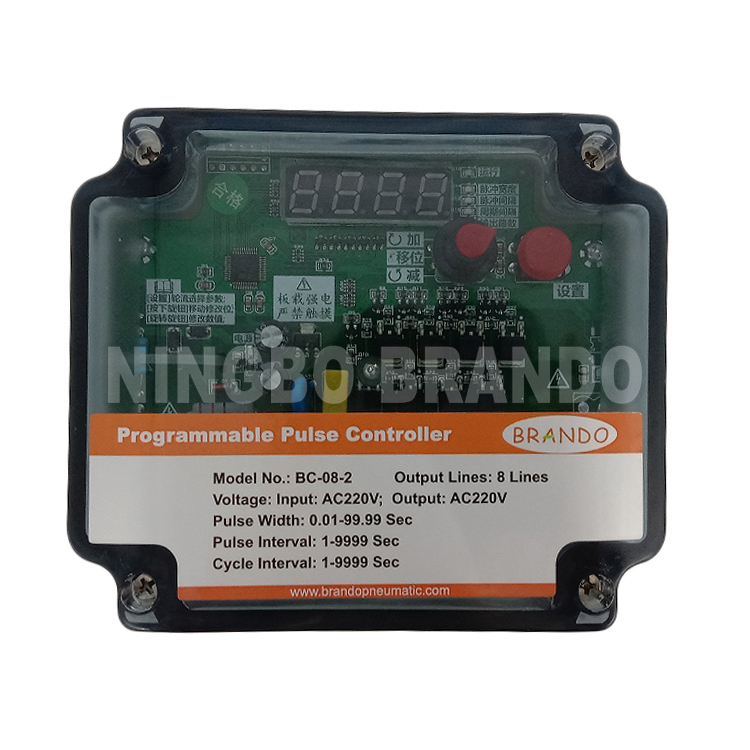

Solenoid Coil Solenoid Armature Diaphragm Pulse Controller
