Dust Collector Valve DMF-Y-25 1'' DMF Solenoid Valve Embedded Type Valve
Dust Collector Valve DMF-Y-25 1'' DMF Solenoid Valve Embedded Type Valve
Dust Collector Valve DMF-Y-25 1'' DMF Solenoid Valve Embedded Type Valve
Dust Collector Valve DMF-Y-25 1'' DMF Solenoid Valve Embedded Type Valve
Specifications
Valve Type :
Full Immersion
Diaphragm Material :
NBR(Common), FKM(Available)
Brand Name :
BRANDO
MOQ :
1 pc
Certification :
None
No of Diaphragm :
1
Body Material :
Aluminum Alloy
Coil Voltage :
24V, 220V
Price :
Negotiation
Model Number :
DMF-Y-25
Place of Origin :
CHINA
Product Name :
BFEC Pulse Jet Valve
Delivery Time :
Negotiation
Supply Ability :
100000 pcs per month
Packaging Details :
Inner Box,Carton,Pallet
Port Size :
1''
Payment Terms :
T/T,Western Union,MoneyGram
Description

Dust Collector Valve DMF-Y-25 1'' DMF Solenoid Valve Embedded Type Valve


DMF-Y-25 is a 1-inch (DN25) full-immersion / embedded electromagnetic pulse jet valve designed for reverse-pulse cleaning of dust collector filter systems. It is part of the BFEC/DMF-Y series and uses an integrated solenoid pilot.


How DMF-Y-25 Works

Unlike the threaded DMF-Z-25 or straight-through DMF-T-25S, the DMF-Y-25 is mounted directly onto the compressed-air header/tank. The valve draws compressed air directly from the header during the cleaning pulse.

The operating sequence is:

1, The pulse controller energizes the solenoid coil.
2, The pilot mechanism changes pressure in the diaphragm chamber.
3, The diaphragm opens rapidly.
4, Compressed air is released from the header into the blow tube.
5, When the electrical pulse ends, the diaphragm closes.

This arrangement makes the tank-mounted installation structure the key characteristic of DMF-Y-25.


The DMF-Y series is designed for cleaning filter bags, cartridges, envelope filters, ceramic filters, and sintered-metal-fiber filters.

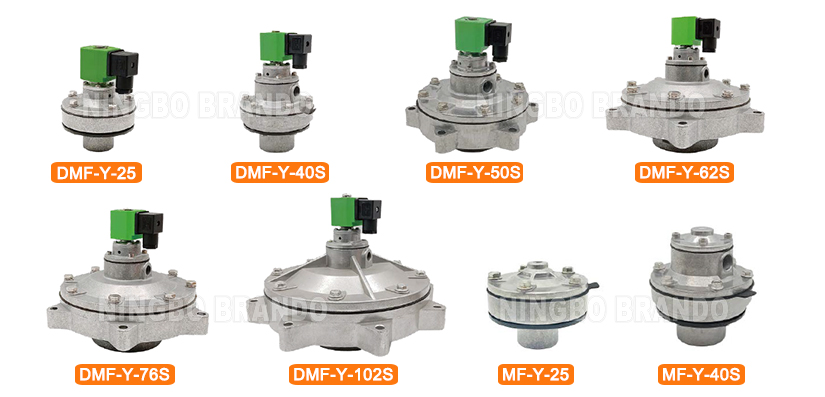

Technical Data of SBFEC Type DMF Series Submerged Pulse Jet Valve:


Dust Collector Valve DMF-Y-25 1'' DMF Solenoid Valve Embedded Type Valve
Integral Pilot
DMF-Y-25
DMF-Y-40S
DMF-Y-50S
DMF-Y-62S
DMF-Y-76S
DMF-Y-102S
DMF-YA-76S
DMF-Y-102SA
DMF-YB-76S
DMF-Y-102SE
Remote Pilot
MF-Y-25
MF-Y-40S
MF-Y-50S
MF-Y-62S
MF-Y-76S
MF-Y-102S
MF-YA-76S
MF-Y-102SA
MF-YB-76S
MF-Y-102SE
Diameter (Inch)
1''
1-1/2''
2''
2-1/2''
3''
4''
Diaphragm Number
1
2
Diaphragm Material
NBR (Standard), FKM (Optional)
Body Material
Aluminum
Pressure Range
0.1 to 0.8 MPa
Voltage
24VDC, 24VAC, 110VAC, 220VAC

Main Dimension:

Dust Collector Valve DMF-Y-25 1'' DMF Solenoid Valve Embedded Type Valve



More BFEC Pulse Valve For You to Choose:

Right Angle Type Quick Mount Type Submerged Type

Diaphragm Solenoid Coil Armature Assembly Pulse Controller
