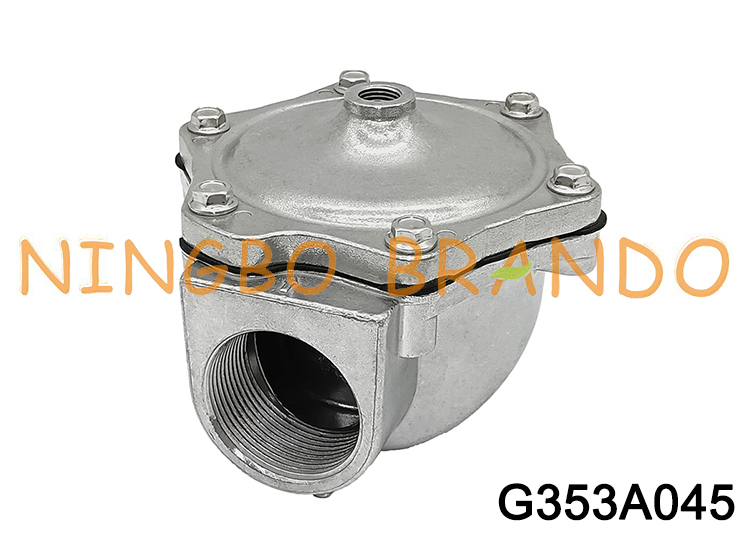

ASCO Type G353A045 2/2 NC G1-1/2 Threaded Aluminium Pilot Operated Valve
ASCO Type G353A045 2/2 NC G1-1/2 Threaded Aluminium Pilot Operated Valve
ASCO Type G353A045 2/2 NC G1-1/2 Threaded Aluminium Pilot Operated Valve
ASCO Type G353A045 2/2 NC G1-1/2 Threaded Aluminium Pilot Operated Valve
ASCO Type G353A045 2/2 NC G1-1/2 Threaded Aluminium Pilot Operated Valve
ASCO Type G353A045 2/2 NC G1-1/2 Threaded Aluminium Pilot Operated Valve
Specifications
Model Number :
G353A045
Diaphragm Material :
NBR(Common), FKM(Available)
MOQ :
1 pc
Delivery Time :
Negotiation
Body Material :
Aluminum Alloy
Payment Terms :
L/C,T/T,Western Union
Power :
Pneumatic
Structure :
Diaphragm
Price :
Negotiation
Media :
Air
Supply Ability :
100000 pcs per month
Type :
Right Angle Type Diaphragm Valve
Port Size :
1-1/2'' 1.5'' Inch
Place of Origin :
China
Temperature :
-25 to +80℃
Certification :
CE
Pressure :
0.1 to 0.8MPa
Brand Name :
Brando
Number of Diaphragm :
1
Packaging Details :
inner boxes,cartons,pallets
Description

ASCO Type G353A045 2/2 NC G1-1/2 Threaded Aluminium Pilot Operated Valve


The ASCO type G353A045 is a 1-1/2'' remote pilot diaphragm pulse valve designed for reverse-pulse baghouse dust collector systems and industrial air filtration.


Key Technical Specifications


Ref: ASCO (Series 353)

Valve Type: 2/2-Way normally closed diaphragm pulse valve

Port / Pipe Size: 1-1/2" threaded connection (G 1-1/2" / BSP threads, DN40)

Operation: Remote pilot operated (1/8" pilot connection)

Body Material: Die-cast aluminum

Diaphragm Material: TPC-ET / Hytrel

Operating Pressure: 0.35 to 8.5 bar (approx. 5 to 123 psi)

Primary Application: Reverse-pulse dust collectors, baghouses, and air filtration systems


Technical Data of 353 Series Pulse Jet Valves:

ASCO Type G353A045 2/2 NC G1-1/2 Threaded Aluminium Pilot Operated Valve

Integral Pilot
Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Remote Pilot
Model No
G353A041
G353A042
G353A045
G353A046
G353A048
G353A049
Orifice Size
25mm
25mm
50mm
66mm
66mm
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
Diaphragm Number
1
2
Pliot Size
G1/4''
Diaphragm Material
TPE, NBR, FKM
Body Material
Aluminium
Pressure Range
0.35 to 8.5 bar
Voltage
24VDC, 24VAC, 110VAC, 220VAC

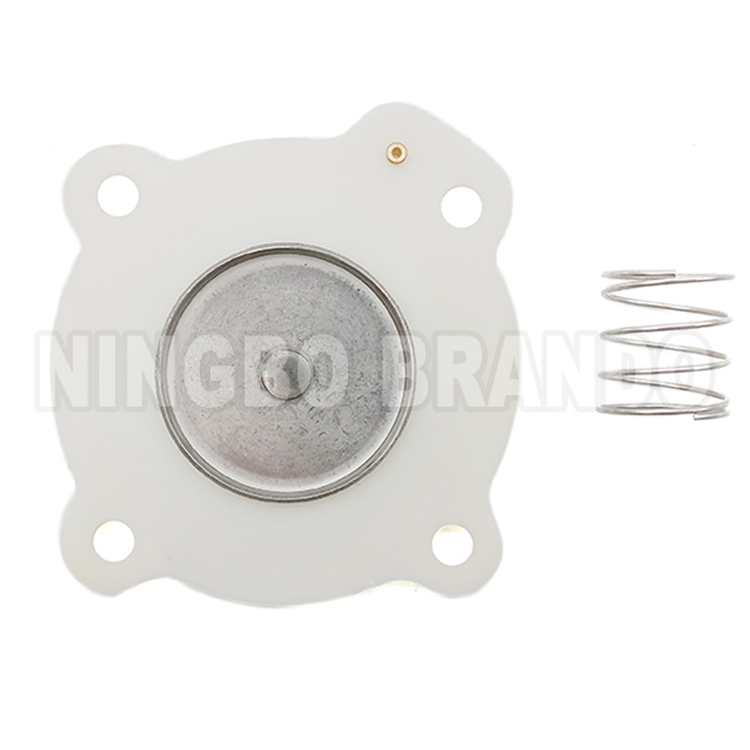

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.

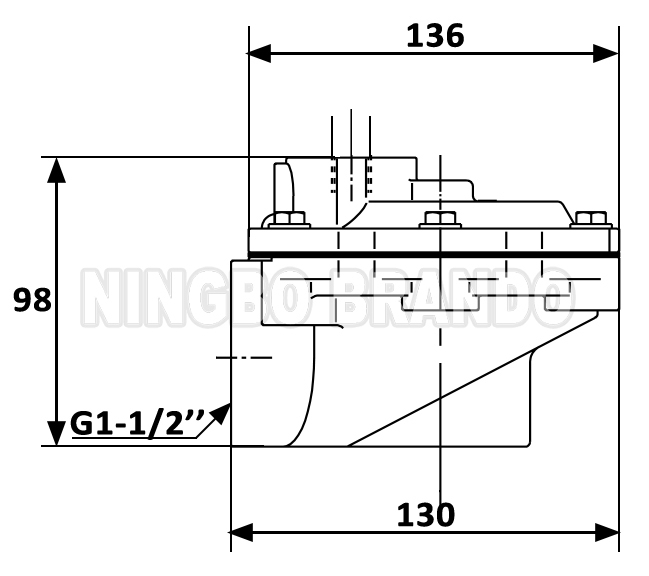

Main Dimension:

ASCO Type G353A045 2/2 NC G1-1/2 Threaded Aluminium Pilot Operated Valve
