G353A048 Air Controlled Pulse Valve 2 Inch Diaphragm Dust control Valve
G353A048 Air Controlled Pulse Valve 2 Inch Diaphragm Dust control Valve
G353A048 Air Controlled Pulse Valve 2 Inch Diaphragm Dust control Valve
G353A048 Air Controlled Pulse Valve 2 Inch Diaphragm Dust control Valve
G353A048 Air Controlled Pulse Valve 2 Inch Diaphragm Dust control Valve
G353A048 Air Controlled Pulse Valve 2 Inch Diaphragm Dust control Valve
Specifications
Port Size :
2''
Place of Origin :
Ningbo, China
Model Number :
G353A048
Working Pressure Range :
0.35 to 8.5 bar
MOQ :
1 pc
Delivery Time :
4 to 7 working days
Diaphragm Material :
NBR, FKM
Payment Terms :
T/T,PayPal,Western Union
Valve Design :
Right Angle, Threaded Port
Orifice Size :
66mm
Price :
Negotiation
Remote Pilot Connection :
1/4''
Supply Ability :
10000pcs per month
Product Name :
Pulse Jet Valve
Certification :
CE, ISO
Brand Name :
BRANDO
Application :
Dust Collector
Packaging Details :
Box, Carton, Pallet
Description

G353A048 Air Controlled Pulse Valve 2 Inch Diaphragm Dust control Valve


The ASCO type G353A048 is a 2'' remote pilot double-diaphragm pulse valve engineered for high-flow reverse-pulse dust collector systems.


Key Technical Specifications


Ref: ASCO (Series 353)

Valve Type: 2/2-Way normally closed double-diaphragm pulse valve

Port / Pipe Size: 2" threaded connection (G 2", DN50)

Operation: Remote pilot operated (1/8" pilot connection)

Body Material: Die-cast aluminum

Diaphragm Repair Kit: C113684

Operating Pressure: 0.35 to 8.5 bar (approx. 5 to 123 psi)

Primary Application: Large-scale dust collectors, baghouses, and air filtration systems requiring high peak airflow


Comparison within Series 353


G353A041: 3/4" port size

G353A042: 1" port size

G353A045: 1-1/2" single-diaphragm model

G353A046: 1-1/2" double-diaphragm model

G353A048: 2" double-diaphragm model for larger pipe capacity and higher air volume delivery

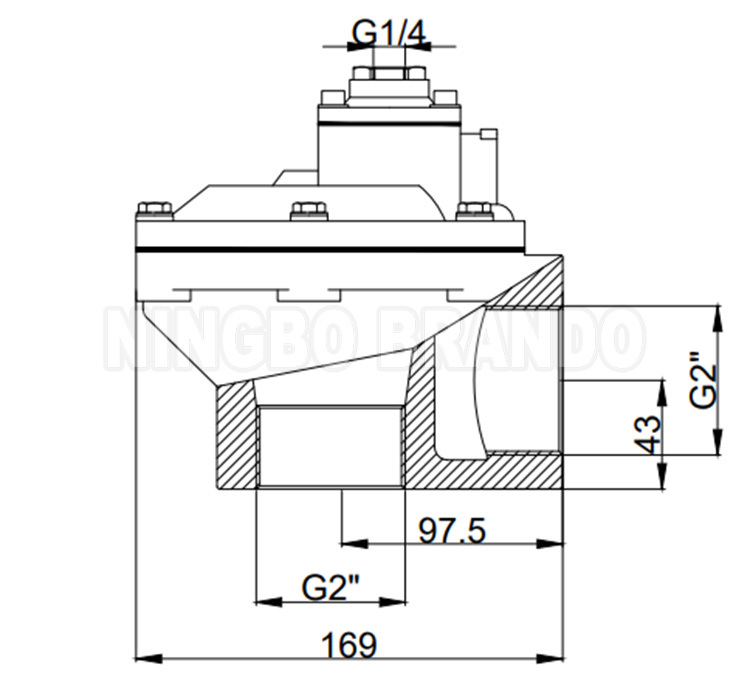

Dimension of G353A048 Pulse Valve:

G353A048 Air Controlled Pulse Valve 2 Inch Diaphragm Dust control Valve

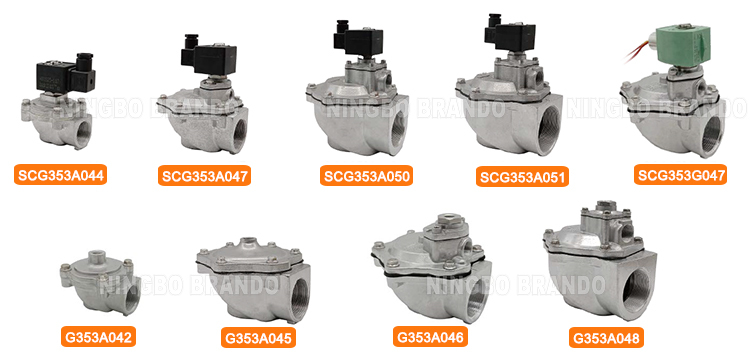

Technical Data of 353 Series Pulse Jet Valves:

G353A048 Air Controlled Pulse Valve 2 Inch Diaphragm Dust control Valve

Integral Pilot
Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Remote Pilot
Model No
G353A041
G353A042
G353A045
G353A046
G353A048
G353A049
Orifice Size
25mm
25mm
50mm
66mm
66mm
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
Diaphragm Number
1
2
Pliot Size
G1/4''
Diaphragm Material
TPE, NBR, FKM
Body Material
Aluminium
Pressure Range
0.35 to 8.5 bar
Voltage
24VDC, 24VAC, 110VAC, 220VAC


Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.


Related Products:

G353A048 Air Controlled Pulse Valve 2 Inch Diaphragm Dust control Valve G353A048 Air Controlled Pulse Valve 2 Inch Diaphragm Dust control Valve G353A048 Air Controlled Pulse Valve 2 Inch Diaphragm Dust control Valve G353A048 Air Controlled Pulse Valve 2 Inch Diaphragm Dust control Valve

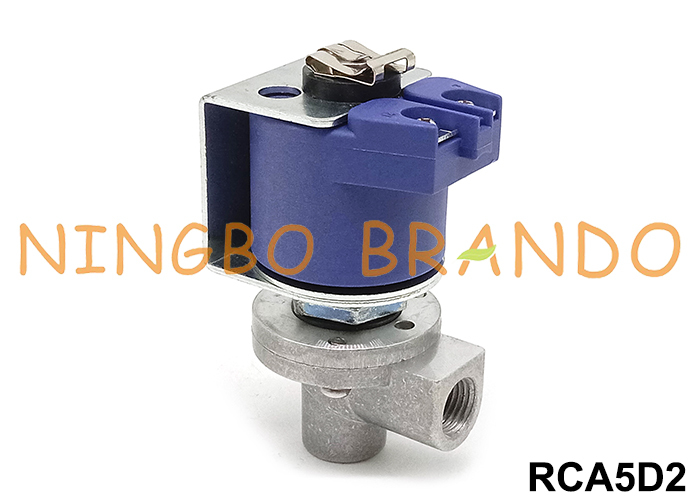

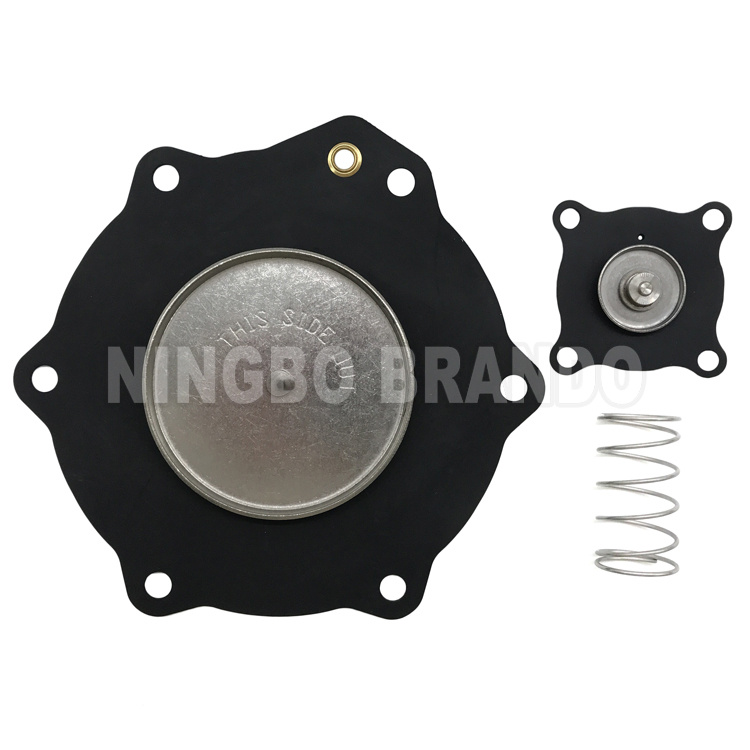

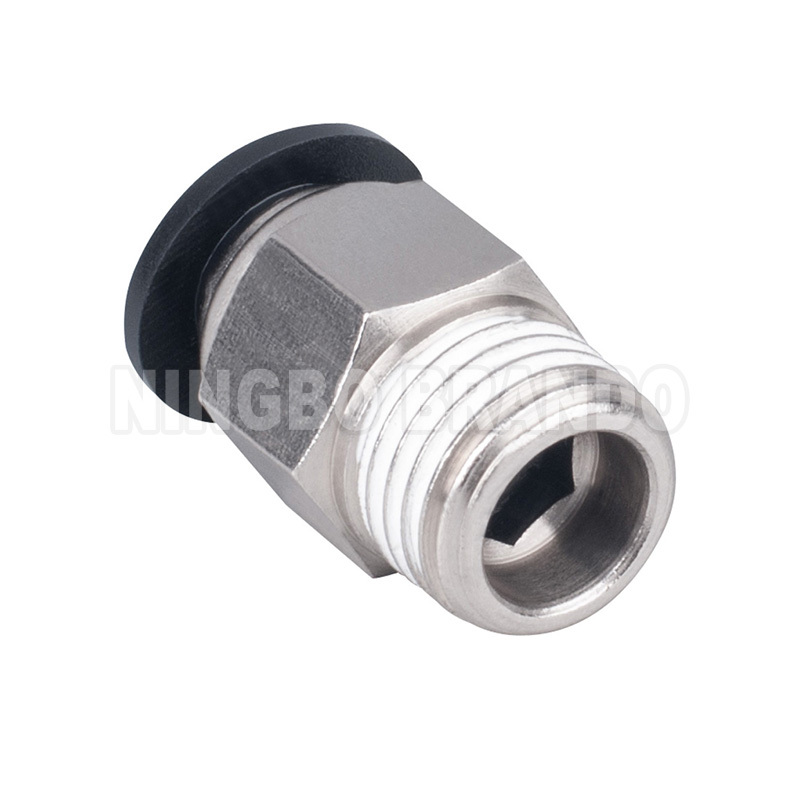

Pneumatic Fitting Diaphragm Remote Pilot Enclosure Pulse Controller


Production Picture of Pulse Valve:


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
