CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000
CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000
CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000
CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000
Specifications
Brand Name :
BRANDO
Price :
Negotiation
Model Number :
CAC25FS
Payment Terms :
T/T,Western Union,Paypal
Packaging Details :
Inner box, Carton, Pallet
Supply Ability :
10000 pcs per month
Model number :
CA25FS
Place of Origin :
Ningbo, China
MOQ :
1 pc
Delivery Time :
4 to 7 working days
Power :
Pneumatic
Connection :
Flanged
Media :
Air
Working pressure :
Medium Pressure
Certification :
CE, ISO
Temperature of media :
Normal Temperature
Diaphragm number :
1
Voltage :
24VDC, 24VAC, 110VAC, 220VAC
Description

CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000

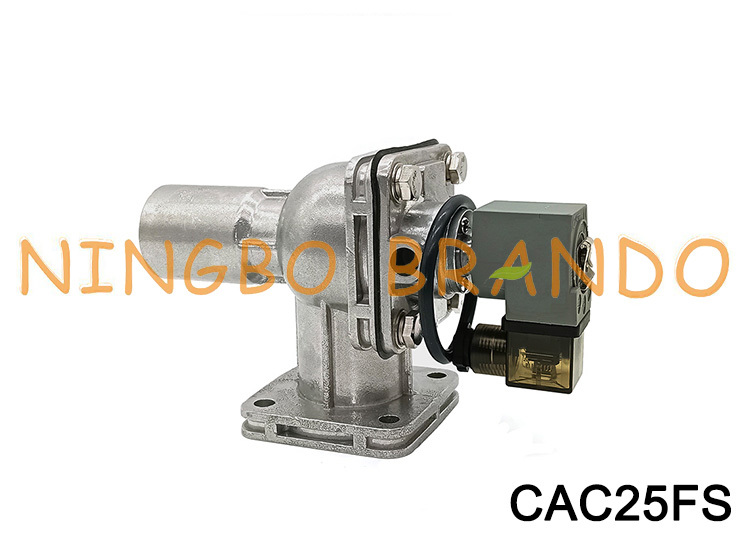

A CAC25FS is a 1-inch (25 mm) integral pilot flanged pulse jet diaphragm valve for dust collectors, baghouses, and industrial reverse pulse jet filter cleaning systems.

Similar to the CA45FS, the "CA" designation indicates that it features an integral solenoid pilot attached directly to the top cover, while the "C" in "CAC" specifically indicates standard conduit/terminal connection enclosures.


Key Technical Specifications


Port Size & Connection: 1-inch (25 mm) flanged inlet connection with a slide-seal outlet, designed to allow quick installation and removal from blowpipes without disassembling system piping.

Operation: Integrally piloted solenoid operation. Common voltage options include 24V DC, 110V AC, and 220V/240V AC (e.g., model CAC25FS010-305).

Body Material: Pressure die-cast aluminum alloy.

Diaphragm Material (such as the K2500 / K2503 series): Standard Nitrile/Buna-N Shockwave diaphragm for standard temperatures, with Viton options available for high-temperature/chemical environments.


Specification of FS Series Pulse Jet Valves:

CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000

Integral Pilot
DMF-ZF-25
DMF-ZF-40S
Remote Pilot
MF-ZF-25
MF-ZF-40S
Orifice Size (mm)
25
40
Port Size
1''
1-1/2''
Pilot Size
1/8'', 1/4''
Diaphragm Number
1
2
Diaphragm Material
NBR (Standard), FKM (Optional)
Body Material
Aluminum
Coil Voltage
24VDC, 24VAC, 110VAC, 220VAC
Pressure Range
0.1 to 0.8 MPa

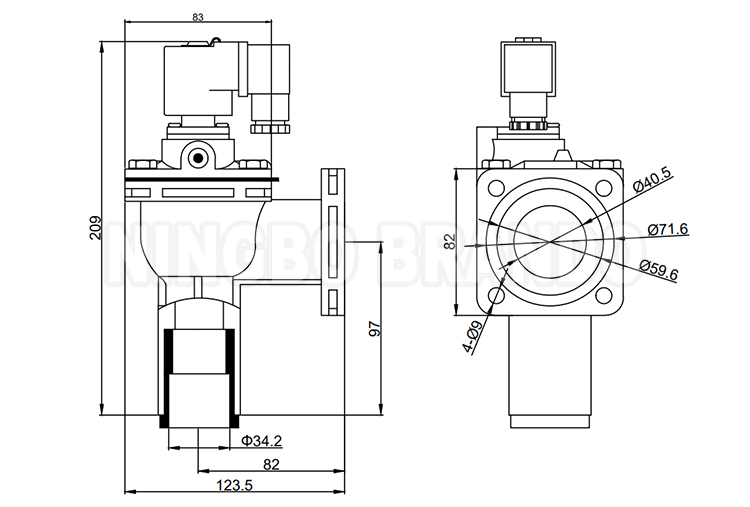

Dimension Diagram:

CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000


More Goyen Type Pulse Jet Valves for you to choose:

CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000 CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000 CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000
T Series DD Series FS Series MM Series
CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000 CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000 CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000 CA25FS CAC25FS 1 Inch 25mm Flanged Pulse Valves CAC25FS010 CAC25FS000
RCA Series Solenoid Coil Solenoid Armature Diaphragm


Youtube Video Of Goyen Type CAC25FS Solenoid Valve For Dust Collector:
