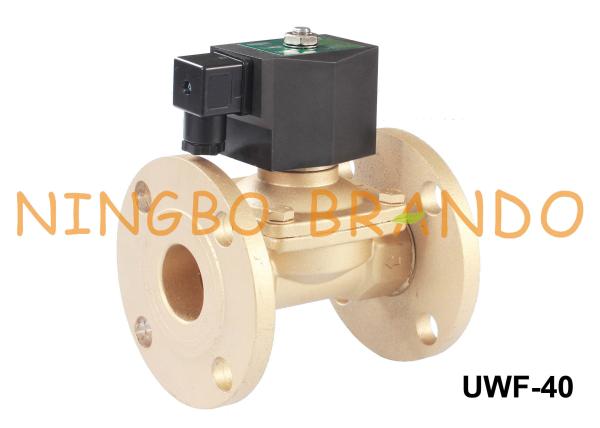

1 1/2'' Flanged Brass Water Electric Solenoid Valve 24VDC 220VAC
1 1/2'' Flanged Brass Water Electric Solenoid Valve 24VDC 220VAC
Specifications
Brand Name :
Brando
Model Number :
UWF-40
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
4-8 days
Packaging Details :
Inner boxes, Carton, Pallet
Port Size :
1 1/2''
Orifice Size :
40mm
Pipe Connection :
Flanged
Operation Mode :
2 Way Normally Closed
Action :
Direct Lift Diaphragm
Working Fluids :
Air, Water, Oil, Gas
Body Material :
Brass
Seal Material :
NBR, FKM, EPDM
Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Pressure Range :
0 to 1 MPa
Description

1 1/2'' Flanged Brass Water Electric Solenoid Valve 24VDC 220VAC

Product Features:

1. Function: 2 Way Normally Closed, 2 Way Normally Open
2. Operation: Direct Lifting Diaphragm
3. Port Sizes: 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'', etc;
4. Orifice Sizes: 15mm, 20mm, 25mm, 35mm, 40mm, 50mm

5. Pipe Connection: Flanged
6. Working Medium: Water, Air, Gas, Oil, etc.

7. Valve Body Material: Brass, Stainless Steel
8. Valve Seal Material: NBR, EPDM, FKM;
9. Solenoid Coil Voltages: 12VDC 24VDC, 24VAC, 110VAC, 220VAC, etc;
10. Solenoid Coil Protection Class: IP65, IP67, Ex Proof, etc;

Technical Data of Solenoid Valve:

UWF Series
(Brass)
UWF-15
UWF-20
UWF-25
UWF-35
UWF-40
UWF-50
SUWF Series
(SS304)
SUWF-15
SUWF-20
SUWF-25
SUWF-35
SUWF-40
SUWF-50
Pipe Size
1/2''
3/4''
1''
1 1/4''
1 1/2''
2''
Orifice Size
16mm
20mm
25mm
35mm
40mm
50mm
Body Material
Brass, Stainless Steel
Diaphragm Material
NBR, FKM, EPDM
Fluid
Water, Air, Light Oil, Gas, Vacuum
Function
2 Way, Normally Closed
Action
Direct Liftng Diaphragm
Working Pressure
0 to 1 MPa
Fluid
Temperature
-5 to +80℃ (NBR), -5 to +150℃ (FKM)
Voltages
12VDC, 24VDC, 24VAC, 110VAC, 220VAC


Main Dimension of Solenoid Valve:

1 1/2'' Flanged Brass Water Electric Solenoid Valve 24VDC 220VAC

UWF Series
(Brass)
SUWF Series
(SS304)
Orifice Size
H
L
D
D1
n-d
UWF-15
SUWF-15
16
145
115
95
65
4-φ14
UWF-20
SUWF-20
20
145
115
105
75
4-φ14
UWF-25
SUWF-25
25
166
135
110
85
4-φ14
UWF-35
SUWF-35
35
205
148
135
100
4-φ18
UWF-40
SUWF-40
40
218
160
145
110
4-φ18
UWF-50
SUWF-50
50
228
202
156
125
4-φ18

Brando Factory Production of Solenoid Valves:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
