ASCO Type 3 Way Brass Solenoid Valve For Water Air 1/8'' 1/4'' 24V 220V
ASCO Type 3 Way Brass Solenoid Valve For Water Air 1/8'' 1/4'' 24V 220V
ASCO Type 3 Way Brass Solenoid Valve For Water Air 1/8'' 1/4'' 24V 220V
ASCO Type 3 Way Brass Solenoid Valve For Water Air 1/8'' 1/4'' 24V 220V
Specifications
Brand Name :
BRANDO
Model Number :
VX31, VX32, VX33
Certification :
CE, ISO
Place of Origin :
China, Ningbo
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
200000 pcs per month
Delivery Time :
4 to 7 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
Solenoid Valve
Body Material :
Brass, Stainless Steel
Seal Material :
NBR, EPDM, VITON
Working Medium :
Air, Water, Gas, Liquid, etc
Port Size :
1/8'', 1/4''
Orifice Size :
1.5mm to 4mm
Working Pressure Range :
0 to 1.3 MPa
Operation :
Direct Acting
Function :
3 Way Normally Closed, 3 Way Normally Open, 3 Way Universal Operation
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

ASCO Type 3 Way Brass Solenoid Valve For Water Air 1/8'' 1/4'' 24V 220V


Features of VX Series 3 Way Solenoid Valve:

1. Working Medium: Air, Water, Gas, Liquid, etc
2. Working Pressure Range: 0 to 13 Bar (See the parameter table below for details)
3. Seal Material: NBR, EPDM, FKM
4. Body Material: Brass, Stainless Steel
5. Port Size: 1/8'', 1/4''
6. Orifice Size: 1.5mm to 4mm
7. Operation: Direct Acting
8. Function: 3 Way Normally Closed, 3 Way Normally Open, 3 Way Universal Operation
9. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Technical Data of VX Series Solenoid Valve:

Model
Function
Orifice Size
(mm)
Port Size
(inch)
CV
Working Pressure (bar)
Medium Temperature
AC
DC
VX31
3 Way, Normally Closed
1.5
1/8'', 1/4''
0.07
13
11
NBR: -5 to +85℃,
EPDM: -5 to +150℃,
VITON: -10 to +150℃
2.0
0.14
11
9
2.5
0.21
9
7
3.0
0.25
6
4
4.0
0.35
3.5
2
VX32
3 Way, Normally Open
1.5
0.07
13
11
2.0
0.14
11
9
2.5
0.21
9
7
3.0
0.25
6
4
4.0
0.35
3.5
2
VX33
3 Way, Universal Operation
1.5
0.07
13
11
2.0
0.14
11
9
2.5
0.21
9
7
3.0
0.25
6
4
4.0
0.35
3.5
2

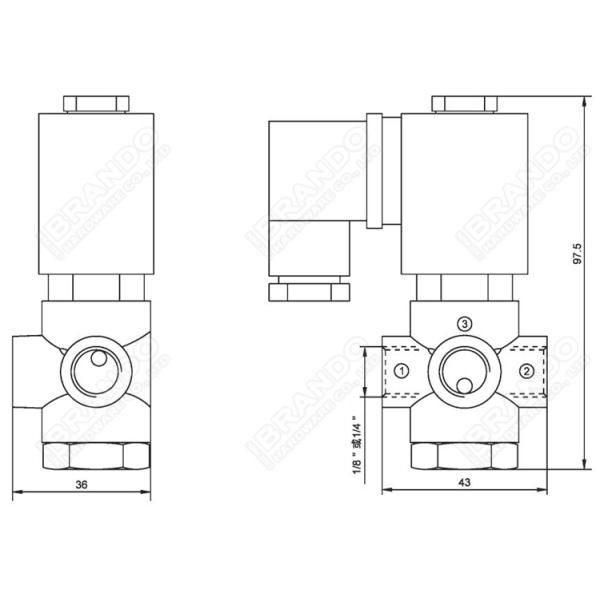

Main Dimension of VX Series Solenoid Valve:

ASCO Type 3 Way Brass Solenoid Valve For Water Air 1/8'' 1/4'' 24V 220V

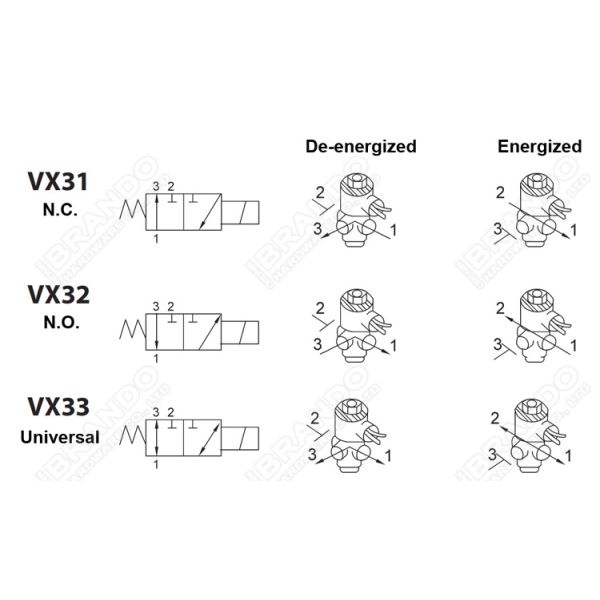

Working flow direction of VX Series Solenoid Valve:

ASCO Type 3 Way Brass Solenoid Valve For Water Air 1/8'' 1/4'' 24V 220V

Product Video of VX Series Solenoid Valve:

sp;

BRANDO Solenoid Valve Production Video:

More Solenoid Valves for you to choose:

ASCO Type 3 Way Brass Solenoid Valve For Water Air 1/8'' 1/4'' 24V 220V ASCO Type 3 Way Brass Solenoid Valve For Water Air 1/8'' 1/4'' 24V 220V ASCO Type 3 Way Brass Solenoid Valve For Water Air 1/8'' 1/4'' 24V 220V
Brass Solenoid Valve Stainless Steel Solenoid Valve Plastic Solenoid Valve


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
