Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V
Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V
Specifications
Brand Name :
Brando
Model Number :
SVD144
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
4-8 days
Packaging Details :
Inner boxes, Carton, Pallet
Product Name :
Miniature Solenoid Valve
Rated Voltage :
4.5V, 6V, 12V
Working Voltage Range :
3.5-5.0V, 4.8-7.2V, 10.8-13.2V
Working Current :
≤250, ≤320, ≤117
Power Consumption :
≤1.125, ≤1.96 ≤1.104
DC Resistance :
20±10%, 150±10%
Leakage :
≤15mmHg / Min
Exhaust Speed :
500CC /＜6S
Description

Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V

Miniature Solenoid Valves Application Examples:
1. Medical Equipments: Blood Pressure Monitor, Air Pressure Massage, Patient Monitor, etc.
2. Massage Health Care Equipments: Foot Massage, Massage Chair, Head and Eye Massage, Massage Bed, etc.
3. Household Appliances: Anti-snore Apparatus, Memory Pillow, Coffee Machine, Water Purifier, etc.
4. Other Applications: Kitchen and Bathroom Parts, Body Beauty Cares, Gas Detection and Analysis, Agricultural Application, and Scent Diffuse Machine, etc.

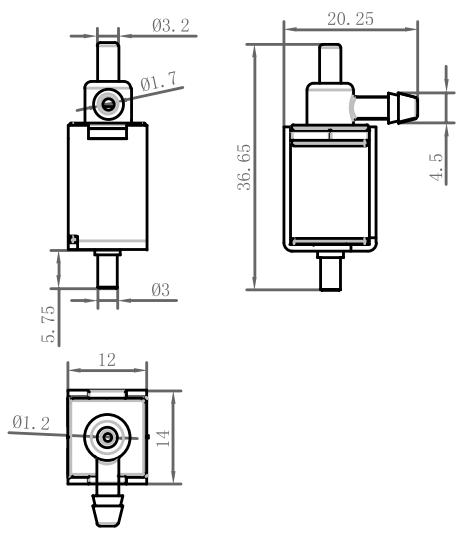

Dimension and Data of Miniature Plastic Solenoid Valve:

Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V

Model
Rated
Voltage
Working Current
Power Consumption
Working Voltage Range
DC Resistance
Leakage
Exhaust Speed
SVD144-4.5
4.5V
≤250
≤1.125
3.5-5.0V
20±10%
≤15mmHg / Min
500CC /＜6S
SVD144-6
6V
≤320
≤1.96
4.8-7.2V
20±10%
SVD144-12
12V
≤117
≤1.104
10.8-13.2V
150±10%

Brando Solenoid Valve Factory Production Video:

More Miniature Plastic Solenoid Valves for you to choose:

2 Way Miniature Solenoid Valve
Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V
Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V

3 Way Miniature Solenoid Valve
Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V
Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V

Combination
Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V Miniature Air Water Plastic Solenoid Valve 2 Way 3 Position 6V 12V


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
