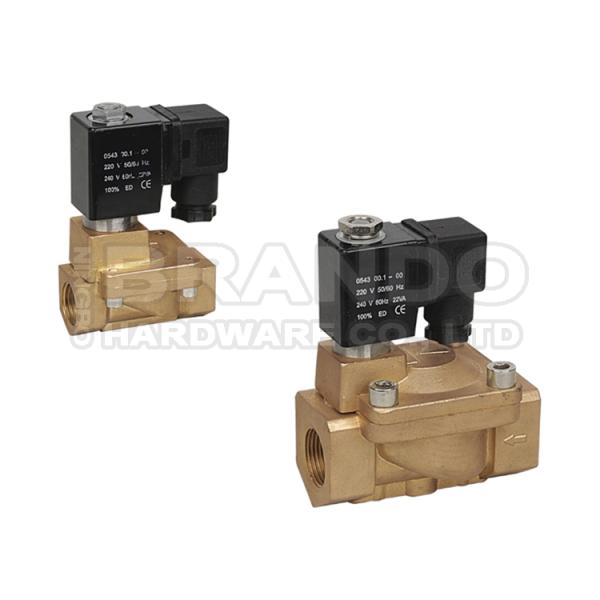

PU220A-06 Shako Type 2/2 Way NC Brass Solenoid Valve 3/4'' 24V DC
PU220A-06 Shako Type 2/2 Way NC Brass Solenoid Valve 3/4'' 24V DC
Specifications
Brand Name :
Brando
Model Number :
PU220A-06
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability :
300000 sets per month
Delivery Time :
4-8 days
Packaging Details :
Inner Box, Carton, Pallet
Port Size :
3/4''
Orifice Size :
20mm
Function :
2 Way, Normally Closed
Operation :
Assisted Lift
Body Material :
Brass
Seal Material :
NBR
Voltages :
24VDC, 110VAC, 220VAC
Working Pressure Range :
0 to 7 kg/cm²
Description

PU220A-06 Shako Type 2/2 Way NC Brass Solenoid Valve 3/4'' 24V DC

The PU220A is a 2/2-way (2 port / 2 positions) normally closed solenoid valve designed to stay closed until electrical power is applied. When power is applied the coil is magnetised which in turn lifts the armature and diaphragm revealing a small pilot hole in the centre of the diaphragm that allows the pressure above the diaphragm to vent out downstream so that the combined force of the spring lift and inlet pressure will fully lift the diaphragm into the open position allowing full flow through the valve. When the power is removed, the armature and diaphragm drop back down sealing the pilot hole, pressure increases above the diaphragm and the valve fully closes again within 20 to 50 milliseconds.

Main Dimension of PU220A series Solenoid Valve:

PU220A-06 Shako Type 2/2 Way NC Brass Solenoid Valve 3/4'' 24V DC

PU220 Series
A
B
C
R
PU220A-03
66.5
101
48
3/8''
PU220A-04
66.5
101
48
1/2''
PU220A-06
71
107
58
3/4''
PU220A-08
96
120.5
70
1''


Technical Data of PU220A series Solenoid Valve:

PU220A Series
PU220A-03
PU220A-04
PU220A-06
PU220A-08
Orifice Size
13.0mm
13.0mm
20.0mm
25.0mm
Port Size
3/8''
1/2''
3/4''
1''
Effective Area
76mm²
76mm²
162mm²
220mm²
Cv Value
4.00
4.00
8.60
11.0
Medium
Compressed Air, Light oil, Water
Action
Assisted Lift
Function
2 Way, Normally Closed
Body Material
Brass
Pressure
Range (bar)
0 to 7 kg/cm²
Temperature Range
NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -10 to +150℃, Si: -15 to 150℃
Duty Cycle
100% ED
Coil Type
DIN
Protection Class
IP65
Insulation Class
F
Standard Voltages
24VDC, 110VAC, 220VAC, the other voltage is optional

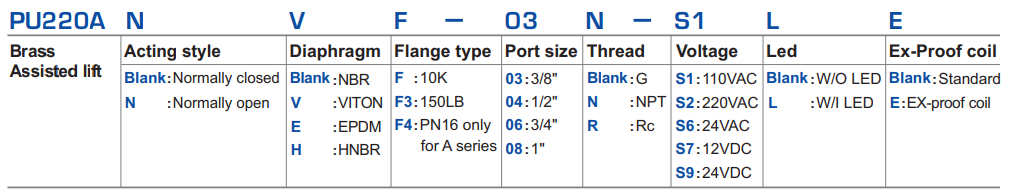

Ordering Code of PU220A series Solenoid Valve:

PU220A-06 Shako Type 2/2 Way NC Brass Solenoid Valve 3/4'' 24V DC


Brando Solenoid Valve Factory Production Video:

More Shako Type Solenoid Valves for you to choose:

PU220A-06 Shako Type 2/2 Way NC Brass Solenoid Valve 3/4'' 24V DC PU220A-06 Shako Type 2/2 Way NC Brass Solenoid Valve 3/4'' 24V DC

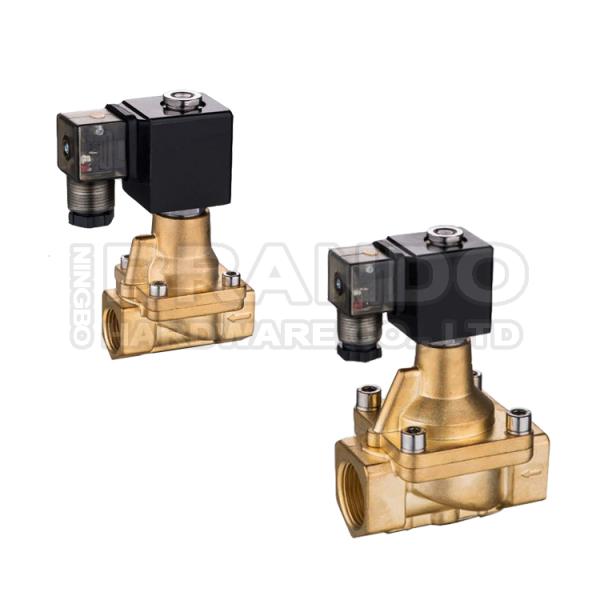

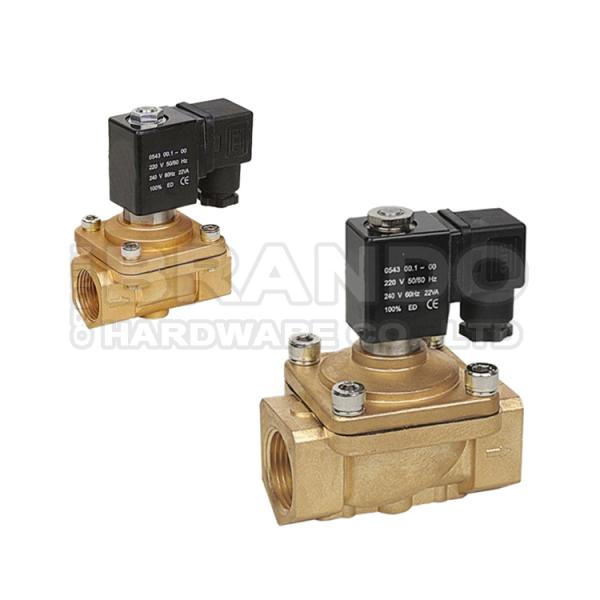

PU220A Series PU225A Series
PU220A-06 Shako Type 2/2 Way NC Brass Solenoid Valve 3/4'' 24V DC PU220A-06 Shako Type 2/2 Way NC Brass Solenoid Valve 3/4'' 24V DC

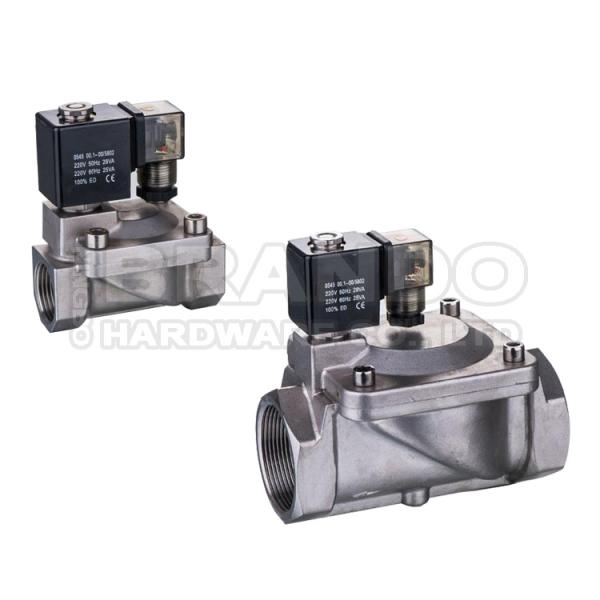

SPU225A Series PU225S Series

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
