SQP75 3'' TURBO Type Dust Collector Pulse Jet Valve SQP75-IN 220V 110V 24V
SQP75 3'' TURBO Type Dust Collector Pulse Jet Valve SQP75-IN 220V 110V 24V
Specifications
Brand Name :
BRANDO
Model Number :
SQP75
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
8pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
Negotiation
Packaging Details :
Box, Carton, Pallet
Product Name :
Pulse Valve
Port Size :
3''
Body Material :
Aluminum
Diaphragm Material :
NBR (Standard), FKM (Optional)
Working Pressure :
0.5 to 7.5 bar
Voltage :
220VAC, 110VAC, 24VAC, 24VDC
Application :
Dust Collector
Description

SQP75 3'' TURBO Type Pulse Valve

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Technical Data:

Integral Pilot Model
SQP25
SQP35
SQP55
SQP65
SQP75
SQP100
Remote Pilot Model
SQM25
SQM35
SQM55
SQM65
SQM75
SQM100
Port Size
1''
1-1/2''
2''
2-1/2''
3''
4''
Diaphragm Number
1
2
Body Material
Diecast Aluminum
Diaphragm Material
NBR (Standard), FKM (Optional)
Working Pressure
0.5 to 7.5 bar
Voltage
24VDC, 24VAC, 110VAC, 220VAC

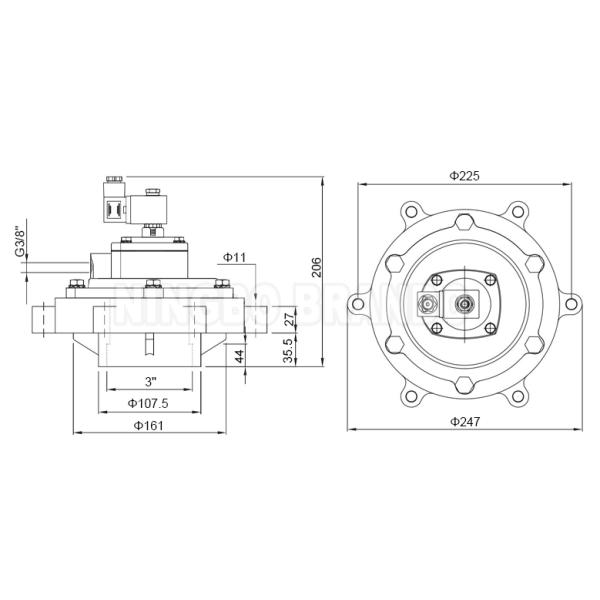

SQP75 Dimension:

SQP75 3'' TURBO Type Dust Collector Pulse Jet Valve SQP75-IN 220V 110V 24V

Our Production:

SQP75 3'' TURBO Type Dust Collector Pulse Jet Valve SQP75-IN 220V 110V 24V

Related Products:

SQP75 3'' TURBO Type Dust Collector Pulse Jet Valve SQP75-IN 220V 110V 24V SQP75 3'' TURBO Type Dust Collector Pulse Jet Valve SQP75-IN 220V 110V 24V SQP75 3'' TURBO Type Dust Collector Pulse Jet Valve SQP75-IN 220V 110V 24V SQP75 3'' TURBO Type Dust Collector Pulse Jet Valve SQP75-IN 220V 110V 24V

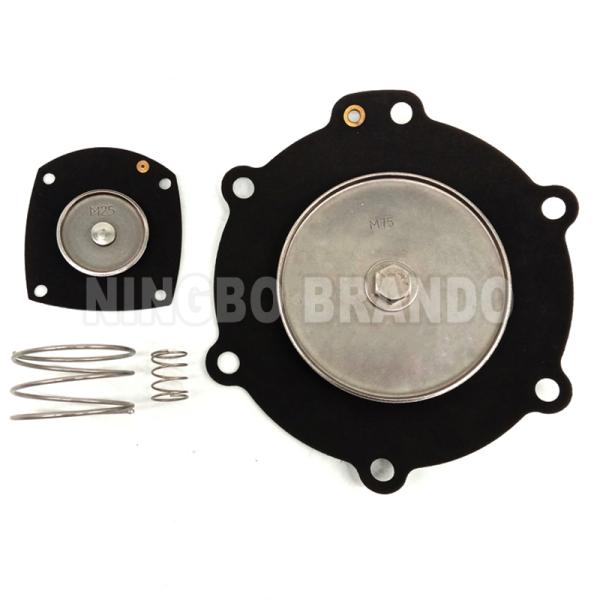

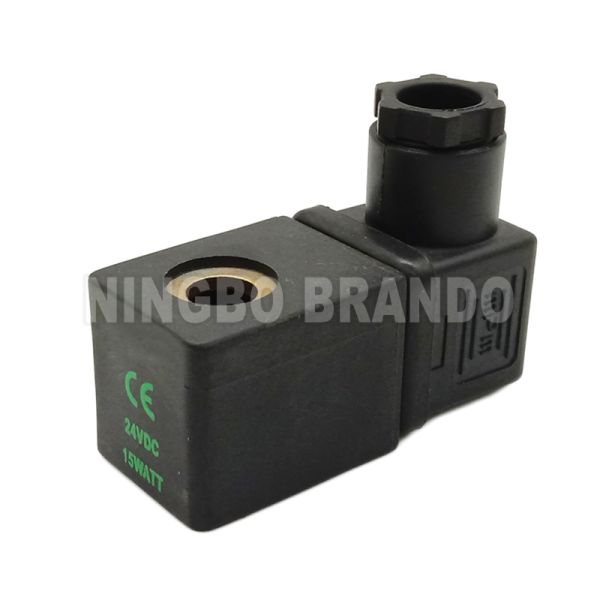

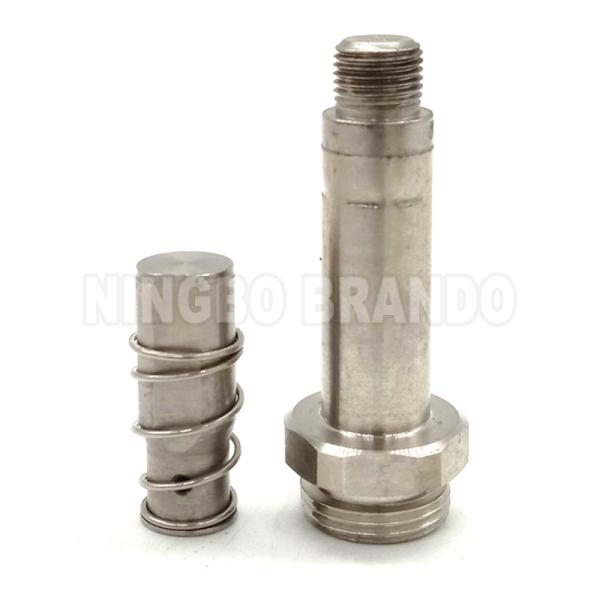

Coil Armature Diaphragm Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
