Specifications

MOQ :

Model NO. :

VS-052~VS-400

Channel Type :

Straight Through

Structure Type :

Floating Ball

Operated Way :

Lever, Gear, Pneumatic, Electric

Body Material :

Carbon Steel, Stainless Steel, Duplex Stainless

Size Range :

NPS 1/2"-8", DN15-200

Pressure Class :

Class 150-1500 Lb, PN 10-250

End Connection :

Flange, BW, SW, NPT

Ball Material :

Free cutting steel, Stainless steel (1.4571/316Ti)

Sealing Material :

Plastics, Metal

Max Pressure :

PN500

Temperature Range :

-20°C to +80°C (-4 to +176°F)

Surface Finish :

Black oxide, Zinc-layer, Zinc nickel

Production Capacity :

50000PC/Y

DN Range :

DN04 to DN25

Description

Product Description

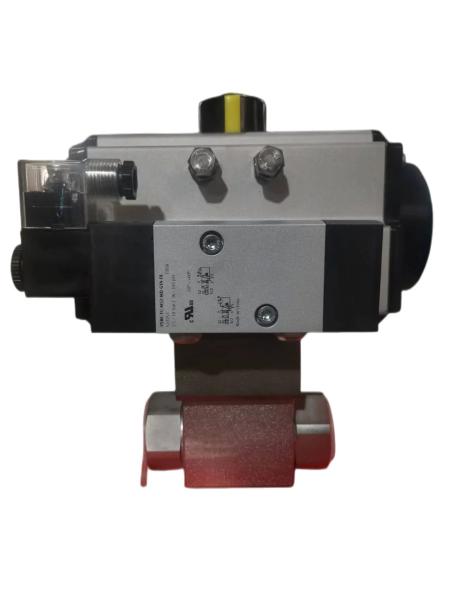

BKH - Block-type ball valve with Pneumatic actuator

Block-type ball valves for different fields of application like construction machinery, agricultural machinery, mobile hydraulics ,mining industry, gas-industry. Available in DN 4 to 25 with different connectors. Modifications: with actuator and position switch, as combination, with locking device...

Type: 2-Way ball valves

Material:

Steel

Connector:

Compression fitting light and heavy series, BSP thread, NPT thread, welding end and welding taper, UNC/UNF female thread, bulkhead connection, plug-in socket und plug nipple, thread connection.

Dimensions: DN04 to DN25

Body: S460N, S355

Ball + stem: free cutting steel, stainless steel (1.4571/316Ti)

Sealing: plastics, metal

Pressure range: up to PN500 (note table of dimensions)

Field of application: hydraulics, particularly in construction industry and agricultural machinery, mining industry and gas industry (Material of seals and body adapted to application!)

Temperature range: standard: -20°C to +80°C (-4 to +176°F)

Surface: black oxide finishing, zinc-layer, zinc nickel
