ASME B16.34 Pneumatic Ball Valve with 8Nm-4583N.m Torque and CF8/CF8M/CF3M Construction

Specifications

MOQ :

Model NO. :

VS-210SR08-FO

Connection Form :

Flange

Channel Type :

Straight Through

Structure :

Floating Ball Valve

Valve Size :

1/4"~4" (DN6~DN100)

Body Material :

CF8/CF8M/CF3M

Ball Material :

CF8/CF8M/CF3M

Seat Material :

PTFE, RTFE, Graphite & Others

Pressure Rating :

1000WOG, 2000WOG

Connection Type :

Female Thread, SW, Butt-weld

Torque Range :

8Nm-4583N.m

Function :

Blow-Down Valve, Relief Valve, Bypass-Valve

Actuation Type :

Pneumatic Quarter-Turn

Valve Type :

2-Way

End Connection :

3-PC Screwed End

Description

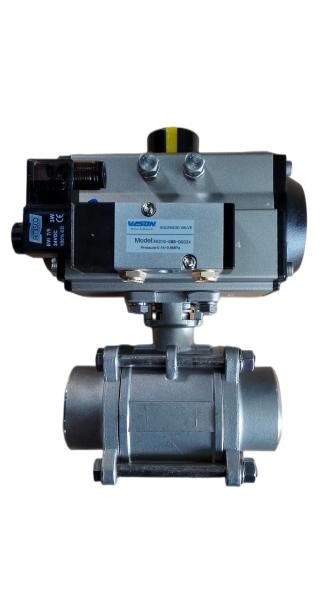

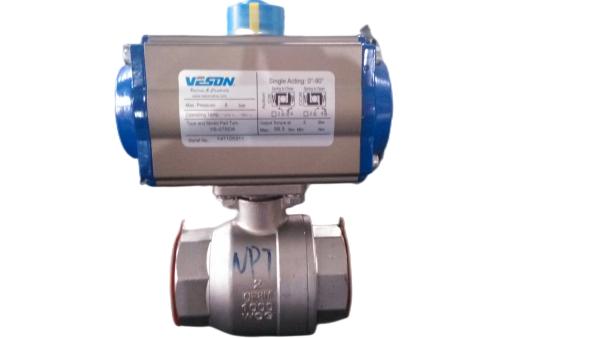

VS series pneumatic actuated ball valve (3-PC SCREWED END):
Valve: 3-PC Screwed End Ball Valve (two way)
Valve Size: 1/4"~4" ( DN6~DN100)
Body/ Ball Material: CF8/CF8M/CF3M
Seat Material: PTFE, RTFE, Graphite & Others
Rating: 1000WOG, 2000WOG
Connection: Female Thread, SW (Socket Welded), Butt-weld
