Specifications

MOQ :

Valve Size :

1" DN25

Port Type :

T-Port

Actuation Type :

Double Acting

Working Pressure :

1000 PSI

Port Design :

Full Port

Body Material :

Stainless Steel 304/316

Ball Material :

Stainless Steel 304/316

Stem Material :

Stainless Steel 304/316

Ball Seats :

PTFE

Stem Seal :

Triple PTFE/Viton

Actuator Air Pressure :

80-120 PSI

Actuator Cycle Life :

1 million cycles

Actuator Design :

Rack & Pinion

Actuator Body :

Anodized Aluminum

Mounting Standard :

ISO5211

Description

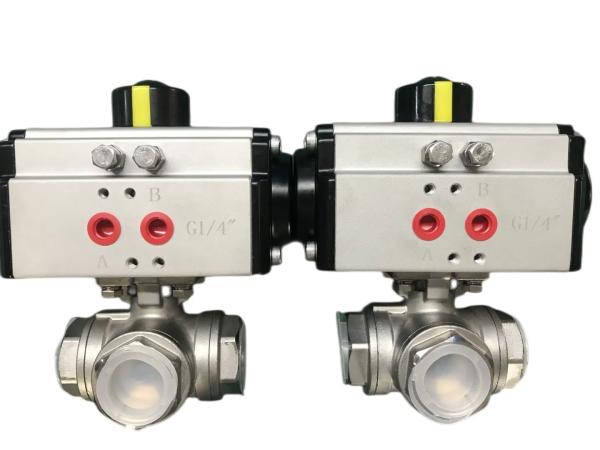

Veson Air Actuated 3-Way SS T-Port Ball Valve, Double Acting stainless steel full port three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. This diverter valve has a T-port flow pattern. There is no flow shutoff position with this type valve. Double acting actuators use an air pressure signal (80-120PSI) to change the valve to position 1 or position 2. High temperature valve mounting kit available for extended temperature range or wall mounting applications. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments.

Ball Valve Standard Features

1000 PSI working pressure
Full port design
stainless steel body 304 or 316, ball and stem
Four ball seat design allows for full pressure at any port
PTFE ball seats for extend cycle life
Triple PTFE/Viton stem seal design, live loaded and adjustable
Valve direct mounts to actuator per ISO5211

Pneumatic Actuator Standard Features
Extended cycle life (1 million cycles)
Rack & pinion design
Highly visible valve position indicator
Dry or lubricated pilot air
Factory lubricated for normal life
Anodized aluminum body with epoxy-polyester covers
Namur & ISO mounting
