Specifications

MOQ :

1

Connection Form :

Flange

Channel Type :

Straight Through

Valve Structure :

Floating Ball

Material :

SS304/SS316

Port Design :

Full Port

Pressure Rating :

1000 PSI WOG

Operating Pressure :

60-90 PSI

Seat Material :

PTFE

Gasket Material :

PTFE FDA 177.2600

Ball Material :

SS316

Actuation Time :

<1 second at 80 PSI

Cycle Life :

100,000+ cycles

Size Range :

1 inch-12 inch

Actuation Type :

Pneumatic

Position Indicator :

Visual

Description

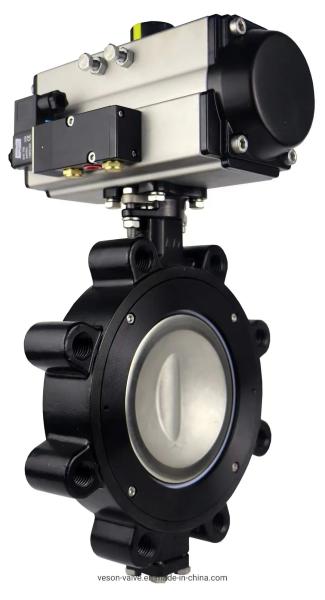

Pneumatic Butterfly Valves
Veson heavy duty sanitary pneumatic butterfly valves are an excellent solution as an on-off service, or for flow control. Air pressure actuation is used to open and close the valve. Additional features include:
Stainless steel SS304 Valve & Body
Fireproof
Long Life Span
Maintenance-free Pneumatic Mechanism
Normal closing / opening time at 80 PSI is less than 1 second
Tested at over 100,000 cycles
Visual Indicator to show valve position
Also available in air/air
Suitable for normal and closed applications
Pneumatic Ball Valves
Veson heavy duty pneumatic ball valves are excellent solution as an on-off service, or for flow control. Air pressure actuation is used to open and close the valve. Additional features include:
Precision 2-way Pneumatic Encapsulated Ball Valve
Encapsulated PTFE seats and Tri Clamp connection
In-line designed for maximum flow capacity
Valves may be installed at any position
SS316 stainless steel ball
PTFE Gasket Complies to PTFE FDA 177.2600
Full Port Design
Rated to 1,000 PSI WOG
Completely Rebuildable
60-90 PSI Operating range
