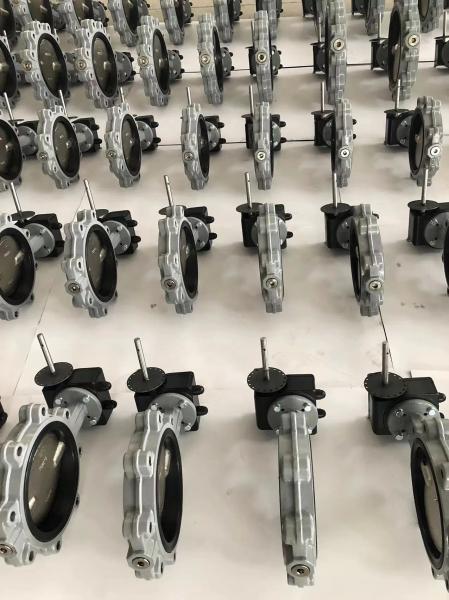

Lug Type 150lb Butterfly Valve with Aluminum Bronze Disc for sale

MachineU > China Products > Tools & Hardware

Specifications

MOQ :

Connection Form :

Lug Support

Body Material :

Ductile iron, ASTM A536

Disc Material :

Aluminum bronze, ASTM B148, ALY.954

Liner Material :

Nitrile Rubber

Bushing Material :

PTFE

Stem Material :

Stainless steel

Actuator Material :

ASTM303 stainless steel

Actuator Finish :

Electro-polish

Actuator Design :

Dual piston rack and pinion

Mounting Standard :

ISO 5211, DIN 3337, NAMUR

Travel Adjustment :

+5° at open/close

Fastener Material :

Stainless steel

Pressure Rating :

150lb

Valve Type :

Butterfly

Actuator Type :

Pneumatic

Description

The VS Series of stainless steel pneumatic electric actuators are the perfect solution for wash-down applications. The electro-polish finish offers excellent resistance to most corrosive chemicals and industrial atmospheres. The SP features dual piston rack and pinion design for compact construction, symmetric mounting position, high-cycle life and fast operation. Available in Double Acting or Spring Return (fail-open or fail-closed).

Design Features:
ASTM303 stainless steel with electro-polish finish
Dual piston rack and pinion design for compact construction, symmetric mounting position, high-cycle life, and fast operation.
Stainless steel fasteners for long-term corrosion resistance
ISO 5211 direct mounting, DIN 3337
NAMUR standard for mounting solenoids, limit switches and other accessories
Multiple bearings and guides on rack and pistons, low friction, high cycle life, and prevent shaft blowout.
The two independent external travel stop adjustment bolts can adjust +5° at both open and close directions.
Construction
- Nitrile Rubber liner
- Ductile iron body, ASTM A536
- Aluminum bronze disc, ASTM B148, ALY.954
- PTFE bushing
- Stainless steel top and bottom stems
