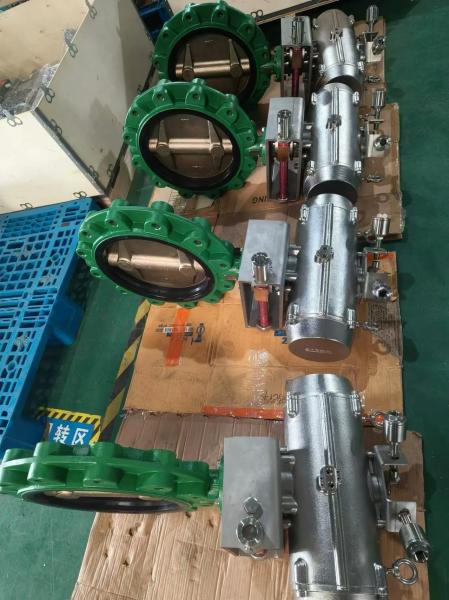

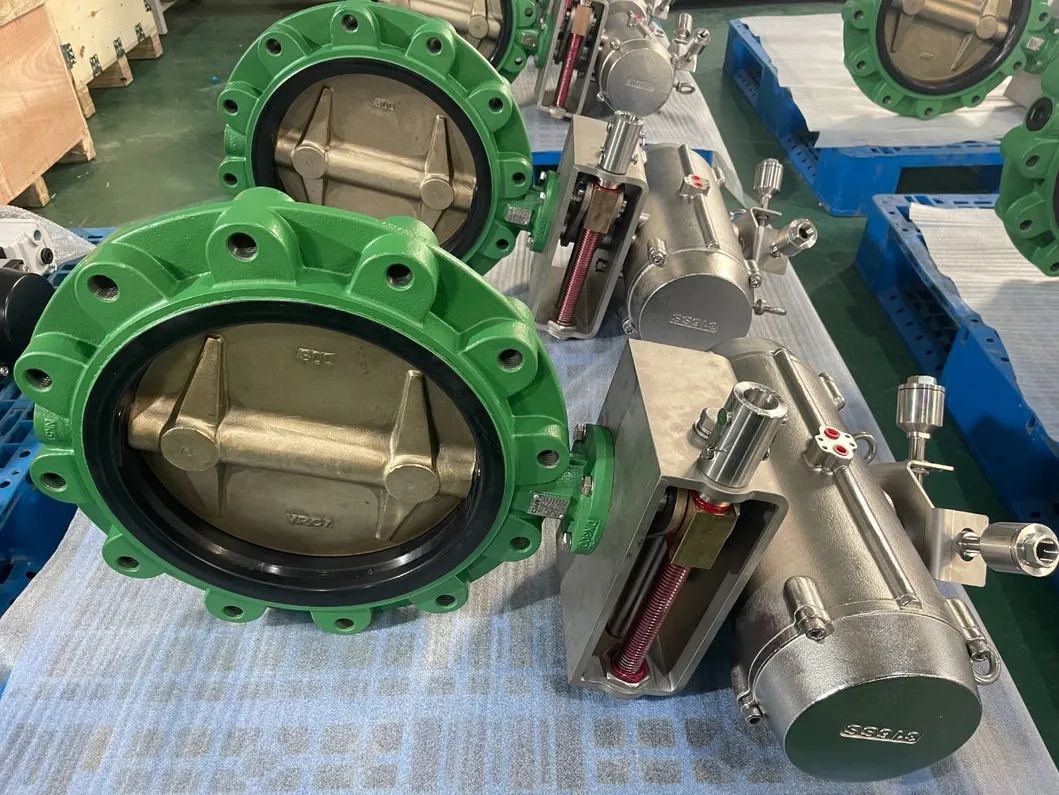

Pneumatic Lug Butterfly Valve Aluminum Bronze EPDM Seal 2-24 Inch

Specifications

MOQ :

Connection Form :

Lug Support

Structure :

Centre Sealing

Seal Form :

EPDM

Valve Stem :

Normal

Work Pressure :

Mid-Pressure (2.5mpa< Pn <6.4mpa)

Working Temperature :

Normal Temperature (-40°C

Seal Surface Material :

Soft Sealed

Valve Body :

Casting

Valve Size :

1-1/2"~40" (DN15~DN1000)

Body Material :

FC, FCD, WCB, CF8, CF8M

Disc Material :

FCD, WCB, CF8, CF8M, CF3M

Seat Material :

EPDM, NBR etc

Rating :

PN10, PN16, ANSI: 150#, 300#

Connection :

Wafer, Lug, Flange

Specification :

2 inch-24 inch

Description

VS series pneumatic actuated butterfly valve:
Driving: Pneumatic Actuator
Valve: Center line-type butterfly valve
Valve Size: 1-1/2"~40" (DN15~DN1000)
Body Material: FC, FCD, WCB, CF8, CF8M
Disc Material: FCD, WCB, CF8, CF8M, CF3M
Seat Material: EPDM, NBR etc
Rating: PN10, PN16, ANSI: 150#, 300#
Connection: Wafer, Lug, Flange
